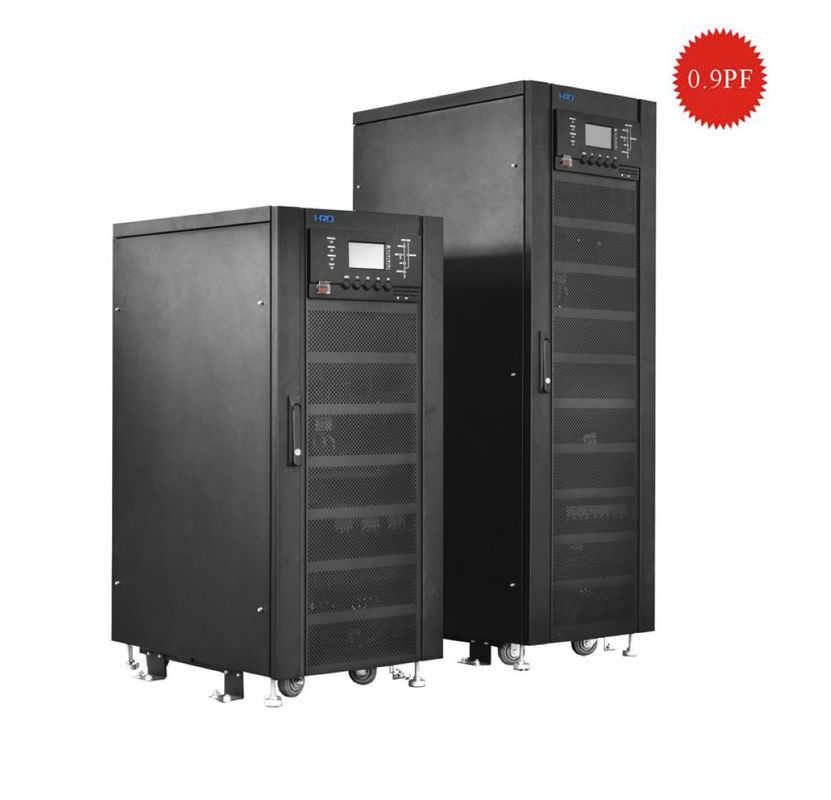

PWA 208vac Online High Frequency Ups 30kva With Energy Saving For ISP

PWA -X SERIES  208/220vac Online High Frequency Ups 30kva With Energy Saving For ISP

Quick Detail:

1) Features: complete digital control technology

2)High input power factor, green and energy-saving

3)Cold start and Mains start Function

POWERWELL (America) seriesOnline HF UPS 10-40kva,3-3phase 190vac / 208vac / 220Vac ;

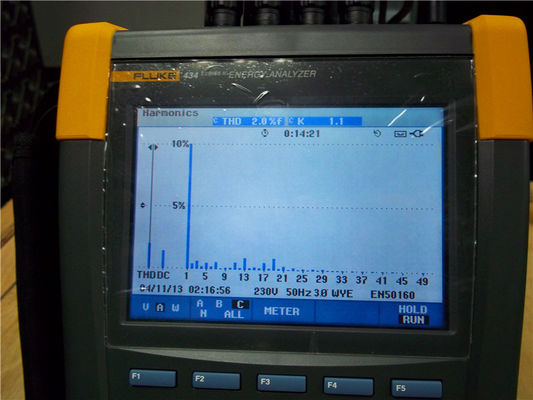

PWA  series 3 phase 10-60kva is a high end uninterruptible power supply, which has adopted  the world leading electrical and electronic technology to increase performance and  super high reliability(MTBT>200,000h).3nos high speed DSPs with completed digital control fully  ensure highest quality of power supply and UPS reliabitly. Being kin to 1.0 input power factor and less than 2% THDi lead this UPS green and energy saving. It also offers humanization design: full front access of service ability, user- friendly touch screen.

Perfect Applications:

Application: ISP(Internet Service Provider),IDC(Internet Data Center),computing center,bank,server center,precise equipment and etc.

Perfect Applications:

Internet Servor ,Internet Data Center), Medium-scale network system / computingcenter, bank and securities, business server group, Medium-scale office automation,precision equipment, etc.

Features: complete digital control technology

Fully digital control with two DSPs, all the subsystems are digital controlled including the IGBT rectifier, inverter, charger, discharger.

Excellent electrical properties

True online double conversion instruction offers the safe and effective power protection for various loads, with strong output load capacity;

High input power factor, green and energy-saving

Input end with PFC and input PF of the whole UPS up to 0.99;

Strong environmental adaptability

Wide input voltage and frequency range, adaptation to all kinds of climatic

and geographical environment;

Comprehensive protection measures

 Surge Protection, short circuit protection, and other protection to ensure the reliability of UPS;

IGBT and SCR adopts the advanced EUPEC power module;

The adoption of advanced technology (IGBT driving technology, IGBT soft over-current shutdown) improves the reliability and safety of inverter.

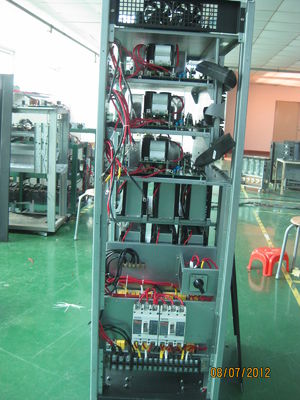

Similar modular design

Each phase main board are designed like rack  for easy assembling and maintenance

Intelligent battery management

Adopting the intelligent battery management, prolonging the using life

of battery,decrease the maintaining work;

The max battery charging current can set by end users according to the

battery features, to avoid any damage caused by the big charging current;

Periodic self-test battery, detecting the battery problems timely;

With battery over voltage / current protection, to protect the battery;

Cold start and Mains start Function

Directly start the UPS through battery or start UPS through Mains only.

Superior network monitoring capabilities

Communication port (RS232, USB, and so on) connecting with computer,SNMP card optional,

Easy-maintenance design

a) Adopts the full front maintenance design, reducing the restrictions

on the installation space, and saving the space of computing center;

b)Modular design class, convenient and easy site maintenance;

c) With manual maintain bypass,

d)Battery replacement without disrupting the UPS running;

e) Historical records search function, events up to1,000 items;

Friendly interface

 LargeLCD display and LED status indication; Abundant information display of UPS;

Technical Specifications:
