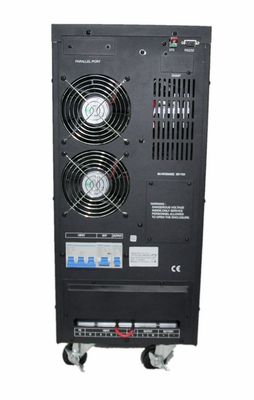

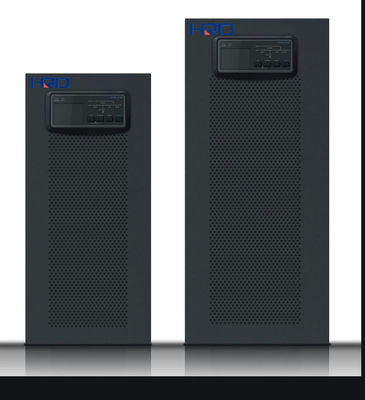

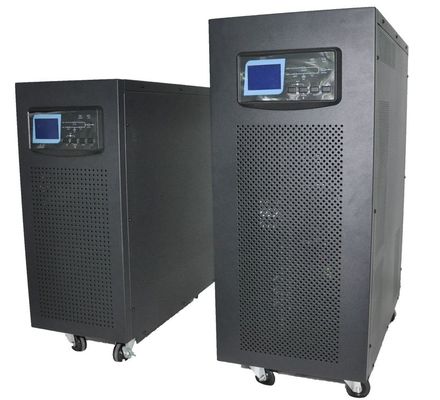

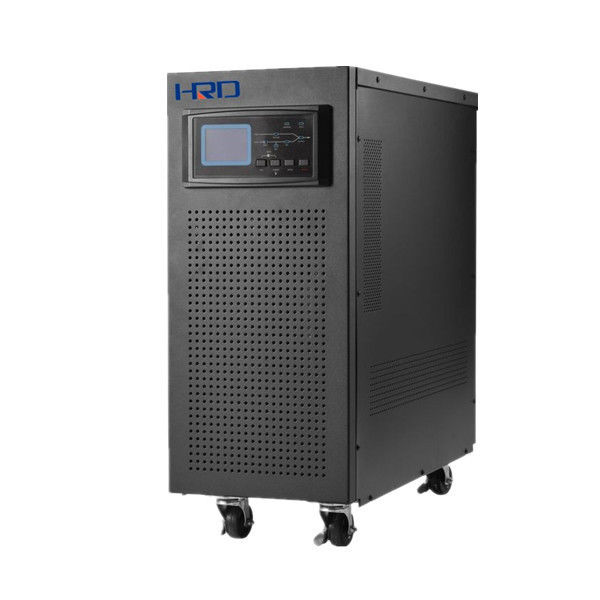

PCA Dsp 2 Phase Online High Frequency Ups With Transformer 120vac

PCA Dsp 2 Phase Online High Frequency Ups With Transformer 120vac
PCA Dsp 2 Phase Online High Frequency Ups With Transformer 120vac PCA Dsp 2 Phase Online High Frequency Ups With Transformer 120vac PCA Dsp 2 Phase Online High Frequency Ups With Transformer 120vac PCA Dsp 2 Phase Online High Frequency Ups With Transformer 120vac

Large Image :  PCA Dsp 2 Phase Online High Frequency Ups With Transformer 120vac

Product Details:
Place of Origin: Shenzhen,China
Brand Name: OEM/ODM
Certification: CE
Model Number: PCA206S
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: 1000-1800usd/pcs
Packaging Details: STANDARD PACKING
Delivery Time: 15-20DAYS
Payment Terms: TT/ OR L/C at sight
Supply Ability: 200pcs/WEEK
Price Term: Fobshenzhen
warranty: 1.5years with 2%pcb with consigment
Detailed Product Description
High Light:

online power supply

,

online uninterruptible power supply

PCA Dsp 2 Phase Online High Frequency Ups 6 Kva With Transformer 120vac

Quick Detail:

1)Phase:two Phase
2)High Frequency and online double conversion
3) Rated voltage:110/120/127Vac or 200/208/220vac(2Lines+N)

It is DSP controlled updated Online HF UPS, Specially for 110V/120V, 127V power grid net.
Perfect Application:
Network, data centre, servers and workstations, office etc.
Main Features:
1)High Frequency and online double conversion
2) Fully digitized control technology
3) Output 110/120/127vac or 200vac/208vac and 220vac 60hz and PF 0.8
4)Large LCD display with abundant information
5) Cold start and AC start
6) Environment protection
7) N+1 redundancy parallel technology (Max.6units)
8) Compact design and low noise
9) Wide input range(Voltage and frequency)
10)4 levels fan speed varies according to load automatically
11) Lightening and Surge protection 1050J
12) Smart RS232(, USB, SNMP card optional)
13)Event record function, 100events


Model

PCA206S

PCA206L

PCA208L

PCA210L

PCA212L

Capacity

6KVA/4.8KW

8KVA/6.4KW

10KVA/8KW

12KVA/9.6KW

INPUT



Phase

2Lines

Power factor

Above 0.98

THDi

< 5%

Voltage range

135-265Vac

Frequency range

40-70Hz

BATTERY



Charging voltage

275VDC

Recharging current

1A

4A

BATTERY TYPE

Free Maintenance Lead-Acid battery

BATTERY CAPACITY

20pcs 12v*7ah

External battery

OUTPUT



Output PF

0.8

Rated voltage

110/120/127Vac or 200/208/220vac(2Lines+N)

Output Frequency

50/60Hz+/-4Hz (Line mode) ;50/60Hz ± 0.1Hz ( Battery mode)

Voltage stability

Within 1%(static load)

Crest factor

3:1

Wave distortion

Linear load <3%, Nonlinear load <5%

Over load ability

105%<load<125% for 1 mins , 25%<load<150% for30sec

Transfer time

AC to Batt. mode

Zero

Inv. to bypass

Zero

Alarm

AC abnormal

Alarm every 4 seconds

Battery low

Keep alarm every 1 second

Overload

Keep alarm every 1 second

Fault

Continuously sounding

LCD Display

UPS status, Load level, Battery level, Input/Output voltage, output current, Bus voltage, Temp, and warning and fault code and events

SYSTEM



Efficiency

AC above88%(full load), battery mode 87%(full load)

Protection

Output short circuit, Overload, Output low voltage, Battery low voltage, Over-temperature, etc

communication

RS232(Standard), USB and SNMP card(optional)

Working Temp.

0~40℃

Relative humidity

0~90%( Non-condensing)

Cooling

Intelligent 4 level auto speed-control Fan according to load

Input & output

Terminals

Surge protection

IEC60664—1 Graded protection

Physical

Weight(N/G)KG

90/105

50/65

60/75

Unit(W*H*D)

260*742*582mm

290*742*600mm

Packing( W*H*D )

370 *892 *682mm

390*910*700mm
