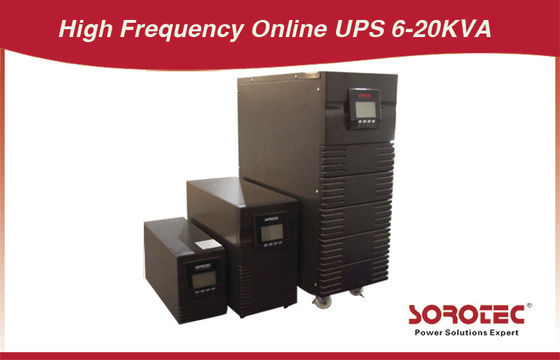

RS232 interface 0.7 1ph in / out 110V UPS 10KVA / 8000W with bypass repair switch

Large Image : RS232 interface 0.7 1ph in / out 110V UPS 10KVA / 8000W with bypass repair switch

Product Details:

Place of Origin:	China
Brand Name:	SOROTEC
Certification:	CE,ROHS,ISO9000
Model Number:	HP9116B 6-10KVA

Payment & Shipping Terms:

Minimum Order Quantity:	USD10000
Packaging Details:	Standard Exported Cartons and Pallets
Delivery Time:	Within 15-30days after receiving your 30% TT deposit
Payment Terms:	30% TT in advance, the balance before shipping
Supply Ability:	10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Contact Now

Detailed Product Description

Rated Voltage:	200/208VAC	Frequency:	50/60 Hz
Voltage Range:	176～279VAC(±3VAC)	Frequency Range:	50HZ:(46～54HZ); 60HZ:(56HZ～64HZ)
Power Factor:	0.98	Voltage Regulation:	200/208X (1±2%)VAC
Frequency Regulation:	50/60 Hz±0.05Hz	Power Factor:	0.7/0.8(Optional) Standard 0.7
High Light:	110v step up transformer , step up transformer 110v

RS232 interface 0.7 1ph in / out 110V UPS 10KVA / 8000W with bypass repair switch

Key Features:
1.Widely used to computer equipments, telecommunication systems and Industrial automatic control equipments.

2.Truly online design, different from offline, it can adjust the input voltage, filtering, when the AC break off, the UPS will provide an uninterruptible power source from the backup batteries.

3.Large blue back light LCD for detailed Real-time UPS status display.

4.Advanced online pure sine wave power supply system, with bypass repair switch, It can
provide a reliable, high quality AC power source to the precision equipments, can be used widely in different fields.

5.UPS will change to bypass mode when overloading or inverter fault, when overloading remove, UPS will turn to inverter mode automatically.

6.N+N Parallel Redundancy and Capacity expansion for 6-20K(up to three units)

Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…

Model		HP9116B 6-10KVA
		6KT	6KT-XL	10KT	10KT-XL
Rated Power		6KVA/4800W		10KVA/8000W
Rated Voltage		200/208VAC
Frequency		50/60 Hz
Input
Voltage Range		176～279VAC(±3VAC)
Frequency Range		50HZ:(46～54HZ); 60HZ:(56HZ～64HZ)
Power Factor		0.98
Output
Voltage Regulation		200/208X (1±2%)VAC
Frequency Regulation		50/60 Hz±0.05Hz
Power factor		0.7/0.8(Optional) Standard 0.7
Voltage distortion		Linear load<3% Non-linear load<6%
Overload Capability		110%～150% for 30s change to bypass model, Recover after load normal
Current Crest Ratio		3;1
Transfer time		0ms(AC mode→ Battery mode)
Battery
DC Voltage		240VDC
Recharge Time		7hrs to 90% of capacity after full load discharge
Recharge Current		2A	4.2A	2A	4.2A
Display
LCD		Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Communication
Interface		Smart RS232, SNMP card (optional), USB(optional)
Environment
Operation Temperature		0～40℃
Humidity		0～95% non-condensing
Storage Temperature		-25℃～55℃
Sea level elevation		<1500m
Noise Level(1m)		＜55dB
Physical Characteristic
Wright(KG)	N.W.	81	35.5	84	36
	G.W.	89	39.5	91	42
Dimension(D x W x H)mm		570 X260 X717
