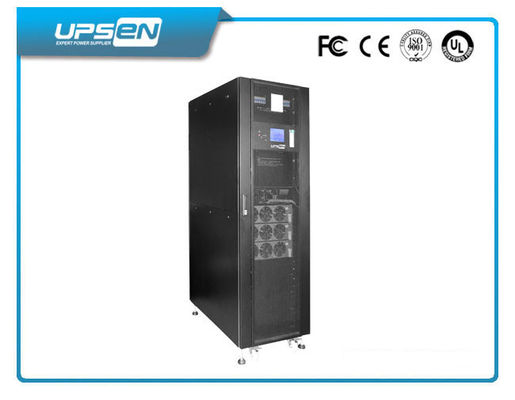

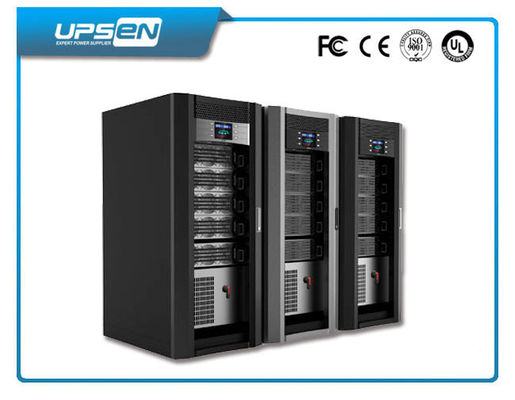

High Frequency Pure Sine Wave 380V / 400V / 415VAC Modular UPS Power Supply with Low Noise

High Frequency Pure Sine Wave 380V / 400V / 415VAC Modular UPS Power Supply with Low Noise
High Frequency Pure Sine Wave 380V / 400V / 415VAC Modular UPS Power Supply with Low Noise High Frequency Pure Sine Wave 380V / 400V / 415VAC Modular UPS Power Supply with Low Noise

Large Image :  High Frequency Pure Sine Wave 380V / 400V / 415VAC Modular UPS Power Supply with Low Noise

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Modular Star Series 10-200Kva
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Cartons & Wooden Pallet
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Modular Online Output Power Factor: 0.8
Phase: Three Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

military uninterruptible power supply

,

office ups system



High Frequency Pure Sine Wave 380V / 400V / 415VAC Modular UPS Power Supply with Low Noise

Model: Modular Online UPS Power Melody Star Series (3ph in/3ph out)

Modular UPS Quick View

1: UPS with 3 Phase 208vac 220Vac or 380Vac 400Vac 415Vac Input and Output

2: UPS with high frequency tech and double conversion design

3: Modular UPS with

4: Strong load adaptability for linear and nonlinear load

5: Modular UPS with pure sine waveform and stable output


Key Features

● UPS with Modular design and hot swappable.
● Double DSP controller for individual power module.
● Strong load adaptability for linear and nonlinear load.
● Large touch screen LCD with plenty of information.

● IGBT modules rather than discrete components are applied in the power module.
● Intelligent module and system protection design.
● Independent charger for batteries, intelligent battery management system.
● Totally front access, top and bottom cable connection.
● Inbuilt power distribution for input and output connection.
● Incredible low noise system design.
● Digital paralleling technology, very low circle current between modules.
● Digital control for the whole parts including rectifier, inverter, charger and discharger.
● Each individual module is configured with independent controller, avoid single point failure risk.




MS Series 10K-200Kva

Capacity

10-200KVA

Main Input

Input voltage

380V/400V/415V(line to line)

Input frequency

50/60Hz

Power factor

> 0.99

Input cuurent THD(Total Harmonic Distortion)

< 3%

Input voltage window

-40%~+25%

Frequency window

40-70HZ

Battery

Battery voltage

± 240VDC

Charger power

20%*Power

Charger voltage precision

1%

Bypass

Bypass voltage

380V/400V/415V, three phase

Bypass voltage window

-20%-+15%, full load, settable

Bypass overload capabiltiy

150%, long time operation

180%, shut down after 10 minutes

> 180%, shut down after 200ms

Output

Output voltage

380V/400V/415V, three phase

Voltage precision

± 0.5% (balance load), ± 1% (unbalance load)

Voltage THD(Total Harmonic Distortion)

THD< 1%(linear load), THD< 3%(nonlinear load)

Power factor

0.8

Phase tolerance

120° ± 0.5° (balance and unalance load)

Crest factor

3: 1

Overload capabiltiy

110%, transfer to bypass after 1hour

125%, transfer to bypass after 10 minutes

150%, transfer to bypass after 1 minute

> 150%, transfer to bypass after 200ms

System

System efficiency

Normal mode: 95%

ECO mode: 99%

Battery mode efficiency

95%

Display

LCD+LED, Touch screen and keyboard

IP class

IP20

Interface (Communication Ports )

RS232, RS485, Dry contacts, SNMP card, EPO, Generator interface

Installation/Connection

Top or bottom cable connection

Operation temperature

0-40C

Storage temperature

-25~70C

Relative humidity

0-95% (non-comdensing)

Noise(dB)

< 55dB

Weight(KG)

6-module cabinet

150KG

10-module cabinet

180KG

Module

10KVA: 20KG

15KVA: 21KG

20KVA: 22KG

Dimension(W*D*H)(mm)

6-module cabinet

600*900*1600

10-module cabinet

600*900*2000

Module

400*600*133 (10KVA/15KVA/20KVA)



Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
