Product Details:
Payment & Shipping Terms:
|
Rated Frequency: | 50/60HZ | Voltage Range: | 380VAC±25% |
---|---|---|---|
Frequency Range: | 50/60HZ±5% | Wiring: | Twin- Channel Line Input |
THDI: | <3% | Power Factor: | >0.99 |
Current Crest Ratio: | 3:1 | ||
High Light: | 110v step up transformer,step up transformer 110v |

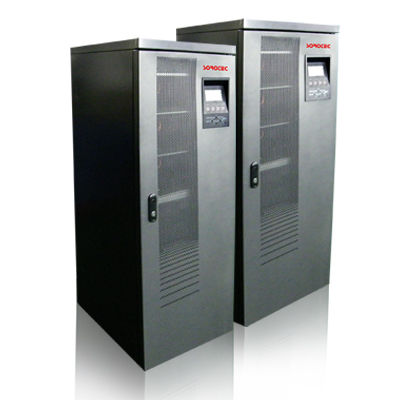

High frequency 3ph in / out 4 line 110V UPS HP9330C 208V Series 20KVA / 16KW
Key Features:
1.Connect up to 8 units in parallel for maximum flexibility (no parallel kit required), and compatible to battery share in the parallel mode, which helps the customers to extend the system capacity with lowcost.
2.Intelligent management of battery charging and discharging.
3.Twin-Chiannel line input.
4.Large LCD Graphical display panel, convenient for operation.
5.Large LCD Graphical display panel, convenient for operate
6.Advanced IGBT rectification, Input power factor: 0.99
7.Input current harmonic < 3%
8.The Efficiency of the machines is as high as 94%

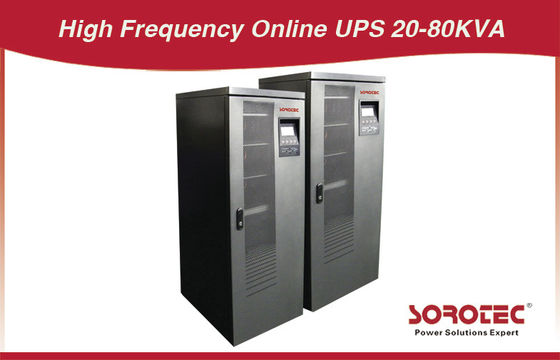

Technical Specifications of Online UPS HP9330C 208V 20-80KVA
Model |
HP9330C 20-80KVA |
||||||
20K |
20K-XL |
30K-XL |
40K-XL |
60K-XL |
80K-XL |
||
Rated Capacity |
20KVA/16KW |
30KVA/ |
40KVA/ |
60KVA/ |
80KVA/ |
||
Rated Voltage |
220VAC/208VAC Three-phase |
||||||
Rated Frequency |
50/60HZ |
||||||
Input |
|||||||
Voltage range |
380VAC±25% |
||||||
Frequency range |
50/60HZ±5% |
||||||
Wiring |
Twin- channel line input |
||||||
THDI |
<3% |
||||||
Power factor |
>0.99 |
||||||
Output |
|||||||
Voltage precision |
208VAC (±1%);Three-phase 4 |
||||||
Frequency precision |
50/60HZ±0.2% |
||||||
Power factor |
0.8 |
||||||
Current crest ratio |
3:1 | ||||||
Overload capacity |
≤110%for 60 minutes; |
||||||
Battery |
|||||||
Charging current |
0.5~4.5A(adjustable) |
||||||
Backup time |
7mins |
Determined by the amount |
|||||
Quantity |
28/30/32(selective); |
||||||
Efficiency
|
|||||||
Line mode/BAT mode |
94% |
||||||
ECO mode |
98% |
||||||
Indication |
|||||||
LCD |
I/O voltage, current, frequency, |
||||||
Communications |
|||||||
Communication |
RS232, AS400, RS485, Service, EPO, Intelligent Slot , SNMP(Option) |
||||||
Operation |
|||||||
Temperature |
0~40℃ |
||||||
Humidity |
0~95% (no dewfall) |
||||||
Storage temperature |
-25℃~55℃ |
||||||
Altitude(M) |
< elevation 1500m |
||||||
Weight |
|||||||
weight(KG) |
Net weight |
182.5 |
82 |
110 |
114 |
282 |
306 |
Gross |
204 |
122 |
160 |
164 |
356 |
380 |
|
Dimension |
420 X630 X1240 |
420 X630 X950 |
490 X680 X1180 |
600 X800 |
