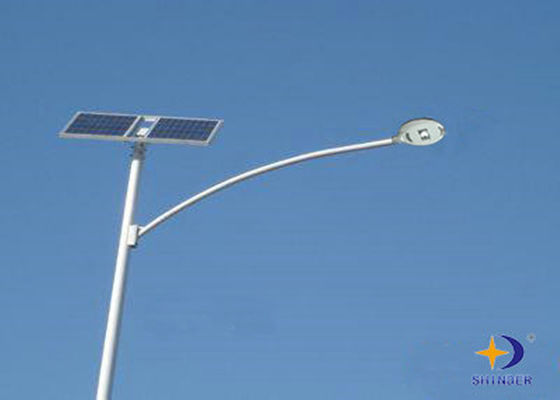

100 Watt LED Solar Street Lights With Beam Angle 0 - 90 Degree / White Pole

China 100 Watt LED Solar Street Lights With Beam Angle 0 - 90 Degree / White Pole supplier
100 Watt LED Solar Street Lights With Beam Angle 0 - 90 Degree / White Pole supplier 100 Watt LED Solar Street Lights With Beam Angle 0 - 90 Degree / White Pole supplier 100 Watt LED Solar Street Lights With Beam Angle 0 - 90 Degree / White Pole supplier

Large Image :  100 Watt LED Solar Street Lights With Beam Angle 0 - 90 Degree / White Pole

Product Details:

Place of Origin: China
Brand Name: shinder
Certification: CE ROHS
Model Number: SDZD803-100

Payment & Shipping Terms:

Minimum Order Quantity: 1piece
Packaging Details: 95.50*43.00*22.00 cm / 1 piece / 10.50 kg / CTN
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Model: Street Light SDZD803-100w Power: 100w
Voltage: 12-24v CCT(K): 4100
Uniformity: 0.45 PF: 0.73-0.92
Luminous Flux: 8500 Optional: 0-90 Degree
Height: 8m 9m

5 years warranty led solar street light 8m 9m height ip65 waterproof 100w solar street lighting



1)  Over 10 year experience in clean energy line, business covering solar street light, solar garden light, off grid solar system and on grid solar power system, etc;
2)  Exporting for worldwide, with satisfied clients more than 50 countries;
3)  Competitive price, excellent service, integrated certificate system



Specifications:

  • Light Source: LED
  • Item Type: Solar Street Lights
  • LED Light Source: lumileds luxeon rebel
  • Input Voltage(V): 12v-24v
  • Lamp Power(W): 120
  • Lamp Luminous Flux(lm): 8500
  • Lamp Luminous Efficiency(lm/w): 85
  • CRI (Ra>): 75
  • Color Temperature(CCT): Pure White
  • Working Temperature(℃): -40 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP65
  • Certification: CE, RoHS
  • Warranty(Year): 5
  • Place of Origin: Jiangsu, China (Mainland)

100 Watt LED Solar Street Lights With Beam Angle 0 - 90 Degree / White Pole



100 Watt LED Solar Street Lights With Beam Angle 0 - 90 Degree / White Pole



100 Watt LED Solar Street Lights With Beam Angle 0 - 90 Degree / White Pole



Features:



1.  Above system configurations are designed to allow the lamp to work for 10hrs per night, battery capacity with continuous 3 days backup. The configuration is based on scientific calculation and engineering project experience. For clients' specific project, please tell us the exact installation location and working hours, so that we can provide customized solution and quotation accordingly.



2. The batteries are suggested to be placed in a underground buried PVC battery box. In this way, it can avoid overhigh temperature due to sunshine exposure or too cold weather in Winter. It's wateproofand, heat-dissipative and theftproof, easy for replacement in late period.



3. The pole patterns are standardized practical model recommended by us. It can be customized with more patterns available according to clients specific requirement.



4. All Parts are CE/ROHS certified, with high quality level meeting European standards.



5. Please contact us for more detailed technical specification of each part of the system, which can be sent upon client's email request.



Model  SDZD803-100w
Voltage 12v-24v
Power 120w
PF 0.73-0.92
Luminous Flux 8500lm
Uniformity 0.45
CCT 4100K
Optional  0-90 degree
Operation Temp -20-50
Height Illuminance Valide Range
9m 26.40Lux 9*37.80
10m 21.40Lux 10*42.00
Product Size 80*35*18cm
Packig Size 95.5*43*22cm/pc/ctn
G.W/N.W 10.5/10KG





Description



Stainless steel parts: Endurancing the corrosion of air, water, chemical acid, alkaline,salt and other materials, can be used in all kinds of harsh conditions for long term.

IP65 waterproof structure:Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.

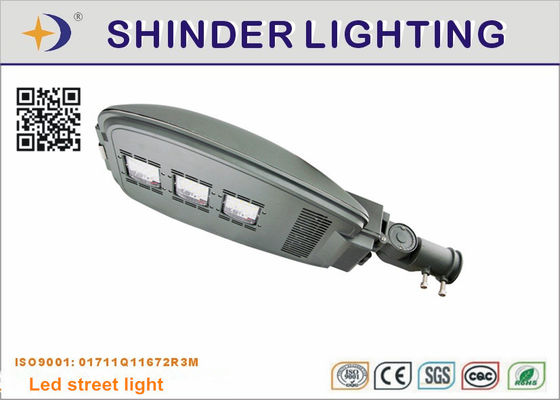

Led chip: LUXEON® Rebel ES gives you the flexibility you need for designing luminaires and lamps.Tested and binned at 700 mA, confidently design LUXEON Rebel ES into high lumen applications or create more energy efficient devices using the same designers count on LUXEON Rebel ES for quality, realiablity and in-device performance.



Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.

Lifespan: solar street light has 50000 hours lifespan for using.



Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process.

Warranty:we offers 3-years product warranty for all products. If you need 5-years warranty for this wattage product, please contact us directly.



Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.9 and power efficient > 90% characteristic to ensure power saving.

Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.



Working Princple:

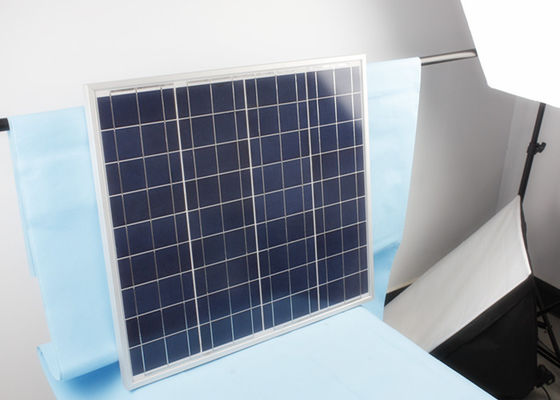

The solar street light relies on solar energy, which is clean, endless and environment-friendly. The system is mainly composed of solar panel, light source, controller and battery. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloudy condition, the battery shall supply power for normal lighting. The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action.



Applications


Solar StreetLights are widely used for Arterial road,Branch road,Factories,schools,gardens,city squares and so on.


Competitive Advantage



  1. Long warranty time: 3 Years Guarantee.
  2.  Super bright: >100 lm/w.
  3. Energy saving: save 75% energy than the traditional street light.
  4. Enviromental Protection:No IR or UV.
  5. Excellent heat Dissipation, No Flashing, No Noise.



Our service :

  1. Good after-sale service
  2. Well-trained & experienced sales can reply your inquiries in English.
  3. ON line with 24 hours
  4. Your business relationship with us will be confidential to any third party.
  5. Best price with good-quality
  6. Your inquiry will be replied within 24 hours.



FAQ



Q: Required mainly certificates (CE&IEC/TUV/RoHS)?

A: Our products are certificated by CE RoHS,CCC,LVD,EMC .ETC.

Q: How many employees in your company?

A: We have about 150-180 employees,including office staff,R&D engineer, production line

Q: Your main export market?

A: The main market of our product is :Europe and  Africa,Southeast Asia,South America,Eastern Asia,Northern Europe Southern Europe,North America,Western Europe,Eastern Europe

Q: Are you manufacturer or trading company?

A: We are  manufacturer and we have our own trading company,big production capacity.

Q: Your main product produced?

A: Lamps:Metal Halide Lamps,ARC TUBE(MH),High Pressure Sodium Lamps,MERCURY LAMPS;LED section:LED street light,LED floodlight, Various related with LED lamps and lanterns.
