Product Details:
Payment & Shipping Terms:
|
| Opening/closing Time: | 1.8s | Life Cype: | More Than 5 Million Times |
|---|---|---|---|
| Color: | Customizable | Motor Type: | Torque |
| Controller: | Microprocessor Type | Support: | Loop Detector, IR Sensor, Traffic Indicator |
| Service: | OEM/ODM Available | ||
| High Light: | car park barrier,automatic parking barrier |
||
User manual for toll gate.pdf, Catalogue-Toll Gate SJSPD003.pdf

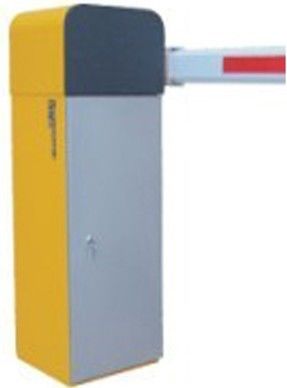

AC 230V / 110V 1.8s Highway Steel Automatic Traffic Barrier Gate, Car Park Road Barrier
Description:
SJSPD003C employs special torque motor and master controller with high integration and stong logic function. Multiple working modes to meet different demands and several interfaces for external device.
Applications:
Highway
Airport
Bus station
Supermarket
Army
And other places with heavy traffic flow
Specifications:
|
Supply Voltage |
AC230V or AC110V |
|
Power Frequency |
50/60Hz |
|
Rated Power |
80 W |
|
Rated Speed |
15r/min |
|
Rated Torque |
24N. m |
|
Standard Lever Length |
<=4.0m straight lever |
|
Noise |
<=60dB |
|
Rising/Falling Time |
1.8s |
|
Service Life |
more than 5 million times |
|
Error action |
<=0.01% |
Competitive Advantages:

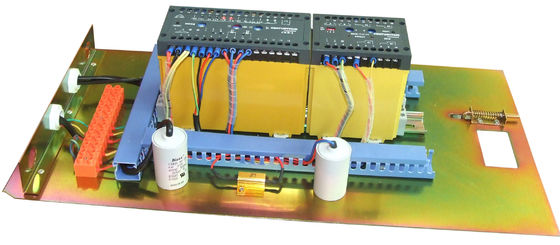

1. The master controller employs the hi-reliable microprocessor
a. high integration and strong logic function
b. multiple operation modes available
c. several interfaces for external devices available
2. The core technology employs the special AC220V torque motor
a. maintenance-free motor, work normally under extremely climates
b. use sine generator to reduce mechanical failure greatly
c. power protection in case of instant heavy current, voltage fluctuation
3. All-round safety protection
a. collision prevention
b. LED traffic signal (optional)
c. infrared ray protection (optional)
d. remote control (optional)
e. falling protection (optional)
Additional Information:
Package: export standard wood carton
Delivery date: 7-10 days after payment confirmed
Payment terms: 50% T/T in advance, the balance 50% paid before shipment
Approval: CE, CCC
Factory support : ISO 9001: 2008
OEM/ ODM service acceptable
