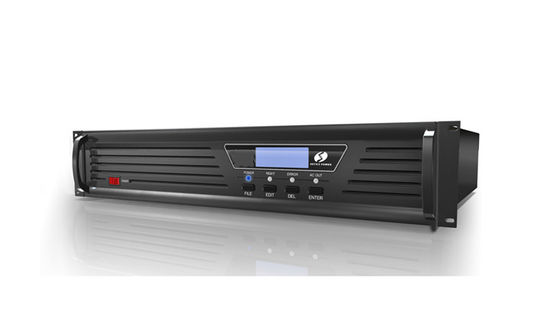

48Vdc or 110vdc / 220vdc Pure Sine Wave Rack Mount Electric Inverter 3 4 5kva

Capacity

3KVA

4KVA

5KVA

Operation mode

Inverter /bypass

DC

INPUT

Rated voltage

48Vdc/110vdc / 220Vdc

Rated input current

68/33/16

90/44/21

118/55.6/26

Input Range

40-56Vdc or 90Vdc-132Vdc or 190Vdc-265Vdc

Working voltage range

42-54vdc or 94Vdc-127Vdc or 207Vdc-260Vdc

Anti-irrigation current

≤10%

AC

INPUT

BYPASS RANGE

220±10%

Input rated (A)

18.2

22.7

4.5

Transfer time (ms)

≤5ms

AC OUTPUT

PF

0.8

RATED  CAPACITY

3000VA

4000VA

5000VA

RATED OUTPUT POWER

2400W

3200W

4000W

VOLTAGE AND FREQUENCY

220Vac,50/60Hz

Wave

Pure sine wave

Rated current

14.5 A

15.9 A

3.6 A

Voltage accuracy

220 V±1%

Frequency accuracy

50/60Hz±0.1%

THDv

≤3%

Dynamic response time

5%

Over load

120%,30s

Inverter efficiency

≥85%

Operation enviro-ment

Insulation level

Input and output 1500Vac,1min

Noise (1m)

≤40dB

Temperature

-25℃~+50℃

Humidity

0~95%,non-condensing

altitude(m)

≤1500

Cooling

Forced air

Man-machineInterface

LEDand LCD

Communication

RS232(optional )

Interfcace

Dry contact

2ways

Protections

High,low  voltage of DC ；overload ,short;High,low  voltage of AC input

Input output type

                    Terminals

Dimension (w*d*h)

482*387*88mm

Weight

12KG

14KG

16KG
