380V/3 Phase Solar Water Pump DC/AC inverter irrigate pumping system

Detailed Product Description
High Light:

pumping

,

pump system

,

inverter

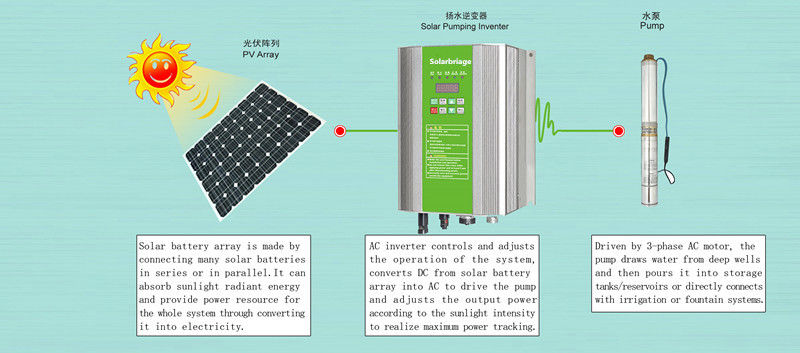

Solar water pump system for home & irrigation

1. New type of solar power generator without battery

2. Don’t use the battery for whole system, which can decrease the cost of use and maintenance

3. Increase the efficiency of solar power generator, the efficiency can reach 98% up.

4. Use the MPPT technology, can adjust the power of pump according to the sunlight strength.

5. The working time can reach 7-10 hours (the working time will be effective by radiation strength at local).

Household solar water pumping system

ModelB60-60B80-60
Lift60M60M
Input Voltage24V24V
Size1100*76mm1150*76mm
Intake76mm76mm
Outlet32mm32mm
Flow10L/min40L/min
Rotation Speed18000/rpm18000/rpm
Cable length5M5M
Protechtion ClassIP68IP68

Agricultural solar water pumping system

380V Three Phase Solar water pump system

Pump power(KW)Solar panel power(W)Inverter(KW)Flow(M³)/h/Lift(M)
1.522501.53M³/h/88M, 4M³/h/80M, 5M³/h/52M
2.233002.23M³/h/136M, 4M³/h/100M, 5M³/h/53M
345003.73M³/h/167M, 4M³/h/140M, 5M³/h/100M
4600043M³/h/200M, 4M³/h/180M, 5M³/h/120M
5.582505.53M³/h/280M, 4M³/h/255M, 5M³/h/200M
7.5112507.53M³/h/398M, 4M³/h/340M, 5M³/h/268M


220V Single Phase solar water pump system

Pump power(KW)Solar panel power(W)Inverter(KW)Flow(M³)/h/Lift(M)
0.375550.41M³/h/47M, 1.5M³/h/43M, 2.1M³/h/34M
0.558250.753M³/h/38M, 4M³/h/32M, 5M³/h/25M
0.7511250.753M³/h/55M, 4M³/h/48M, 5M³/h/36M
1.116501.13M³/h/67M, 4M³/h/60M, 5M³/h/40M
1.522501.53M³/h/88M, 4M³/h/80M, 5M³/h/52M
2.233002.23M³/h/108M, 4M³/h/92M, 5M³/h/83M

Solar street light system

SpecificationSolar PanelControllerLED lamp
4M solar street lamp60W12V/5A15W
6M solar street lamp100W12V/10A30W
9M solar street lamp100W24V/10A60W

Advantage:

1. No line voltage, trenching, or metering

2. Immune to power outages

3. Battery backup for cloudy days

4. Distributed light and power – no single point of failure for enhanced security

5. Easy to install with quick connect plugs – less than 1 hour

6. No scheduled maintenance for up to five years

7. No cost of replacing concrete, asphalt or landscaping

8. No cost of transformers and meters to be added for electric service

9. No monthly electric bills

10. Controlled charging to prolong battery service life

11. Environmentally friendly-100% powered by the sun, solar panels reduce fossil fuel consumption, eliminating pollution

12. Self-contained solution - Light on/off controlled by automatic daylight sensing or hour preset, no running and maintenance cost

13. Better light source- LED lights feature cool white light without flickering and higher brightness than sodium lights

14. Safe 12 volt/24 volt circuit, no risk of electric shock

Other product:

♦ Solar panels

♦ Solar battery

♦ Charge controller

♦ Inverter

♦ LED light


Service:
Professional engineer offer customized solar pump system
Lifetime quality guarantee
