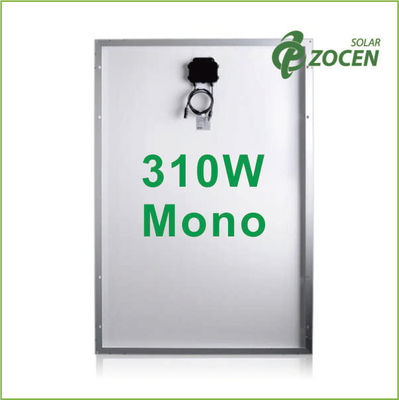

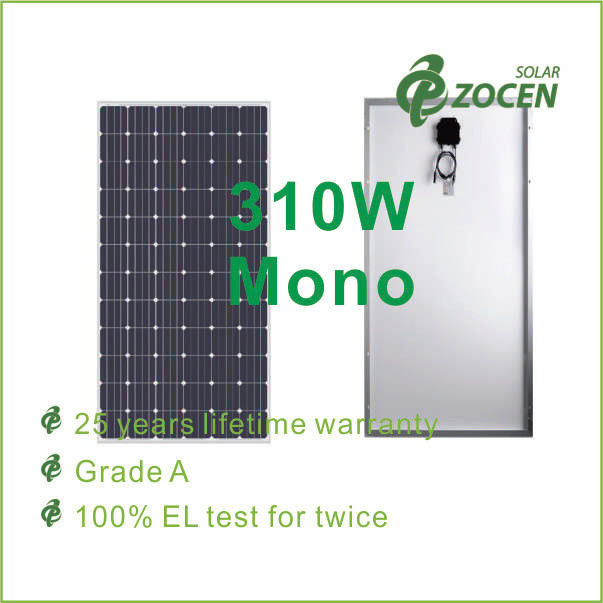

Single Crystalline Solar Panel , 310W Anti Reflective Glass Laminated

Single Crystalline Solar Panel , 310W Anti Reflective Glass Laminated
Single Crystalline Solar Panel , 310W Anti Reflective Glass Laminated Single Crystalline Solar Panel , 310W Anti Reflective Glass Laminated Single Crystalline Solar Panel , 310W Anti Reflective Glass Laminated

Large Image :  Single Crystalline Solar Panel , 310W Anti Reflective Glass Laminated

Product Details:
Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCM6-72P-310W
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 21pcs/pallet
Delivery Time: 5-10 days
Payment Terms: Ex works, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000pcs/month
Detailed Product Description
Maximum Power: 310W Power Tolerance: 0~+3%
Number Of Cells: 72pcs In A 6 *12 Module Efficiency: 15.98%
Voltage At Pmax: 37.10V Current At Pmax: 8.38A
Open Circuit Voltage: 45.5V Short-circuit Current: 8.78A
Max. Series Fuse Rating: 15A Limited Reverse Current: 15A
Operating Temperature: -40~ +85℃ Max. Hailstone Impact (diameter / Velocity ): 25mm / 2.3mm/s
Dimension: 1956*992*45mm Weight: 22.5kgs
High Light:

monocrystalline solar module

,

mono crystal solar panels





Single Crystalline Solar Panel , 310W Anti Reflective Glass Laminated



1> Quick Detail:

  • Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies
  • Maintain high power at high temperature

  • High average watts

  • Better low -light and spectral response

  • High perfromance, anti-reflectective glass

  • No light-induced degradation



2> Descriptions:

  • Product : 310W Monocrystalline solar panels / modules / photovoltaic solar panels / PV solar panels

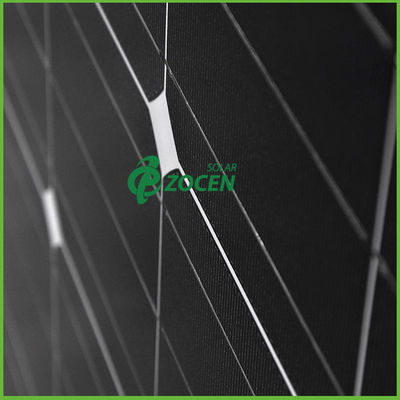

  • Solar cell: 156*156mm(6 inch) Mono-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance.
  • Tempered Glass: 3.2mm Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%
  • EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
  • Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water, it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.
  • Aluminum Frame: Anodized aluminum alloy to effectively improve the corrosion resistance and strength
  • Junction Box: 6pcs 12A Diode + 90cm 4mm2 Solar Cable
  • Life time: 25 years
  • Power specification at 1kW/m 2, AM 1, 5
  • Output cable: multi contact connectors
  • Warranty: 10years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25years.
  • Certificate: CE, CQC, IEC61525, IEC61730, TUV, CEC, MCS, CHUBB, BV, ISO9001



3> Features:

  • High Performance Solar Panel
  • Monocrystalline Cells
  • Low Reflection of Sunlight
  • High Light Absorption
  • Functions perfectly under low light or panel being partly shaded
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
  • CHUBB insurance company to guarantee the quality



4> Specifications

  • 310W Monocrystalline solar panel I-V Curves

Single Crystalline Solar Panel , 310W Anti Reflective Glass Laminated 0



  • 310W Monocrystalline solar panel Electrical Characteristics
Maximum Power(Pmax)
310
Power Tolerance
0~3%
Open Circuit Voltage(Voc)
45.50
Short Circuit Current(Isc)
8.78
Maximum Power Voltage(Vmp)
37.10
Maximum Power Voltage(Imp)
8.38
Module Efficiency
15.98%
Max. System Voltage
1000VDC
Solar Cells

Monocrystalline156*156mm(6 inch)

Cells series
72pcs(6*12)
Bypass Diodes
6pcs 12A
Temperature Coefficients of Pmax
-0.47%/°C
Temperature Coefficients of Voc
-0.35%/°C
Temperature Coefficients of Isc
0.05%/°C
NOTC-Nominal Operating Cell Tepm.
45℃(±2°C)
STC Condition
1000W/m2, AM1.5, 25°C





  • 310W Monocrystalline solar panel Mechanical Characteristics
Dimension
1956*992*45(mm)
Frame
Anodized Aluminum Alloy
Construction

Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA

Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm

Weight
22.5KGS







5> Quality Control

  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Manufacturing facility certifed to ISO9001 Quality Management System standards.
  • Module packaging optimized to protect product during transportation and minimize on-site waste.



5> What are solar panels?



Solar panels are devices that convert light into electricity. They are called "solar" panels because most of the time, the most powerful source of light available is the Sun, Sometimes they are called them photovoltaics which means, basically, "light-electricity."









6> Factory shop and Shipment



Single Crystalline Solar Panel , 310W Anti Reflective Glass Laminated 1









Single Crystalline Solar Panel , 310W Anti Reflective Glass Laminated 2
