Product Details:
|
| High Light: | solar panel,mono solar panel,90W mono solar panel |
||
|---|---|---|---|
| Place of Origin | Guangdong, China (Mainland) |
|---|---|
| Brand Name | Anysolar |
| Model Number | HNT90W-M |
| Type | Solar Panel |
| Solar cells | Monocrystalline |
| Size | 1206*535*35mm |
| Number of cells | 36pcs |
| Max.Power | 90W |
| Tolerance | +/-3% |
| Lifespan | 25 years |
| Warranty | 5 years |
| Convertion efficiency | 15%-17.5% |
| Back cover | UV resistant Tedlar |
| Front cover | 3.2mm low-iron glass |
| Price: | FOB USD 0.6~1.2 / Watt Get Latest Price |
|---|---|
| Minimum Order Quantity: | 1 Set/Sets |
| Port: | Shenzhen |
| Packaging Details: | Standard exporting package: 1pc/1 inner box, 10pcs/carton; 980pcs/20ft container; 2100pcs for 40ft container; |
| Delivery Time: | 7days for samples, 10-20 days for large orders |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |

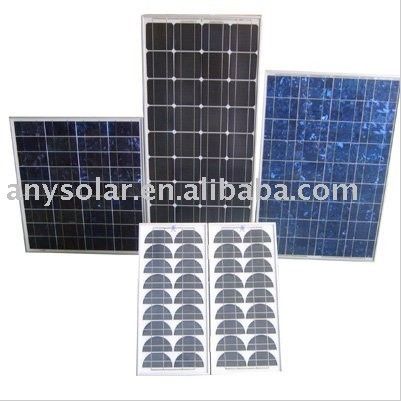

PV solar panel 90w
1. Ideal weaklight performance
2. High convertion efficiency
3. Prompt delivery
4. Energy saving
PV solar panel, pv solar panel 90w<-->Parameter:
Max power | 90W |
Max Power Tolerance[%] | ±3% |
Open circuit voltage (V) | 21.6 |
Short circuit current (A) | 5.35 |
Optimum operating voltage (V) | 18.0 |
Optimum operating current (A) | 5.02 |
Maximum system voltage (V) | DC600V |
Solar cell type | Monocrystalline silicon cell |
Number of solar cell | 36pcs |
Temperature coefficient of pmax | â0.43%/°C |
Temperature coefficient of voc | â0.33%/°C |
Temperature coefficient of isc | 0.052%/°C |
NOCT | 48°C±2°C |
Dimensions of Module | 1206*535*35mm |
Operating Temperature{°C} | â40~85 |
Storage Temperature{°C} | â40~85 |
Test standards | Irrandiance 1000W/m²,Temperature 25°C,AM=1.5 |
Design Characteracteristics:
High efficiency cells operate under both optimal and low light conditions
Cells assembled in modules with a tight range og current performance to ensure optimal operation
Antireflective coatings and High Transmission Low Iron Glass toincrease module output
Solid Reliable Constrution:
Strong frames made from anti-corrosion(anodised)treated aluminium
Toughened Glass surface and reinforce backing board designed to prevent water intrnsion
Sealed Junction boxes filled with resin to keep moisture out ,and Highest Quality EVA and sealants to further protect against moisture
Designed for Seamless Integration with your system
Module frames contain 4-8 mounting points for ease of installation with a variety of racks
All modules supplied with 1m double insulated MC cords for ease of interconnection
Industry leading junction boxes containing Bypass Diodes to reduce the impact of partial shading
PV solar panel, pv solar panel 90w\-Application:
1) make up of solar energy systems
2) charge street lights
3) provide electricity for house
4) use to water field, or farmland
5) provide electricity for public area, or for poor area.
6) beautify living conditions.
Solar panel quality and warranty:
1. Peak power of single module in guaranteed in +-3% power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
4. 5 years limited warranty on material and workmanship
5. Power is not less than 90% in 10 years and 80% in 25 years.
