Corrosion Resistant Telecom Power Supply Online UPS 6KVA / 4200W Outdoor UPS System

Corrosion Resistant Telecom Power Supply Online UPS 6KVA / 4200W Outdoor UPS System
Corrosion Resistant Telecom Power Supply Online UPS 6KVA / 4200W Outdoor UPS System Corrosion Resistant Telecom Power Supply Online UPS 6KVA / 4200W Outdoor UPS System

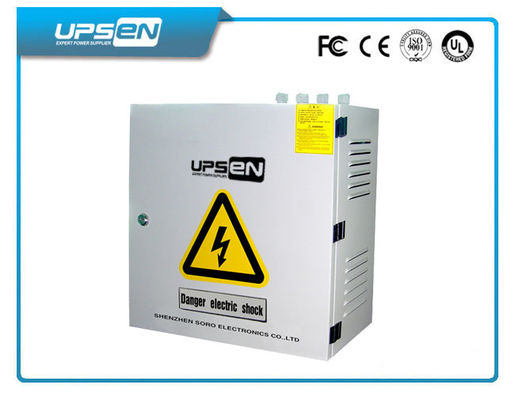

Large Image :  Corrosion Resistant Telecom Power Supply Online UPS 6KVA / 4200W Outdoor UPS System

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Top Star Series 1-10Kva
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Modular Online Output Power Factor: 0.8
Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

residential ups systems

,

High Temperature UPS


Corrosion Resistant Telecom Power Supply Online UPS 6KVA / 4200W Outdoor UPS System

Model: Outdoor Online UPS Top Star Series 1K-100Kva (1ph in / 1ph out)  (3ph in / 1ph out) (3ph in / 3ph out)

Outdoor UPS Quick View

1.  Outdoor UPS with Smart Communication Ports of RS232 RJ11 RJ45 USB and SNMP
2.  Outdoor UPS with Both Single Phase and Three Phase Input Output
3.  Outdoor UPS Providing with pure sinewave power for outdoor telecom and network equipment



KEY FEATURES:



1.  Providing with pure sinewave power for outdoor telecom and network equipment.

2.  Be suitable for outdoor severe Temperature,Humidity and harsh Environment, especially can meet the outdoor electric network requirements. (Outdoor environment is severe and quality of electric network also is so bad . For example outdoor high temperature is 50 and severe winter is 40,Voltage range is from 160V to 260V even easily change )

3.  Adopting sealed natural cold design, high-temperature resistant ,cold resistant and corrosion resistant,that degree of sealing is IP55 .



APPLICATIONS :

1.  Providing with outdoor complete integrated communication cabinet.

2.  According to customers requirement to produce,.achieving integrated solution products.

3.  Making the best of vacant areas resources without equipment room , reducing the period of setting up communication

     network. and cutting down project costs.

4:  Mainly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (+50 ° C)

     / low  temperature (-15 ° C), severe dust, moisture, rain, mist erosion, very poor power quality (voltage long-term higher        than 260V or less than 160V, frequency abnormal change) in the area.





Top Star Series

Model



T1K

T2K

T3K

T6K

T10K

Capacity

Capacity

1KVA/700W

2KVA/1400W

3KVA/2100W

6KVA/4200W

1000KVA/7000W

Input

Nominal voltage

220/230/240VAC

Nominal frequency

50/60HZ

Voltage Range

115~295VAC(± 3VAC)

176~297VAC(± 3VAC)

Frequency Range

50HZ(46~54HZ), 60H(56HZ~64HZ)

Power Factor

0.98

Output

Voltage Precision

220/230/240X (1± 2%)VAC

Frequency Precision

50/60HZ± 0.05Hz

Power Factor

0.7

THDI

< 3% (Linear load)            < 6% (Non-linear load)

Overload Capability

Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode.

Crest Factor

3:1

Transfer Time

0ms(AC to DC )

Battery

DC Voltage

36VDC

96VDC

96VDC

240VDC

240VDC

Charge Current

4A/8A(optional)

4.2A

4.2A

Internal Battery Capacity

(38/65/80/100AH/120AH)optional

Panel Display

LED/LCD Digital Display

Display input and output voltage, frequency, battery voltage, battery capacity, load percentage

Communications

Communicate Interface

RS232, SNMP card(optional)

Enviroment

Temperature

0~40° C

Humidity

0~95% Non-condensing

Storage Temperature

-25° C~55° C

Altitude

< 1500m

Acoustic Noise             ( within 1 meter)

< 50dB

Physical

Weight(KG)

85

125

125

150

155

Dimensions (LxWxH)mm

900×640×900

900*640*1185

900*640*1185

940*940*1770

940*940*1770



Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
