Product Details:
Payment & Shipping Terms:
|
| Type: | Modular Online | Output Power Factor: | 0.8 |
|---|---|---|---|
| Phase: | Single Phase | Protection: | Over Load/Current/Voltage, Short Circuit Etc |
| Display: | Digital LCD Display | H.S. Code: | 8504402000 |
| High Light: | outdoor uninterruptible power supply,residential ups systems |
||

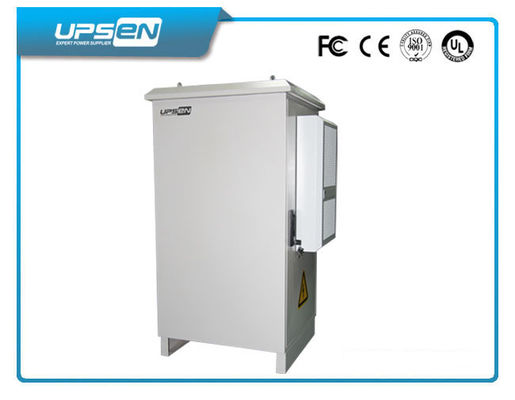

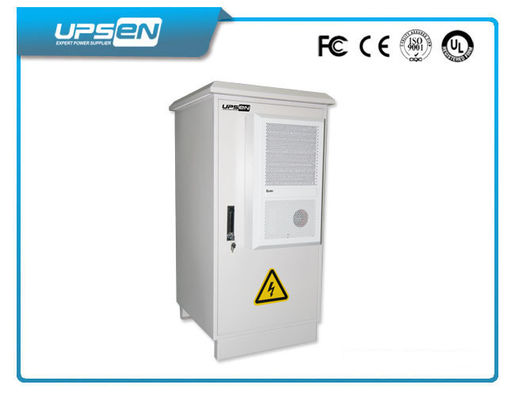

380V / 400V / 415V Outdoor UPS System High Frequency Online UPS 10KVA / 7000W 20KA / 14KW 30KVA / 21KW
Model: Outdoor Online UPS Top Star Series 1K-100Kva (1ph in / 1ph out) (3ph in / 1ph out) (3ph in / 3ph out)
Outdoor UPS Quick View
Key Features
UPSEN Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave AC power supply for outside communications / network equipment.
Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP55; With the wide range of input voltage and frequency of input window (-45% +35% rated voltage and ± 10% rated frequency), in many remote areas of China after a severe test of the grid.
Applications
UPSEN outdoor UPS is mainly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (+50 ° C) / low temperature (-15 ° C), severe dust, moisture, rain, mist erosion, very poor power quality (voltage long-term higher than 260V or less than 160V, frequency abnormal change) in the area.
|
Top Star Series |
||||||
|
Model |
T1K |
T2K |
T3K |
T6K |
T10K |
|
|
Capacity |
Capacity |
1KVA/700W |
2KVA/1400W |
3KVA/2100W |
6KVA/4200W |
1000KVA/7000W |
|
Input |
Nominal voltage |
220/230/240VAC |
||||
|
Nominal frequency |
50/60HZ |
|||||
|
Voltage Range |
115~295VAC(± 3VAC) |
176~297VAC(± 3VAC) |
||||
|
Frequency Range |
50HZ(46~54HZ), 60H(56HZ~64HZ) |
|||||
|
Power Factor |
0.98 |
|||||
|
Output |
Voltage Precision |
220/230/240X (1± 2%)VAC |
||||
|
Frequency Precision |
50/60HZ± 0.05Hz |
|||||
|
Power Factor |
0.7 |
|||||
|
THDI |
< 3% (Linear load) < 6% (Non-linear load) |
|||||
|
Overload Capability |
Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode. |
|||||
|
Crest Factor |
3:1 |
|||||
|
Transfer Time |
0ms(AC to DC ) |
|||||
|
Battery |
DC Voltage |
36VDC |
96VDC |
96VDC |
240VDC |
240VDC |
|
Charge Current |
4A/8A(optional) |
4.2A |
4.2A |
|||
|
Internal Battery Capacity |
(38/65/80/100AH/120AH)optional |
|||||
|
Panel Display |
LED/LCD Digital Display |
Display input and output voltage, frequency, battery voltage, battery capacity, load percentage |
||||
|
Communications |
Communicate Interface |
RS232, SNMP card(optional) |
||||
|
Enviroment |
Temperature |
0~40° C |
||||
|
Humidity |
0~95% Non-condensing |
|||||
|
Storage Temperature |
-25° C~55° C |
|||||
|
Altitude |
< 1500m |
|||||
|
Acoustic Noise ( within 1 meter) |
< 50dB |
|||||
|
Physical |
Weight(KG) |
85 |
125 |
125 |
150 |
155 |
|
Dimensions (LxWxH)mm |
900×640×900 |
900*640*1185 |
900*640*1185 |
940*940*1770 |
940*940*1770 |
|
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
