Vibrating Inclined Conveying Machine & Hopper Screw Conveyor 3 Phase

Vibrating Inclined Conveying Machine & Hopper Screw Conveyor 3 Phase
Vibrating Inclined Conveying Machine & Hopper Screw Conveyor 3 Phase Vibrating Inclined Conveying Machine & Hopper Screw Conveyor 3 Phase

Large Image :  Vibrating Inclined Conveying Machine & Hopper Screw Conveyor 3 Phase

Product Details:
Place of Origin: CHINA
Brand Name: HALLO
Certification: ISO
Model Number: LS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: export wooden case
Delivery Time: 10 days
Payment Terms: by T/T (The contract becomes effective after receiving 30% payment, balance against the copy of B/L)
Supply Ability: 10000 sets
Detailed Product Description
Material: Stainless Steel Application: Powder
Cleaning Type: Pressure
High Light:

hopper screw conveyor

,

powder conveyor

Vibrating Inclined Conveying Machine & Hopper Screw Conveyor 3 Phase







Application:

This machine can convey many different materials, like dry powder,such as coffee powder, wheat flour, condiment and it also fits for some small batches. Combining with the packaging machine of our company, we can present you situation tracing with the above material. It can also be used separately. The whole machine are made of stainless steel of 304 except for the motor.



Main Features

1. The vibrating screw feeding machine equips with double motors:feeding motor and vibrating motor, each of them has its own switch control.

2. Once starts the switch,the hopper would be in continuously vibration which makes the material flow easily and convective. and with different requirement,the size can be changed X cor made according to customer’s requirement.

3. The hopper separates from the twisting shift, designing with the reasonable structure, each part of the conveyor can be taken down easily.

4. With dust-proof characteristic, the hopper won’t be glued or polluted by dust and powder. And the complete machine is made of Ss304 except for the motor.

5. With specific design,it’s very easily and convenient to clean up the residue and leftover,also this equipment can discharge the material reversely, and the storing materials at the bottom of hopper pipe can be easily released from the door once starting the switch.



Working Principle:

LS Series Stainless Steel Hopper Screw Conveyor & Inclined Screw Hopper Loader is conveyor equipment widely used. There are two kinds of screw conveyor
divided from conveying direction, one is horizontal screw conveyor, and another is vertical screw
conveyor. The conveyor is used for loose materials such as all kinds of powders, granules and
small blocks. The screw conveyor is made of steel. There is pipe inside of conveyor and paddles are
spirally welded on the pipe. The materials are passed and conveyed by rotary spiral paddles.



Technical Parameter


Model

Throughput

Sleeve Diameter

Screw Diameter

Screw Speed

Motor Power

LS-50

5-10 L/min

50mm

20mm

140r/min

0.2kw

LS-60

10-20 L/min

60mm

25mm

140r/min

0.4kw

LS-80

15-30 L/min

76mm

30mm

140r/min

0.75kw

LS-100

20-40 L/min

100mm

50mm

140r/min

1.5kw

LS-130

30-50 L/min

133mm

60mm

140r/min

2.2kw

LSJ-160

40-80 L/min

168mm

76mm

140r/min

2.2kw

LSJ-200

60-100 L/min

219mm

76mm

140r/min

3.7kw



Specifications:

1. Power Supply: 3 Phase 208-415V 50-60Hz

2. Charging angle: Standard 45 degree, 30~60 degree are also available.

3. Lifting Height: Standard 1.85 meters,1 – 5 M could be designed and manufactured

4. Food grade screw, Mixer and power box  are optional.

5. With vibrating and feeding motor.
6. Lifting height can be custom-made.
7. Many charging capacity available.

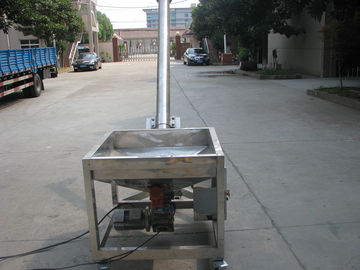

Vibrating Inclined Conveying Machine & Hopper Screw Conveyor 3 Phase 0

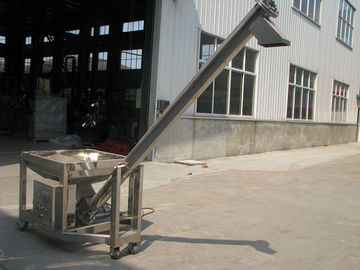

Vibrating Inclined Conveying Machine & Hopper Screw Conveyor 3 Phase 1
