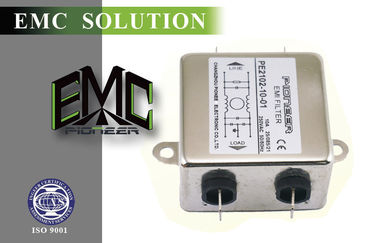

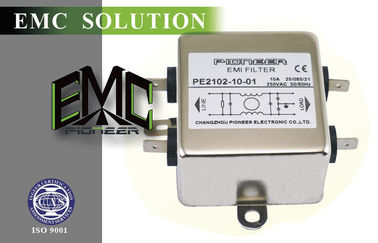

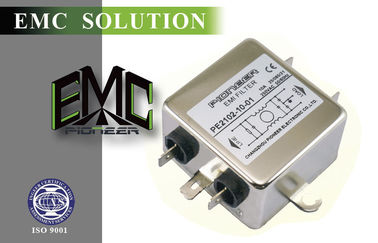

RFI Single Phase 50 / 60Hz Power Line Filter , High Performance

RFI Single Phase 50 / 60Hz Power Line Filter , High Performance
RFI Single Phase 50 / 60Hz Power Line Filter , High Performance RFI Single Phase 50 / 60Hz Power Line Filter , High Performance RFI Single Phase 50 / 60Hz Power Line Filter , High Performance RFI Single Phase 50 / 60Hz Power Line Filter , High Performance

Large Image :  RFI Single Phase 50 / 60Hz Power Line Filter , High Performance

Product Details:
Place of Origin: China
Brand Name: Pioneer
Certification: CE/ROHS
Model Number: PE2102-10-01
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $10-200/PCS
Packaging Details: 5-layer corrugated packaging
Delivery Time: 1-3 days for sample order, 7-15 days for mass production
Payment Terms: T/T ,L/C,Western Union,PayPal
Supply Ability: 10,000pcs per month
Detailed Product Description
High Light:

emi rfi noise filter

,

emi power line filter

RFI Single Phase 50 / 60Hz Power Line Filter , High Performance





Deacription:



General purpose filtering performance.

Easy and fast chassis mounting

Rated currents from 6 to 100A.

Low leakage current and high quality components ensure the safety and reliability of filters.

Optional medical versions(B type)

Various terminal optionas:faston/screw/wire.



Typical Applications



Office automation equipment .

Electrical and electronic equipment.

Datacom equipment.

Household equipment.

Medical equipment.

Consumer goods.



Specification:



Rated voltage

120/250VAC

Rated current

6-100A

temperature

25/085/21

Operating frequency

50/60Hz

Name

high performance rfi filter

Test voltage

L-L 1450VDC/1min



L-G 2000VDC/1min



EMI Filter Catalog:



Emi rfi filter PE2100 series catalog

Filter model

Rated Current(A)

Rated Voltage(VAC)

Leakage Current(mA)

Temperature

range

Input/

Output

PE2100-6-01

6

120/250

0.5

HPF 25/085/21

Fast on

PE2100-10-01

10

120/250

0.5

HPF 25/085/21

Fast on

PE2100-16-01

16

120/250

0.5

HPF 25/085/21

Fast on

PE2100-10-06

10

120/250

0.5

HPF 25/085/21

screw

PE2100-20-06

20

120/250

0.5

HPF 25/085/21

screw

PE2100-30-06

30

120/250

0.5

HPF 25/085/21

screw

PE2100-35-06

35

120/250

0.5

HPF 25/085/21

screw

PE2100-50-06

50

120/250

0.5

HPF 25/085/21

screw

PE2100-70-06

70

120/250

0.5

HPF 25/085/21

screw

PE2100-100-06

100

120/250

0.5

HPF 25/085/21

screw

PE2101-6-01

6

120/250

0.5

HPF 25/085/21

Fast on

PE2101-10-01

10

120/250

0.5

HPF 25/085/21

Fast on

PE2101-16-01

16

120/250

0.5

HPF 25/085/21

Fast on

PE2102-6-01

6

120/250

0.5

HPF 25/085/21

Fast on

PE2102-10-01

10

120/250

0.5

HPF 25/085/21

Fast on

PE2102-16-01

16

120/250

0.5

HPF 25/085/21

Fast on

PE2102-20-01

20

120/250

0.5

HPF 25/085/21

Fast on



Detail Information:





RFI Single Phase 50 / 60Hz Power Line Filter , High Performance 0





Company Information:



Changzhou Pioneer Electronic Co.,Ltd.is one of the leading professional manufacturer in the

electromagnetic compatibility (EMC) field.

Our wide range of EMI/EMC filters and related EMI shielding materials are widely

used in energyefficient drive systems and electronic motor controls such as frequency converters or

inverters,in power supplies for numerous electronic devices in sectors such as medical technology or

telecommunications, in wind power and photovoltaic systems,in rail technology and military etc.



We have cooperated with a group of world-class customers from all industries at home and abroad.



RFI Single Phase 50 / 60Hz Power Line Filter , High Performance 1



Company Advantage:



1 Advanced production equipment and testing instruments:
These equipments imported from Germany, Britain and Japan to ensure our leading production process

and the

rapid delivery capabilities.We can deliver the full range of EMI filters of 0.2A-1600A within 2-4 weeks.


2.International standards
All of products are CE certified and ROHS compliance,also meet the standards of IEC939-1,IEC939-2,

EN133200,UL1283, VDE0565-3,GB/T15287,GB/T15288 etc. to available for every country.



FAQ:



Q1:  How about your experience?

A1:  Our factory production department and engineer teams with more than

10 years producing experience.



Q2:  What’s the standard of package?

A2: Strong paper packing for EMI filter. Customer package is accepted.



Q3:  Could you do OEM for us?

A3:  Sure, we accept OEM order, please provide us the label picture.



Q4: How about warranty?

A4: Our products give 2 years replacement, three years warranty.
