Product Details:
Payment & Shipping Terms:
|
| Power: | 23W | Housing Color: | Black, White, |
|---|---|---|---|
| Track Adapter: | 3 Pins Or 4 Pins | CCT: | 3000K/4000K/5000K |
| Voltage: | 100-240Vac | Lamp Luminous Flux(lm): | 2300LM |
| High Light: | led track spotlights,led tracking lights |
||
COB Adjustable LED Track Lights 23Watt Unique Reflector 3 / 4 Phase EU Standard
Quick Detail:
Description:
Ming Feng Lighting Co.,Ltd 2015 new Italian exterior design 8W CRI 90Ra LED track lights with cold forging aluminium heat sink, better thermal dissipation, COB CREE brand leds inside, CRI 80 & 90. New lens
halogen light effect, narrow beam anle, 24°/50° . Available for superstore, school, factory, underground parking, passageway, hospictal, official large building and so on public place lighting.
Specifications:
|
Model No |
MF-I85C088 |
|
Input voltage |
200-240Vac 50hz/60hz |
|
Power(watt) |
23W |
|
Luminous Efficiency |
101LM/W |
|
Color temperature |
Warm White(3000K), Pure White(4000K), Cold White(5000K) |
|
LED Chip |
COB CREE |
|
Material |
Aluminum |
|
Luminous Flux (lm) |
1500±10% |
|
CRI(Ra) |
≥90 |
|
Lifespan |
≥40000hrs |
|
Beam Angle |
24°/50° |
|
Packing |
Neutral / Customized |
|
Operating Temperature |
-20°C ~40°C |
|
Adjustable Angle |
90°/355 ° |
|
IP |
20 |
|
Dimmalbe |
YES |
|
Certificate |
CE/RoHS |
|
Warranty Period |
3 years |
Features:
1. Light source: Original COB CREE LED, >100lm/W.
2. Available in CRI 90+.
3. Unique reflector, 24°/50° beam angle.
4. Dimming methods: Triac, DALI, 0-10V.
5. Can be rotated by 355D in horizontal direction,90D in vertical direction.
6. Can be with Honeycomb to protect human’s eyes.
7. With 3-phase track adaptor or single phase track adaptor.
8. Customer can change the beam angle reflector easily without any tool.
9. Power factor: >0.90.
10. Housing color: Black, white.
11. Non-dimmable version voltage: AC100-240V.
12. Dimmable version voltage : AC220-240V or AC100-120V.
13. Housing material: aluminum.
14. Working environment temperature: -20oc ~ +45oc.

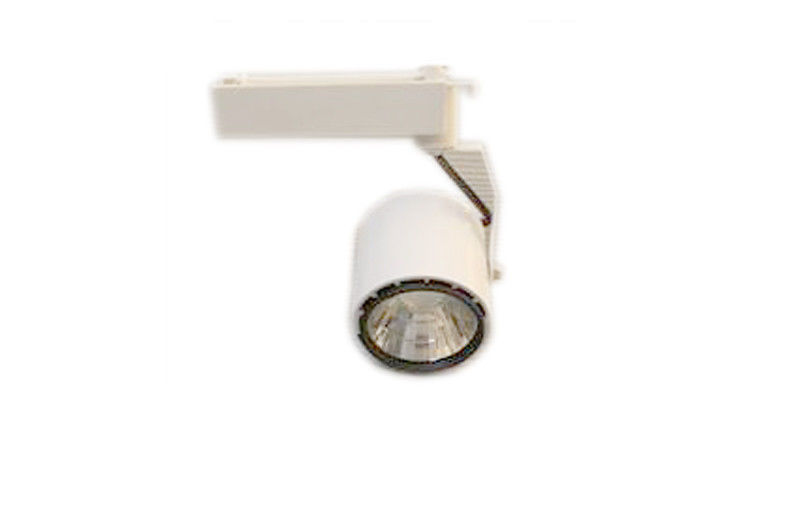

Photos of LED Track Lights:
Package of LED Track Lights:
Applications:
Emporium, superstore, school, factory, underground parking, passageway, hospictal, official large building and so on public place lighting.
