Specifications for Single Phase AC Generator Price Small Alternator Price List 8.1KVA to 40KVA
1. Directly Manufacturer
2. 100% Copper wire AC Alternator 15KVA/12KW
3. OEM Service
4. CE/ISO Approved
5. 7-10 days lead time
FARADAY 100% Copper Wire Three Phase AC Alternator 6.5KW-32KW
FARADAY 100% Copper Wire Single Phase AC Alternator 4.3KW-22.4KW
Alternator Features:
- Brushless, Synchronous AC Alternator, Easy operation and simple maintenance
- IP23, Insulation Class H Alternator
- Usage: As a electric power source matching diesel engines for lighting purpose in Town, Countryside, Work sites, Mountain and Pasture lands
- Drip-proof type
- 3 phase 4 wire type, Star connection
- 50HZ, 380V, 1500RPM as standard, also 60HZ can be made as customers’ requirement
- Certificate: CE/ISO9001
Operating conditions
Under the following environment, The generator could be continuous and rated running:
Above sea level: Not exceed 1000m
Cooling air temperature: 258~313K(-15 ℃~ 40 ℃)
Relative air damping: not exceed 90%
Alternator Specification:
1-PH, 50HZ@1500RPM, 220/240V(Also can be made according to customers’ special requirements)
Alternator Model |
FD1E |
Power |
15kva / 12kw |
Exciter type |
Brushless, Self excitation system |
Power factor |
0.8 |
Voltage adjust range |
≥3% |
Voltage regulation NL-FL |
≤±0.3% |
Insulation Grade |
H |
Protection Grade |
IP23 |
FARADAY FD1 Series Single Phase Alternator data for your reference:
Model |
Output |
Voltage (V) |
Current (A) |
Power Factor |
Speed (rpm) |
Freq. (Hz) |
Pole No. |
|
KVA |
KW |
|||||||
FD1A |
5.4 |
4.3 |
220-240V |
12.3 |
0.8 |
1500/1800 |
50/60 |
4 |
FD1B |
7.4 |
5.9 |
16.7 |
|||||
FD1C |
9.0 |
7.2 |
20.5 |
|||||
FD1D |
10.7 |
8.6 |
24.3 |
|||||
FD1E |
15.0 |
12.0 |
34.2 |
|||||
FD1F |
18.5 |
14.8 |
41.8 |
|||||
FD1G |
21.0 |
16.8 |
47.6 |
|||||
FD1J |
25.0 |
20.0 |
57 |
|||||
FD1K |
28.0 |
22.4 |
60.8 |

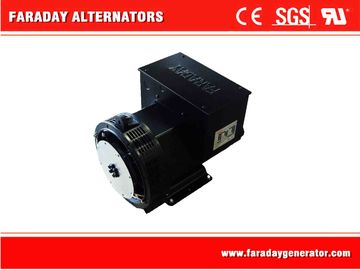

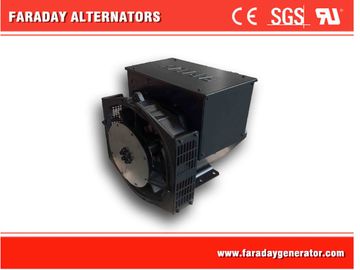

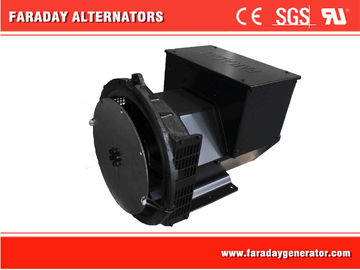

Product Show
Package Details
Warranty Period
- Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.
- During the guarantee period, we will supply freely service of the easy damaged parts for the possible problems except for the incorrect operation.
- After expiration, you should pay for the spare parts cost for alternator maintenance.
Payment Terms
- 30% deposit(T/T),balance (70%) to be paid before shipment.
- 100% irrevocable L/C at sight.
Why Choose Us?
1) factory photos. Welcome to visit our factory!
- Over 12 years experience in generator field
- Directly manufacturer
2) Production Process
New photos will come soon!
Main Partners
How to choose us?
1.Classification of generator:
(1) single phase or three phase;
(2) single bearing or double bearing;
(3) PMG is optional (except for FD1 series)
(4) Droop Kit and Anti-condensation heater are optional according to the operation environment.
(5) 2 pole/ 4 pole/ 6 pole/ 8 pole alternators are optional
2.How to choose AVR?
FD1/FD2 series SX460
FD3/FD4/FD5 series SX440
FD6 SX321 / PMG
FD7 SX341 / PMG
3.How to select generator?
-- working environment (less than 1000m above sea level & less than 40 ℃ ambient temperature)
-- different country with different frequency (60HZ for Korea, Taiwan, Philippines, Saudi Arabia, North America and South America countries)
-- For sea side operating environment, anti-condensation heater and droop CT
-- Insulation class H generator
-- 2/3 pitch
-- silicon steel, 100% copper wire, VPI system with Elantas Epoxy insulation painting
4. What is FD and FDH?
--FD means Faraday low voltage alternator
--FDH means Faraday high voltage alternator
--The model instruction is as follows:
