300W CCTV Power Supplies

China 300W CCTV Power Supplies  supplier
300W CCTV Power Supplies  supplier 300W CCTV Power Supplies  supplier 300W CCTV Power Supplies  supplier 300W CCTV Power Supplies  supplier

Large Image :  300W CCTV Power Supplies

Product Details:

Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: CE, RoHS, FCC
Model Number: ETB122518

Payment & Shipping Terms:

Minimum Order Quantity: 500 Pcs
Price: Negotiable

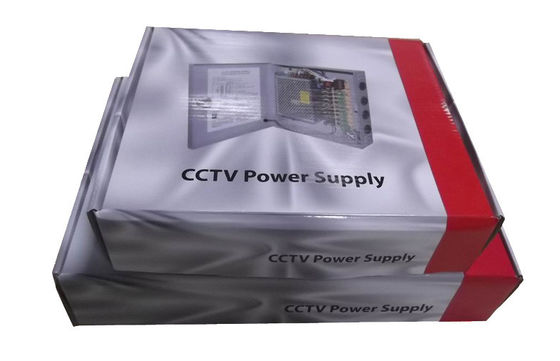

Packaging Details: Inside white box/color box, outside master carton
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
Contact Now
Detailed Product Description
Application: CCTV Cameras, IP Cameras Approval: CE, UL
EMI: EN55011 Class B, EN55022 Class B Feature: High Voltage, 18 Channel, LED
Frequency: 50Hz / 60Hz Input: AC100-240V
Output: 12VDC Product Name: CCTV Power Supplies
Protection: Short Circuit, Over Voltage, Over Current


12VDC 300W CCTV Power Supplies 50Hz / 60Hz For IP Cameras , EN55011 Class B



Quick Detail:

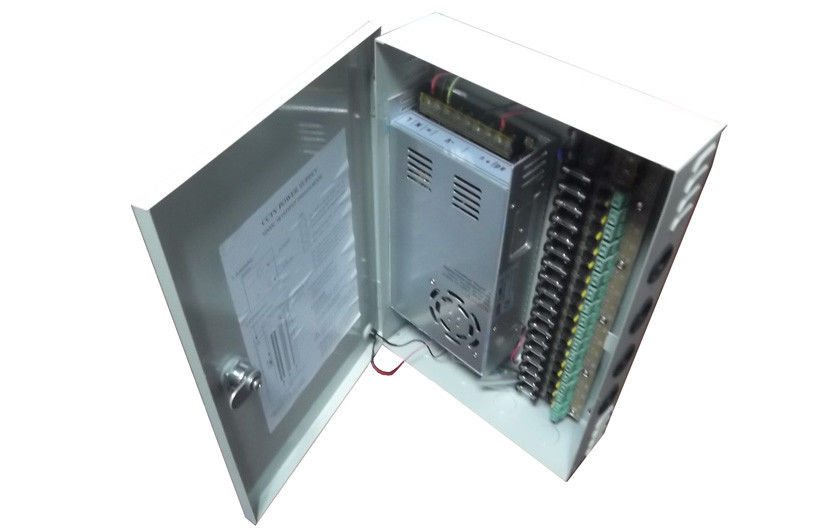

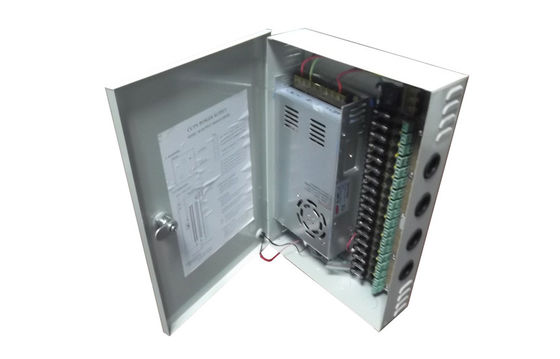

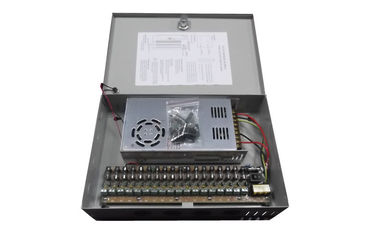

This is metal cabinet power supply distribution box which is designed for CCTV cameras. The power supply supports AC inputs from 100V to 240V, it works in Japan to the outback of Australia without any adjustment. it comes with DC outputs 12V 25Amp. This is 18 channel power supply box, support connecting up to 18 traditional CCTV cameras.

This is switching power supply, which regulates the energy level and ensures continuous working of the system without recharging or refueling. The 18 channel power supply box supports short circuit, over current, over temperature and over voltage protection. It's un-interrupted power system for your video surveillance cameras.

This power supply box mainly used in video surveillance system, industry, machine equipment, LED display, telecommunication...etc





12VDC 25A 18CH for 18 out premium CCTV power supply unit.

The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It’s also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.





Boxed CCTV power supply can be widely used for indoor security cameras such as IP Cameras, Wireless CCTV Cameras, DVR, Hidden Cameras etc.





Max output power



Input Voltage


Input Voltage Frequency


Input Current




Inrush Current

Cold Start Curren 40A/240Vac

Leakage Current



Output Voltage


Total Output Current

20A(1100mA/CH, 18 Channels for 18 sets security camera)

Output Ripple



Rated input voltage & Rated output load

Fuse Type

Glass fuse

Fuse Rating

2.0 Amps/250VAC

Start time, rise time, hold on



Short Circuit Protection

When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.

High Voltage Protection

When over voltage occurs, it will switch to self-protection status to

protect the load.

Over Current Protection

When over current occurs,

the corresponding

channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.


Working Temperature


Storage Temperature




Heat Release

Natural heat dissipation

Dielectric strength

Input to output

1500Vac/60S  leakage current≤1.5mA

Input to FG

1500Vac/60S  leakage current≤2.0mA

FG to output

500Vac/60S   leakage current≤1.5mA

Insulating Strength

Input to output




Safety EMC

Safety Standards

UI60950 EN60950


EN55011 class B

EN55022 class B

EMS Immunity

EN55024 EN61000-6-2

Harmonic Current




Competitive Advantage:


-100 ~ 240VAC Worldwide Input Voltage range;

-Compact design, light weight and high efficiency;

-Short Circuit Protection, Over Current Protection, Over Load Protection;

-Customer design model;

-Factory direct price w/o middle man;

-0.3% backup of order quantity free of charge.
