Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cctv Tester | Size Of Panel: | 2.5inch |
|---|---|---|---|
| Application: | Camera Testing | Resolution: | 320(H)*228(V)mm |
| Brightness: | 200cd/m2 | Power Supply: | AC Input:100~240V /1.5A,50/60Hz |
| Display Area: | 50.8(h)*32.06(v)mm | Power Consumption: | 1.2V |
| High Light: | IP Camera Tester,cctv tester monitor |
||

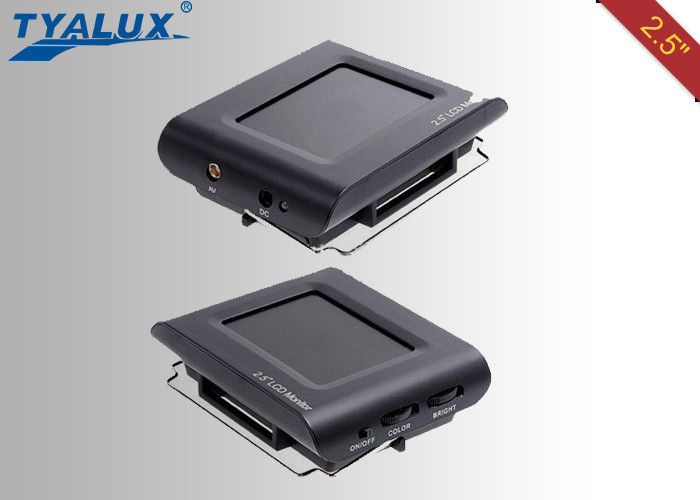

Portable CCTV Tester with 2.5 inch screen for on-site camera installation
Description:
1: LED backlight provides longer life,uses less power and provides better color saturation
2: Battery pack for field monitor use included
3: Ideal for trouble shooting system setup/fault location
4: Manual color adjustment
5: Low power consumption
6: Case made of durable ABS plastic
7: Battery provides 3-4 hrs continuous operation
8: Snap-on battery pack holds 1 Lithium rechargeable batteries (batteries included)
9: Manual controls for brightness,color,contrast
Specifications:
|
Product Name |
Mini CCTV LCD Monitor |
|
|
Product Model |
TYL-M025LCD |
|
|
LCD Panel |
Display area |
50.8(h)*32.06(v)mm |
|
Aspect ratio |
4:3 |
|
|
Backlight life span |
≥50000 |
|
|
Resolutions |
320×228 |
|
|
Brightness |
200cd/㎡ |
|
|
Contrast ratio |
150:1 |
|
|
Response time |
15ms |
|
|
Dot pitch |
0.1(H)×0.1525(V)mm |
|
|
Colors |
16.7M |
|
|
Viewing angle |
(up/down /left/right):(10/30/40/40) |
|
|
Signaling interface |
Video format |
PAL,NTSC automatic recognition |
|
Video signal |
1.0vp-p75ohm |
|
|
Video interface |
1 Ch(BNC)video IN |
|
|
Audio signal |
/ |
|
|
Control mode |
Thumb wheel control |
Support |
|
Touch button |
/ |
|
|
Infared remote control |
/ |
|
|
Power supply |
Working voltage |
5V DC / 50-60Hz |
|
Battery capacity |
DC3.7V 1000mAh |
|
|
Mac power consumption |
1.2W |
|
|
Use environment |
Temperature |
0～60 ℃ |
|
Humidity |
5～95%RH |
|
|
Appearance information |
Weight |
20g |
|
Dimmention |
85(L)*65(W) * 25(H) (mm) |
|
Applications:
Monitors for testing video performance, angle of view, and focus of security cameras during installation
With portable carrying wrist strap, rechargable battery Can be taken on installer's arm for easier video check
