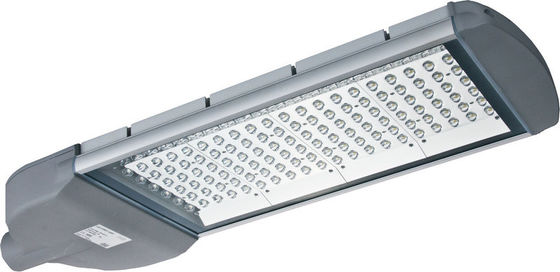

230v 120v 13200 lm 135W High Power LED Street Lighting Fixtures For Parking

220V 13200 lm 135W LED Street Light IP 65 , Energy Savings

Quick details:

1. Long life

2. Energy efficiency

3. Improved visibility

4. Instant on /no restrike

5. Ease of installation

6. High efficiency reduces electricity cost

7. Significantly less generated heat

8. More than twice the average life of metal halide and high pressure sodium

Description:

ZGSM LLD series high power LED street light are designed for use in sport field, city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time. All of ZGSMs long life LED luminaires are designed to meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality of light.

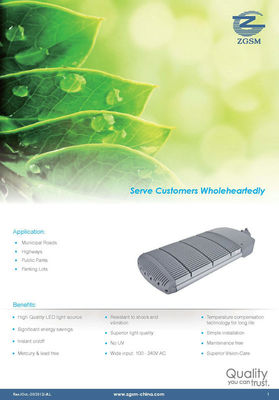

Applications:

Municipal Roadways

Bridges

Public Parks

Parking Lots

Sport Feild

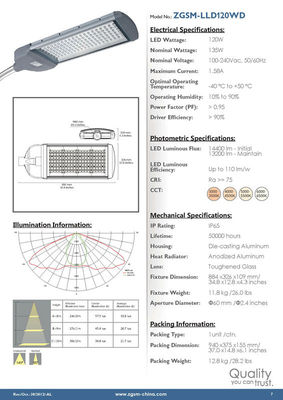

Specifications:

1. LED Wattage: 60W

1. LED Wattage: 120W

2. Nominal Wattage: 135W

3. Nominal Voltage: 100-240V AC, 50/60Hz

4. Maximum Current: 1.58A

5. Optimal Operating Temperature:-40℃+50℃

6. Operating Humidity: 10% to 90%

7. Power Fact(PF): > 0.95

8. Driver Efficiency: > 90%

9. LED Luminous Flux: 14400 lm in Initial, 13200 lm in Maintain

10. LED Luminous Efficiency: Up to 110 lm/w

11. CRI: Ra >= 75

12. CCT: 3000-3500K, 5000-5500K, 4000-4500K, 6000-6500K

13. IP Rating: IP65

14. Lifetime: 50000 hours

15. Housing: Die-casting Aluminum

16. Heat Radiator: Anodized Aluminum

17. Lens: Toughened Glass

18. Guarantee: 3 years

19. Fixture Dimensions: 884 x326 x109 mm/34.8 x12.8 x4.3 inches

20. Fixture Weight: 11.8 kg /26.0 lbs

21. Packing Dimension: 940 x375 x155 mm/37.0 x14.8 x6.1 inches

22. Packing Weight: 12.8 kg /28.2 lbs

23. Aperture Diameter:Ф60 mm /Ф2.4 inches

Competitive Advantage:

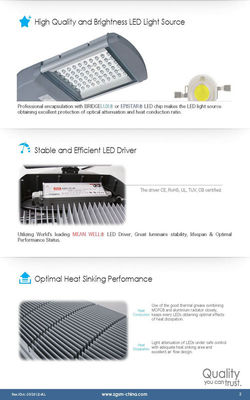

1. High Quality and Brightness LED Light Source

2. Stable and Efficient LED Driver

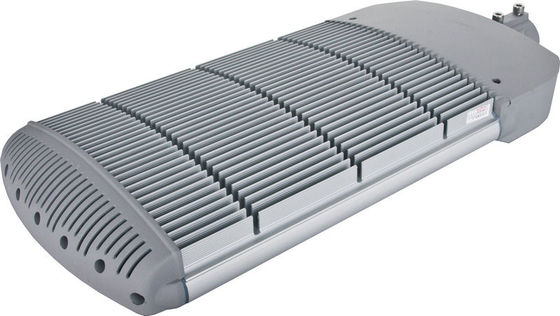

3. Optimal Heat Sinking Performance

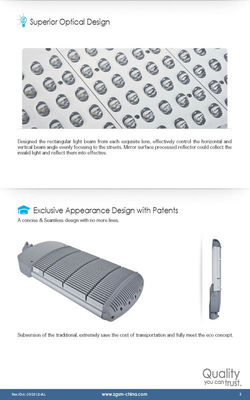

4. Superior Optical Design

5. Exclusive Appearance Design with Patents

6. Significant energy savings

7. Instant on/off

8 .Maintenance free

9. Mercury free

10. Superior light quality

11. No UV

12. Simple installation

13. Wide input: 100 - 240V AC

14. Resistant to shock and vibration

15. Temperature compensation technology for long life

16. Copper free aluminum

17. Superior Vision-Care

 LED street light, LED street lamp, LED street lighting, LED road light
