IP66 24V DC LED Street Lamp 110v 200v 230v , Light Emitting Diodes

IP66 24V DC LED Street Lamp 110v 200v 230v , Light Emitting Diodes
IP66 24V DC LED Street Lamp 110v 200v 230v , Light Emitting Diodes IP66 24V DC LED Street Lamp 110v 200v 230v , Light Emitting Diodes IP66 24V DC LED Street Lamp 110v 200v 230v , Light Emitting Diodes IP66 24V DC LED Street Lamp 110v 200v 230v , Light Emitting Diodes IP66 24V DC LED Street Lamp 110v 200v 230v , Light Emitting Diodes

Large Image :  IP66 24V DC LED Street Lamp 110v 200v 230v , Light Emitting Diodes

Product Details:
Place of Origin: China
Brand Name: ZGSM
Certification: CE, FCC, RoHS, ISO9001,ISO14000
Model Number: ZGSM-LLD90WE
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: 1-900usd/pc
Packaging Details: Export Carton, 1 Unit/CTN
Delivery Time: 1-3 days for samples,5-15 days for order production
Payment Terms: T/T, Western Union
Supply Ability: 100000 pcs per month or more
Detailed Product Description
Product Name: Street LED Lights IP Rating: IP66
LED Luminous Flux: 10800 Lm In Initial, 9900 Lm In Maintain CRI(Ra >=): 75
Optimal Operating Temperature: -30℃+50℃ Nominal Voltage: 100-240V AC, 50/60Hz,24V DC
Maximum Current: 1.17A-AC,4.63A-24VDC LED Luminous Efficiency: Up To 110 Lm/w
High Light:

high power led light

,

LED Street Lights

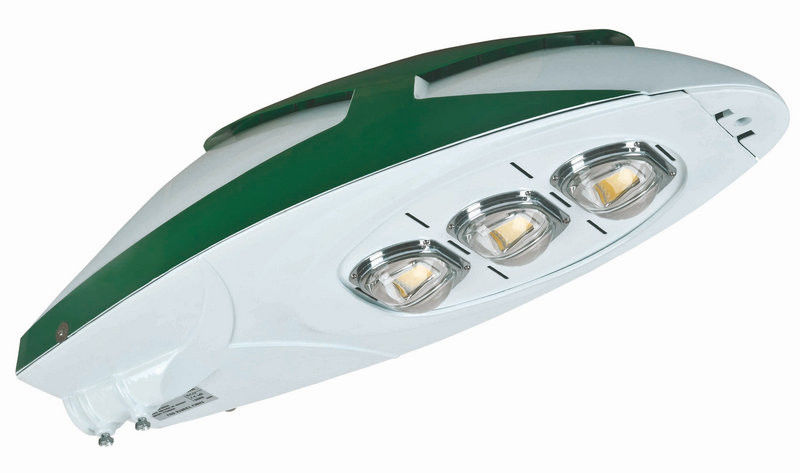

IP66 24V DC LED Street Lamp 10800lm , Light Emitting Diodes

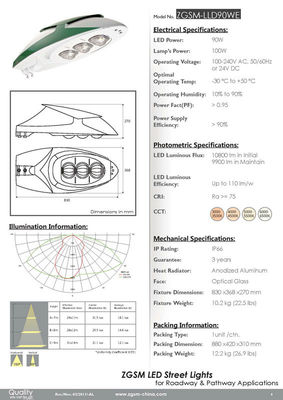

Specifications:



1. LED Wattage: 90W

2. Nominal Wattage: 100W

3. Nominal Voltage: 100-240V AC, 50/60Hz, 24V DC

4. Maximum Current: 1.17A-AC,4.63A-24VDC

5. Optimal Operating Temperature:-30℃+50℃

6. Operating Humidity: 10% to 90%

7. Power Fact(PF): > 0.95

8. Driver Efficiency: > 90%

9. LED Luminous Flux: 10800 lm in Initial, 9900 lm in Maintain

10. LED Luminous Efficiency: Up to 110 lm/w

11. CRI: Ra >= 75

12. CCT: 3000-3500K, 5000-5500K, 4000-4500K, 6000-6500K

13. IP Rating: IP66

14. Lifetime: 50000 hours

15. Heat Radiator: Anodized Aluminum

16. Face: Optical Glass

17. Guarantee: 3 years

18. Fixture Dimensions: 830 x368 x270 mm

19. Fixture Weight: 10.2 kg (22.5 lbs)

20. Packing Dimension: 880 x420 x310 mm

21. Packing Weight: 12.2 kg (26.9 lbs)

22. Aperture Diameter:Ф60 mm /Ф2.4 inches





Quick details:



1. Long life

2. Energy efficiency

3. Improved visibility

4. Instant on /no restrike

5. Ease of installation

6. High efficiency reduces electricity cost

7. Significantly less generated heat

8. More than twice the average life of metal halide and high pressure sodium





Description:



ZGSM LLD series high power LED street light are designed for use in sport field, city streets, municipal roadways,

bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for

high-brightness general illumination during the night time. All of ZGSMs long life LED luminaires are designed to

meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance

costs, and a superior quality of light.





Applications:



Municipal Roadways

Bridges

Public Parks

Parking Lots

Sport Feild





Competitive Advantage:

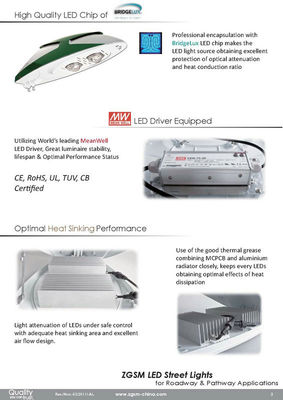

1. High Quality and Brightness LED Light Source

2. Stable and Efficient LED Driver

3. Optimal Heat Sinking Performance

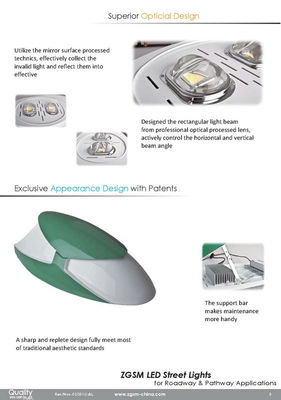

4. Superior Optical Design

5. Exclusive Appearance Design with Patents

6. Significant energy savings

7. Instant on/off

8. Maintenance free

9. Mercury free

10. Superior light quality

11. No UV

12. Simple installation

13. Wide input: 100 - 240V AC

14. Resistant to shock and vibration

15. Temperature compensation technology for long life

16. Copper free aluminum

17. Superior Vision-Care



LED street light, LED street lamp, LED street lighting, LED road lightIP66 24V DC LED Street Lamp 110v 200v 230v , Light Emitting Diodes 0
