1ph in / out 60Hz 2A 110V UPS HP9116B Series 6KVA / 4800W, 10KVA / 8000W

1ph in / out 60Hz 2A 110V UPS HP9116B Series 6KVA / 4800W, 10KVA / 8000W
1ph in / out 60Hz 2A 110V UPS HP9116B Series 6KVA / 4800W, 10KVA / 8000W

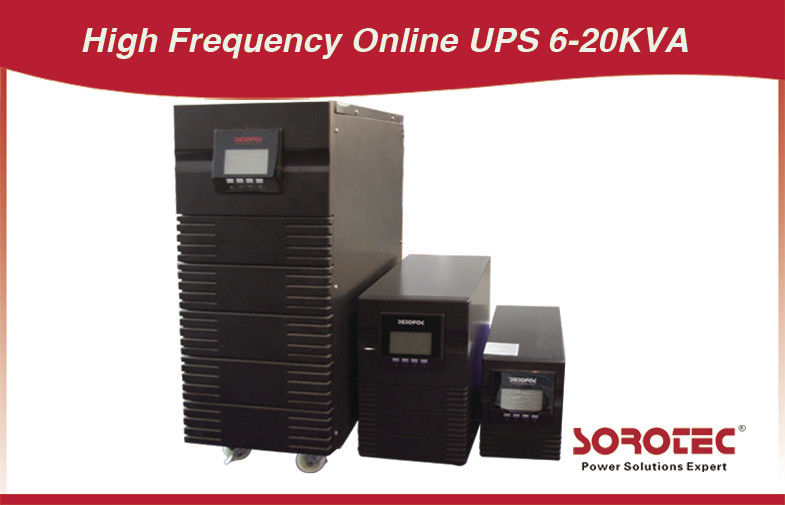

Large Image :  1ph in / out 60Hz 2A 110V UPS HP9116B Series 6KVA / 4800W, 10KVA / 8000W

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: HP9116B 6-10KVA
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Detailed Product Description
High Light:

110v step up transformer

,

step up transformer 110v

1ph in / out 60Hz 2A 110V UPS HP9116B Series 6KVA / 4800W, 10KVA / 8000W



Key Features:
Widely used to computer equipments, telecommunication systems and Industrial automatic control equipments.


Truly online design, different from offline, it can adjust the input voltage, filtering, when the AC break off, the UPS will provide an uninterruptible power source from the backup batteries.



Large blue back light LCD for detailed Real-time UPS status display.


Advanced online pure sine wave power supply system, with bypass repair switch, It can
provide a reliable, high quality AC power source to the precision equipments, can be used widely in different fields.


UPS will change to bypass mode when overloading or inverter fault, when overloading remove, UPS will turn to inverter mode automatically.


N+N Parallel Redundancy and Capacity expansion for 6-20K(up to three units)






Applications:

Servers,  Data-center,  critical network devices,  Sensitive electronic equipment,  Telecom…





Technical Specifications of Online UPS HP9116B 6-10K (1Ph in/1Ph out)

Model

HP9116B 6-10KVA

6KT

6KT-XL

10KT

10KT-XL

Rated Power

6KVA/4800W

10KVA/8000W

Rated Voltage

200/208VAC

<<<
Frequency<>><>><>>

50/60 Hz

Input

Voltage Range

176~279VAC(±3VAC)

Frequency Range

50HZ:(46~54HZ); 60HZ:(56HZ~64HZ)

Power Factor

0.98

Output

Voltage Regulation

200/208X (1±2%)VAC

Frequency Regulation

50/60 Hz±0.05Hz

Power factor

0.7/0.8(Optional) Standard 0.7

Voltage distortion

Linear load<3%    Non-linear load<6%

Overload

Capability

110%~150% for 30s change to bypass model,
Recover after load normal

Current Crest Ratio

3;1

Transfer time

0ms(AC mode→ Battery mode)

Battery

DC Voltage

240VDC

Recharge Time

7hrs to 90% of capacity after full load discharge

Recharge Current

2A

4.2A

2A

4.2A

Display

LCD

Display input/output Voltage,
Frequency,  Battery voltage,
Battery capacity,  Loading rate.

Communication

Interface

Smart RS232, SNMP card(optional), USB(optional)

Environment

Operation Temperature

0~40℃

Humidity

0~95% non-condensing

Storage Temperature

-25℃~55℃

Sea level elevation

<1500m

Noise Level(1m)

<55dB

Physical
Characteristic

Wright(KG)

N.W.

81

35.5

84

36

G.W.

89

39.5

91

42

Dimension(D x W x H)mm

570 X260 X717
