Product Details:
Payment & Shipping Terms:
|
| Phase: | Three Phase | Type: | On Line |
|---|---|---|---|
| Protection: | Short Circuit | Standby UPS: | Sine Wave Output UPS |
| Classification: | Lighting/Power | Output Capacity: | Large Type |
| Standby Time: | Long-acting Machine | Application: | Air Condition |
| High Light: | online ups suppliers,online ups power supply |
||

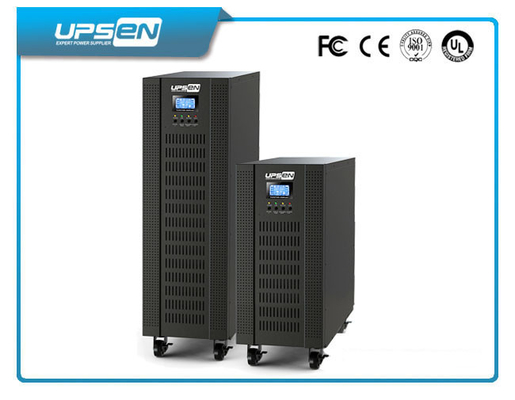

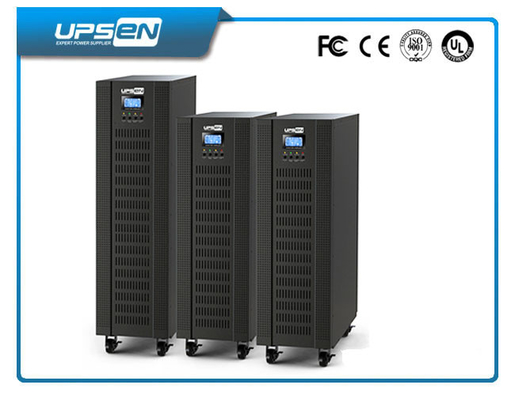

UPS Overview
1: Online UPS with 3 Phase 380V 400V 415Vac Input and 1 Phase 220V 230V 240Vac Output
2: High Frequency UPS with RS232 & USB Port and SNMP Card Slot
3: UPS with Large Blue LCD Display
4: UPS with True Double Conversion Tech
5: UPS with EPO and Maintenance Bypass Switch
Key Features
1 Active input power factor correction 0.99
2 50Hz/60Hz frequency converter mode
3 3-stage extendable charging design for optimized battery performance
4 Maintenance bypass available
5 SNMP/USB/RS-232 communications
6 Programmable power management outlets
7 Emergency power off function (EPO)
8 Generator compatible
9 Charger capacity expansion to 12A for long-run models
10 True double-conversion on line UPS
11 DSP technology guarantees high performance
12 Output power factor 0.8
13 Standard backup UPS and long backup UPS in one integrated unit
14 Adjustable battery number from 16 pcs to 20 pcs
15 Adjustable charging current via LCD or software
16 Wide input voltage range (110-300 VAC)
Technical Specification
VIEW STAR SERIES ONLINE UPS SELECTION GUIDE |
|||||
| MODEL | VS31 10K (L) | VS31 15K (L) | VS31 20K (L) | VS31 30K (L) | |
| PHASE | 3 phase in / 1 phase out | ||||
| CAPACITY | 10000 VA / 8000 W | 15000 VA/12000 W | 20000 VA/16000 W | 30000VA/24000W | |
| INPUT | |||||
| Nominal Voltage | 3 x 400 VAC (3Ph+N) | ||||
| Voltage Range | 305-478 VAC (3-phase) @ 100% load 190-520 VAC (3-phase) @ 50% load |
||||
| Frequency Range | 46~54 Hz or 56~64Hz | ||||
| Power Factor | >= 0.99 @ 100% load | ||||
| OUTPUT | |||||
| Output Voltage | 208/220/230/240VAC | ||||
| AC Voltage Regulation (Batt. Mode) | ± 1% | ||||
| Frequency Range (Synchronized Range) | 46~54 Hz 50 Hz / 56~64 Hz 60 Hz | ||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | ||||
| Current Crest Ratio | 3:1 (Max) | ||||
| Harmonic Distortion | Less than 2 % THD (Linear Load) Less than 5 % THD (Non-linear Load |
||||
| Transfer Time | AC Mode to Batt. Mode | zero | |||
| Inverter to Bypass | zero | ||||
| Waveform (Batt. Mode) | Pure Sine Wave | ||||
| EFFICIENCY | |||||
| AC Mode | 89% | 89% | 89% | 90% | |
| Battery Mode | 86% | 88% | 87% | 89% | |
| BATTERY | |||||
| Standard Model | Battery Type | 12 V / 9 AH | |||
| Numbers | 16 pcs | 16 pcs x 2 strings | 16 pcs x 3 strings | ||
| Typical Recharge Time | 9 hours recover to 90% capacity | ||||
| Charging Current (max.) | 1A | 2A | 2A | 2A | |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) | ||||
| Long-run Model | Battery Type | Depending on the capacity of external batteries | |||
| Numbers | 16pcs(192V) | 16pcs(192V) | 16pcs(192V) | 20pcs(240V) (18-20adjustable) | |
| Charging Current (max.) | 4A | 4A | 4A | 12A | |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) | ||||
| INDICATORS | |||||
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions | ||||
| ALARM | |||||
| Battery Mode | Sounding every 4 seconds | ||||
| Low Battery | Sounding every second | ||||
| Overload | Sounding twice every second | ||||
| Fault | Continuously sounding | ||||
| PHYSICAL | |||||
| Standard Model | Dimension, D X W X H (mm) | 592 X 250 X 576 | 815 x 250 x 826 | 815*300*1000 | |
| Net Weight (kgs) | 83 | 164 | 234 | ||
| Long-run Model | Dimension, D X W X H (mm) | 592 X 250 X 576 | 592 X 250 X 576 | 815 x 250 x 826 | |
| Net Weight (kgs) | 28 | 40 | 64 | ||
| ENVIRONMENT | |||||
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) | ||||
| Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter | ||
| MANAGEMENT | |||||
| Smart RS-232 | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC | ||||
| USB | |||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||
* Long-run model is only available in 200/208/220/230/240VAC systems.
