Single Phase 6Kva High Frequency Online UPS 220Vac / 120Vac / 110Vac

Large Image : Single Phase 6Kva High Frequency Online UPS 220Vac / 120Vac / 110Vac

Product Details:

Place of Origin:	China
Brand Name:	IWELL
Certification:	CE/FCC/ISO9001
Model Number:	CE6K(S)

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiation
Packaging Details:	shipping carton + pallet
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	3,000pcs per month

Contact Now

Detailed Product Description

Phase:	Single Phase	Wave:	Pure Sine Wave
Power Factor:	0.8	Transfer Time:	0ms
Capacity:	6Kva	Display:	LCD
Battery Voltage:	192Vdc	Battery:	Exclude External Lead Acid Battery
High Light:	220V ups Power Supply , single phase ups systems

LCD Display 220Vac / 120Vac / 110Vac High Frequency Online UPS 6-10Kva

DSP Technology: The advanced DSP digital control technology enable UPS more stable performance.
Environment Friendly: This UPS is eco-designed and manufactured to meet the China local pollution control requirement of Electronic Products, which means it will cause no harm to environment and human beings in normal usage.
Active input power factor correction (PFC)
Wide range of input voltage and frequency
Zero power switch delay
Active Load Management
Sufficient Expansion Slots

Features:

Pure on-line double conversion design
Wide input range
Flexible intelligent monitoring program and strong communications function
Compact design
Precise utility power synchronizing system
Cold start function
Perfect protection
Power conservation UPS
LCD man-machine conversation platform design

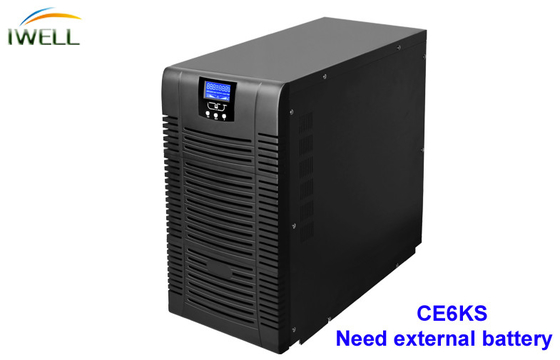

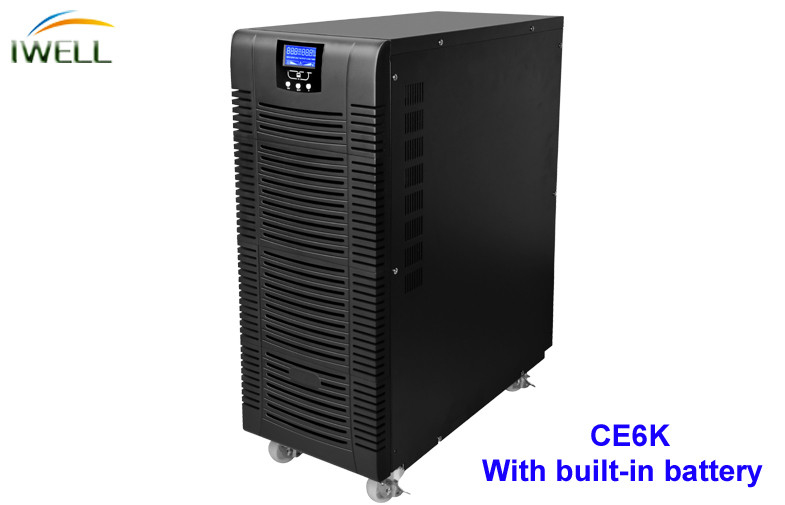

CE Series LCD Display 220Vac / 120Vac / 110Vac High Frequency Online UPS CE6K CE6KS
Model	CE6K	CE6KS	Comments
Input
Input voltage
Rated voltage	220VAC
Phase	Single phase with ground
Turn on voltage range	(120±5～274±5)VAC
Bypass voltage range	(60±5～300±5)VAC		Could be adjusted by software.
Bypass low loss	60VAC~220VAC(default 60VAC)
Bypass low comeback	Low loss +5VAC
Bypass high loss	220VAC~300VAC(default 300VAC)
Bypass high comeback	High loss -5VAC
Line low loss/comeback	(120±5) VAC /(140±5) VAC		load≤50％
	(150±5) VAC /(165±5) VAC		50％＜load≤80％
	(160±5) VAC /(175±5) VAC		80％＜load
Line high loss/comeback	(274±5)VAC/(260±5)VAC
Input frequency
Rated frequency	50Hz
Frequency low loss	(40~49) ±0.2Hz(default:46Hz)		Could be adjusted by software.
Frequency low comeback	Frequency low loss +0.5Hz
Frequency high loss	(51~60)±0.2Hz(default:54Hz)
Frequency high comeback	Frequency high loss -0.5Hz
Input power factor
Input power factor	> 0.99		220VAC,full R load
Generator	Support generator input		Generator rating≥2*UPS rating
Input current
Rated current	25A	27A
Input THDI	10%
Output protection
Rating protection	32A Breaker
Output power
VA/watt	6000/4800
Rated voltage	220VAC		Sine wave
Voltage range	200/208/220/230/240VAC		Could be adjusted by software. 10% derating for 208VAC/200VAC.
Voltage regulation	±1%
Voltage distortion	≤6％		Full RCD load
	≤2％		Full R load
DC offset	≤200mV
Transient response	≤9％		R load 0％～100％～0％
	≤6％		R load 20％～100％～20％
Transient recovery	≤60ms voltage recovery to 90%		Full RCD load
Bypass output before turn-on	YES
Crest ration	3:01
Output frequency range
Normal mode	1,Same as input frequency(46Hz~54Hz)
	2,50Hz(Input frequency>54Hz or
	Input frequency<46Hz)
Battery mode	(50+0.1) Hz
Slew rate	1 Hz/Sec
Efficiency
Normal mode	> 90%
Battery mode	> 88%
Overload	Overload warning only		105%±5%≤load
Normal mode/battery mode	1min,then transfer to bypass and alarm.		105%±5%<load≤125%±5%
	30S,then transfer to bypass and alarm.		125%±5%<load≤135%±5%
	100mS, then transfer to bypass and alarm.		load>135%±5%
Automatically retransfer	YES
Short protection
Normal/battery mode	YES
Transfer time
Normal to battery mode	0mS
Battery to normal mode	0mS
Normal to bypass mode	<4mS		0mS(option)with load
Bypass to normal mode	<4mS		0mS(option)with load
Battery and charger
Battery
Rated voltage	192VDC
Type/Rating	7AH/12V	/
Battery quantity	16 PCS
Backup time	> 14min		Half load
Protection
Low alarm voltage / comeback voltage	(180.8V±4V)/ (188.8V±4V)
Shutdown voltage/ comeback voltage	(176V±4V)/ (184V±4V)	(176V±4V)/ (184V±4V)/	Load < 1000W
	(152V±4V)/ (160V±4V)/	(160V±4V)/ (168V±4V)/	Load >= 1000W
DC protection
Overcharge protection/ comeback voltage	(249.6V±4V) / (216V±4V)
Leakage current	< 500uA
Over discharge protection	14.5h		Could be set by software
Battery test
Battery weak	YES
Battery fault	YES
Charger
Output voltage	(219.2±3)VDC
Charge time	7 hours to 90％ capacity
Charge current	1A	5.5A
Interface
Alarm silence	YES
DC power turn-on	YES
Automatically retransfer	YES
Audio alarm
Battery mode	Beep/4s
Battery low/charger fault	Beep/1s
UPS fault	Continue beep
Overload	Beep/1s
Bypass mode	Beep/2Min
L/N inverse	Beep/2Min
Communication
RS232 interface	YES
Intelligent slot	YES
Monitor software	Appending with UPS
Cooling
Force air cooling
Display
LCD/LED displays UPS status
Environment
Work temperature	0℃～40℃
Altitude	＜1000m
Audible noise	≤55dB
Storage temperature	－15℃～45℃
Work humidity	20%～95％
Standard
EMS
ESD	IEC61000-4-2		Level4
RS	IEC61000-4-3		Level3
EFT	IEC61000-4-4		Level4
Surge	IEC61000-4-5		Level4
EMI
Conducted	EN55022		Class B
Radiated	EN55022		Class B
Safety
Safety	GB4943-2001/IEC62040-1
Transportation
Drop test	GB-T4857-18
Vibration test	B-WR1-129(GB-T14715-93)
Machinery features
Size
Outline dimension and net weight
L * W * H (mm)	560260717	533260501
Net weight(Kg)	61.5	21

Optional functions
60Hz			Set by software
Converter mode			Set by software
ECO	Optional		Available and set by software
EPO	Optional
LCD display	Optional
