Product Details:
Payment & Shipping Terms:
|
Vertical Resolution: | 5000*2048 Pixels | Water-proof Grade: | IP68 |
---|---|---|---|
Vehicle Scanning Image: | B/W, Color | Enterprise: | Factory |
Operating Voltage: | 110-240V AC, 50-60HZ | Storage Temperature: | -20℃ To +75℃ |
Camera: | Color | Technical Training: | Free |
Warranty: | 18 Months | ||
High Light: | under vehicle inspection systems,surveillance system |

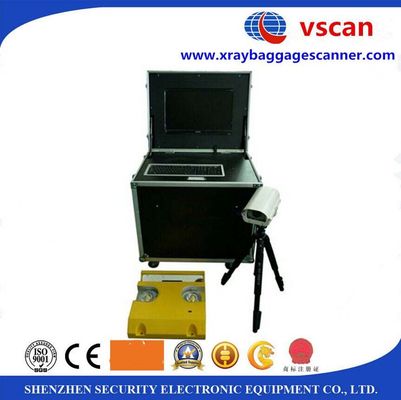

High Resolution Security Under Vehicle Surveillance System 50 - 60hz

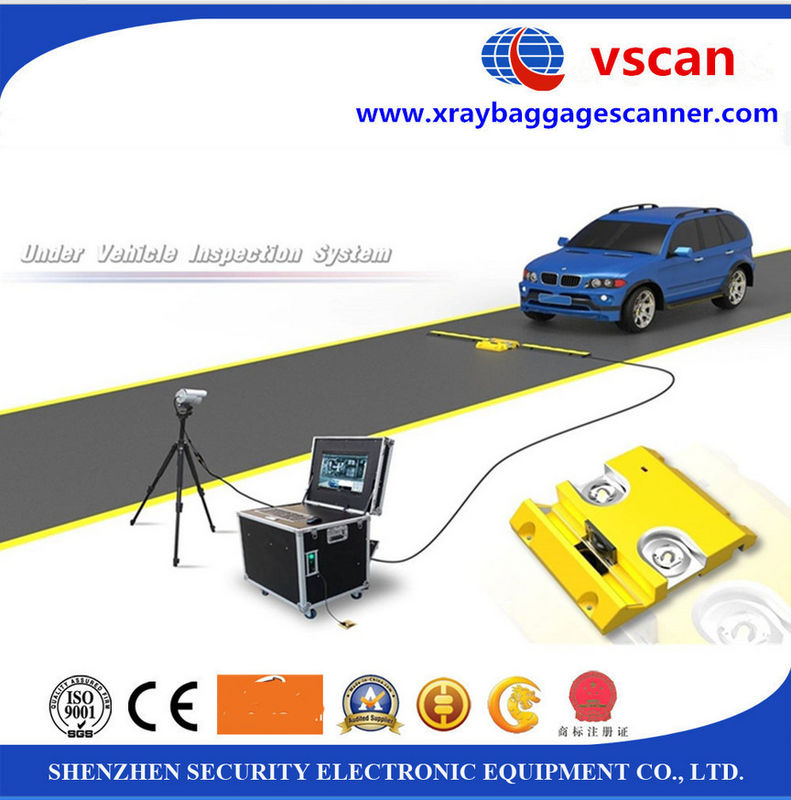

VSCAN Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom. AT3000 UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.
Range of application:
Features:

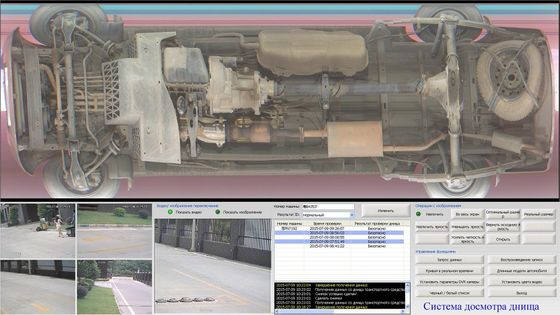

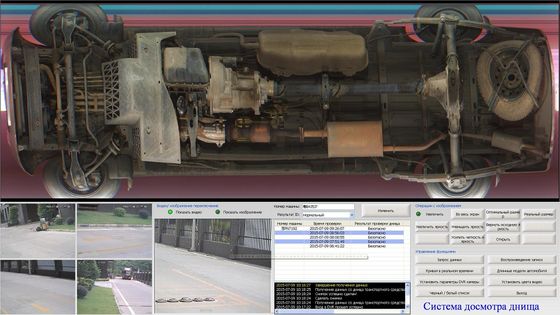

Black and white under vehicle scanning camera:
Vertical resolution of the image: |
2048 pixels |
Check the width viewing angle: | not less than 4 meters |
Speed of vehicle: | 1~65km/h |
Effective FOV: | not less than 170° |
Auxiliary light: | 100W |
Bearing weight: | more than 30T |
Waterproof grade: | IP68 meet the condition of working around the clock |
Scanning device weight: | 18KG |
Scanning device volume: | 410mm×370mm×93mm |
Communication interface: | RS232/RS422 |
Operating Temperature: | -10℃ to 55℃ |
Storage temperature: | -40℃ to +75℃ |
Operating voltage: | 110-240V AC, 50-60HZ |
Color under vehicle scanning camera:
Camera: Sensor | line scans CCD |
Resolution: | 5000*2048 pixels |
Power Supply | 24VDC, 3A |
Pixel : 2096 x3 ; | Type:Color |
Horizontal Frequency : | 9K |
Min operate time : | 110us |
The length of the line array : | 29mm |
Pixel size : | 14um x 14um |
Sampling bits wide : | 8bit |
Dynamic Range : | 76db |
Sensitivity : | 15,21,37V/uJ/cm2(wave |
Transmission mode : | (Gigabit Ethernet) /100m |
Power Dissipation : | less 8W,12V |
Working Temperature: | 0℃ to 60℃ |
1. Free training in our factory
2. Accept arrange engineer to your country with additonal cost
3. After-sales service online 18/24 hours
4. Remote control the machine for maintenance diagnosing
5. Free spare parts supply during the warranty
6. Exclusive agent protection and special support for market
7. OEM and ODM service accept
