Product Details:
Payment & Shipping Terms:
|
| Waveform: | Pure Sinewave | Output Power Factor: | 1 |
|---|---|---|---|
| Phase: | Single Phase | Protection: | Over Load/Current/Voltage, Short Circuit Etc |
| Display: | LCD/LED | H.S. Code: | 8504403090 |
| High Light: | solar power inverter for home,all in one Inverter |
||
Hybrid Solar Inverter 500w 1000w 2000w 3000w Inbuilt 12v / 24v / 48vdc Mppt Controller
Model: Solar Inverter Controller All in one Cosmos Star Series 1000W-6000W (1ph in/1ph out)
Hybrid Inverter Overview
1 . Inverter Buit-in MPPT Solar mppt charger controller 12V/24V/48Vdc 20/30/40/50/60A
3 . Hybrid Inverter with both PV Input and AC Input
4 . Inverter inbuilt AC Charger 35 - 70Amp
5 . With RS232 Port
Key Features:

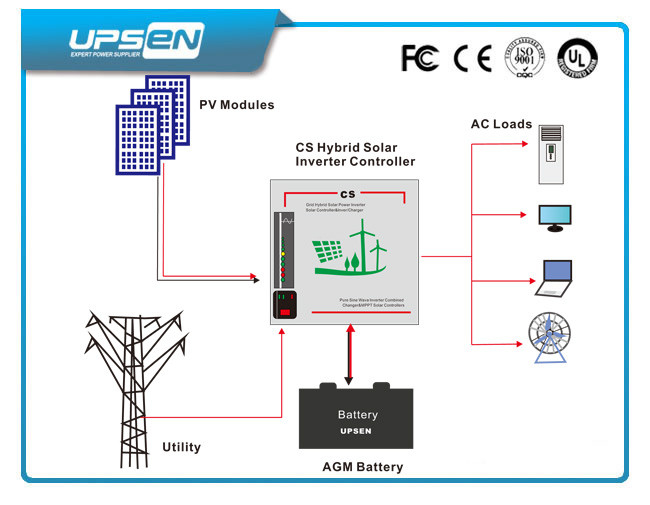

1: Professional off grid solar system solution, which is a combination of big power inverter and solar controller
2: Working modes switches automatically– AC Grid bypass mode, inverter mode, AC Charging mode, solar
charging mode
3: Pure sine wave output which matches wave form of AC grid no matter is on AC grid mode or inverter mode,
workable on inductive load
4: Remote control & RS232 communication port
5: Power saver mode
6: Four stages smart charging, charging current adjusted automatically
7: DIP switch optional: Selectable charging voltage for various battery type
8: Manual control input&output breakers
9: AC Grid priority & battery priority working mode as selectable
10: AC grid mode: AC Bypass supplies load when AC is normal, battery invert AC supplies load when AC is off
11: Battery priority: battery invert supplies load when battery get full-charged; AC bypass supplies load when battery
low and at the meantime battery get charged from solar controller. It transfers back to battery invert mode when battery
get full charged. It makes full use of solar energy and saves electricity.
12: LCD&LED Screen for option
13: Inbuilt MPPT Solar Charger Controller 20/30/40/50/60A, AC Charger 35 - 70A, with DC Voltage 12/24/48VDC
14. Easy to install & easy to operate & easy to solve
15. Low DC voltage supports home & office appliances
Technical Specification
|
Mode NO. |
CS600 |
CS1000 |
CS2000 |
CS3000 |
CS4000 |
CS5000 |
CS6000 |
|
Rated Power |
600W |
1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
|
AC INPUT |
|||||||
|
Phase&Waveform |
Single pahse&Pure Sine Wave |
||||||
|
Voltage |
110VAC/120VAC/220VAC/230VAC/240VAC |
||||||
|
Fequency |
50HZ/60HZ(Auto adjust) |
||||||
|
Voltage range |
95-127VAC/194-253VAC |
||||||
|
Frequency range |
48-54HZ/58-64HZ |
||||||
|
AC Output |
|||||||
|
Waveform |
Pure Sine wave and single phase |
||||||
|
Voltage |
110VAC/120VAC/220VAC/230VAC/240VAC |
||||||
|
Frequency |
50HZ/60HZ |
||||||
|
Peak Power |
1800W |
3000W |
6000W |
9000W |
12000W |
15000W |
18000W |
|
Battery |
|||||||
|
Battery DC |
12/24VDC |
12/24VDC |
12/24/48VDC |
24/48VDC |
|||
|
MAX charging cunrrent |
20A-75A |
||||||
|
Battery type |
GEL,AGM,Sealed lead acid |
||||||
|
MPPT Controller |
|||||||
|
PV Input |
15-30VDC For 12VDC/30-55VDC For 24VDC |
||||||
|
MAX charging cunrrent |
20/30/40/50/60AMP |
||||||
|
MAX Ouput current |
15A |
||||||
|
for DC laod |
|||||||
|
Transfer efficiency |
|||||||
|
MPPT efficiency |
more than 95% |
||||||
|
Line Mode |
more than 95% |
||||||
|
Battery Mode |
more than 85% |
||||||
|
Power Saver |
Available when load is less than 50A |
||||||
|
Transfer time |
10ms |
||||||
|
Indicator |
|||||||
|
7-LED Indicators |
Left to right:1.Line Mode(Green),2.Inverter Mode(Green),Charging Mode(Yellow),4.Full Charged(Green), |
||||||
|
5.Over Temp(Red),6.Over Load(Red),7.Saving Mode(Green) |
|||||||
|
2-LED Indicators on MPPT |
Power/CHG Mode |
||||||
|
Dimension |
486*400*181mm |
486*432*181mm |
|||||
|
Weight |
22KG |
26KG |
28KG |
33KG |
45KG |
52KG |
56KG |
