Product Details:
Payment & Shipping Terms:
|
| Product Name: | DC To DC Power Supply | High Efficiency: | 91% |
|---|---|---|---|
| Input: | 36-72V DC | Output: | 4.2V DC / 30A |
| Output Power: | 126W | Case Material: | Metal, Aluminium |
| High Light: | switching dc power supply,switching mode power supply |
||

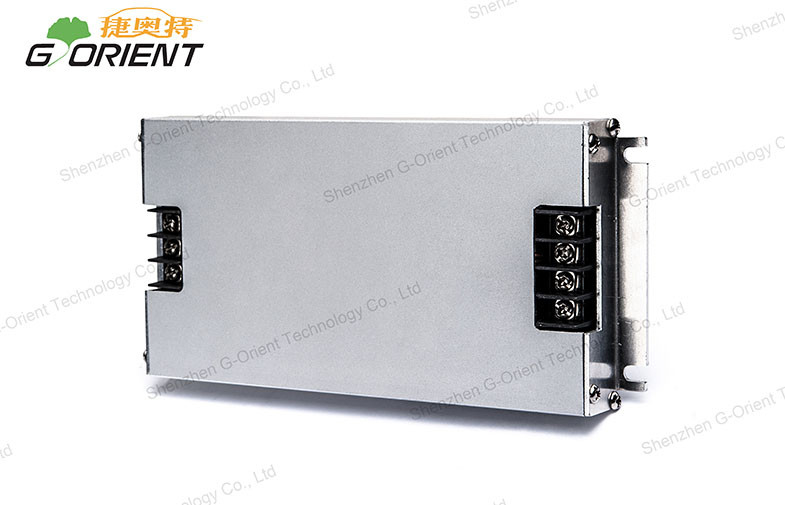

Taxi Advertising Board DC to DC Power Supply 126W with Aluminum metal shell
Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.
Features:
* To prevent car screen flower screen, the splash screen and two horizontal line design
* Aluminum metal shell,natural cooling
* Through the EMC certification
* Low output ripple and noise
* 2 years warranty
* Input reverse connect protection
* High efficiency 94% & small size
Specifications:
|
Switching power supply |
NID-150-4.2E |
|
|
OUTPUT |
DC Voltage |
4.2V |
|
Current Range |
0~30A |
|
|
Rated Current |
30A |
|
|
Rated Power |
126W |
|
|
Ripple & Noise(max.) |
<100mVp-p |
|
|
Voltage set point accuracy |
+/- 3.0%Vo max |
|
|
Over-current protection |
>120%io,hiccup |
|
|
Line Regulation |
0.2%Vo max |
|
|
Load Regulation |
0.2%Vo max |
|
|
Short-circuit protection |
Hiccup |
|
|
Hold up time |
>8mS |
|
|
Overshoot and undershoot |
< +/- 5.0% |
|
|
INPUT |
Voltage Range |
DC36-72V |
|
Frequency Range |
BW=20MHz |
|
|
Efficiency(Typ.) |
91% |
|
|
DC Current |
<25A |
|
|
Inrush Current(Typ.) |
100A at DC Cold start |
|
|
Leakage Current |
Input-Output< 0.2mA ; Input-PG:<0.3mA |
|
|
Environment |
MIBF |
>2 million hrs |
|
Temp.Coefficient |
< 0.02%/℃ |
|
|
Storage Temperature range |
-55 ~ +115℃ |
|
|
Operaing board Temperature range |
-25 ~ +65℃ |
|
|
Safety |
Safety standards |
CE |
|
Withstand Voltage |
DC40V |
|
|
Others |
Dimension |
152*80*18mm (L*W*H) |
|
Packing |
0.6kg; 20pcs/12Kgs |
|
|
|
|
|
|
|
||
Competitive Advantage:
* Low output ripple and noise
* Output over-current,short-circuit,over-load,over-voltage protection
* Ultra-thin 18mm
* CE / ROHS / FCC approval
* High efficiency up to 94%
* The two level output over voltage protection
Company Advantage:
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM,any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area,ideas of design and all your private information
5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
