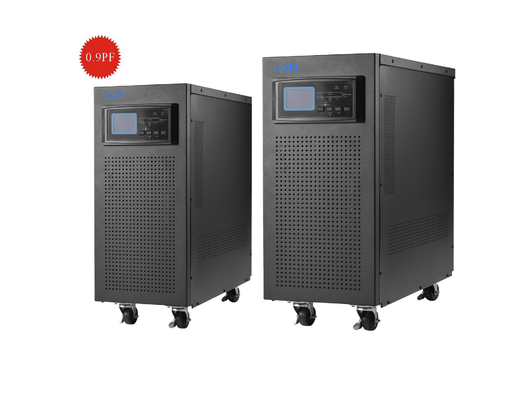

Online High Frequency UPS 6-20kva With PF 0.9 And DSP controller-- Top high quality !

Online High Frequency UPS 6-20kva With PF 0.9 And DSP controller-- Top high quality !
Online High Frequency UPS 6-20kva With PF 0.9 And DSP controller-- Top high quality ! Online High Frequency UPS 6-20kva With PF 0.9 And DSP controller-- Top high quality ! Online High Frequency UPS 6-20kva With PF 0.9 And DSP controller-- Top high quality ! Online High Frequency UPS 6-20kva With PF 0.9 And DSP controller-- Top high quality ! Online High Frequency UPS 6-20kva With PF 0.9 And DSP controller-- Top high quality !

Large Image :  Online High Frequency UPS 6-20kva With PF 0.9 And DSP controller-- Top high quality !

Product Details:
Place of Origin: Shenzhen China
Brand Name: HRD
Certification: CE, ISO9001-2000
Model Number: PCP06S, PCP06L,PCP10S,PCP10L,PCP3110,PCP3115,PCP3120
Perfect application: network,, servor, precision equipment etc..
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: 500usd-1350usd;
Packaging Details: 1pcs/1ctn with wooden pallet
Delivery Time: within 3weeks after down payment
Payment Terms: TT or LC at sight
Supply Ability: 1000pcs/months
Warranty: 18 months after shipment with 1.5% free spares, 10years spares support
Detailed Product Description
High Light:

online power supply

,

online uninterruptible power supply

Online High Frequency UPS 6-20kva With PF 0.9 And DSP controller-- Top  quality !



Quick Detail:

1)Phase: single and 3/1 PHASE

2)Output voltage:220/230/240Vac +/-1%(static)

3) Features:  DSP technology, load power factor 0.9,Genset compatible



POWER Castle PLUS Series 6-10/3.1 10 -20KVA

1.DSP control ,with excellent performance and comprehensive protections for load and UPS

2. Output power factor 0.9,offering more stronger load capability

3.Intelligent fan speed control ,with 4 levels varying according to load and temperature

4.Wide input range ,support kinds of generator

5.Dual input AC source supportable

6. EPO(emergency power off)

7.Event log up to 100 events, recording UPS running time and critical memories

8. High efficiency, (ECO mode)option

9.Intelligent N+X parallel redundancy, up to 6units

10.AC and cold start function

11. Multiple language display with large LCD(7 languages), plenty of operation information

12. Conformal coating PCB for more critical operation environment

13. 3:1phase into single phase, easy convertible (10-20Kva)

14. Frequency Convertor mode:input 50Hz,output 60Hz or vice versa

15. Most advanced 3 electrical level inverter designfor 15-20kva

16. Extremely low failure rate and easy repair(MTBF>80000h,MTBR<0.5h)

Online High Frequency UPS 6-20kva With PF 0.9 And DSP controller-- Top high quality ! 017.Intelligent  10A charger,prolong battery lifespan by above 20%:interval three-stage charging process( constant current.constant voltage, float charging) with inverse battery connection protection(option)

18. Multiple communication ports ,SNMP card, AS400 card(optional)



 Technical Specification:

Model

PCP06S

PCP06L

PCP08S

PCP08L

PCP10S

PCP10L

PCP12S

PCP12L

PCP3110S

PCP3110L

PCP3115L

PCP3120L

Capacity(kva/kw)

6kva/5.4kw

8kva/7.2kw

10kva/9kw

12kva/10.8kw

10kva/ 9kw

15kva/13.5kw

20kva/18kw

Input

Phase

1/1phase, 1wire+N+G

3/1phase, 3wires+N+G

Input PF

≥0.999

≥0.96

Input

voltage

Low

transfer

L-N:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load

Low back

L-N:188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load

High transfer

L-N:286 VAC ± 3%

High back

L-N:270 VAC ± 3%

Input frequency

40-70hz

Battery

Rating/type

12V/7Ah

12V/7Ah

12V/9Ah

12V/9Ah

depend on external battery capacity

quantity

20

20

20

20

Back up

time

Standard model

3-10mins depends on load

Long-run model

depend on external battery capacity

DC voltage

192/240Vdc

Charge voltage

220/275Vdc

Recharging current

Standard model

1A

4A/10A(option)

Long-run model

4A

Output

Output  P.F

0.9

Output voltage

220/230/240Vac +/-1%(static)

Frequency

46~54Hz or 56~64Hz (Line mode)
50/60Hz ± 0.1Hz ( Battery mode)

Crest factor

3:1(max)

Wave distortion

Less than 2% (linear load), Less than 4% Non-linear load

Over load

105% < load < 125% for 1min, 125% < load < 150% for 30s

Efficiency

92%(Line mode)

98%(ECO mode)

Transfer time

0ms (AC-Battery);

0 ms(bypass-inverter)

Indicator

LCD Panel

UPS status, Load level, Load watt, Load va, Battery level, Input/output voltage, output current,

Bus voltage, Temp, and warning and fault code and events

Alarm

Battery Mode

Sounding every 4 seconds( can mute)

Low Battery

Sounding every second

Overload

Sounding every second

Fault

Continuously sounding

Management

Smart RS-232/USB

Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC

Optional

SNMP/AS400/USB

Environment

Operation Humidity

0-90 % RH (non-condensing) @ 0- 40°C

Noise Level

Less than 55dBA @ 1 Meter

Less than 58dBA @ 1 Meter

Physical

Model

PCP06S

PCP06L

PCP08S

PCP08L

PCP10S

PCP10L

PCP12S

PCP12L

PCP3110S

PCP3110L

PCP3115L

PCP3120L

Net Weight (KG)

Standard model

62

63

79

80

86

N/A

Long-run model

20

21

29

30

36

49

Gross Weight

(KG)

Standard model

69

70

86

87

93

N/A

Long-run model

22

22

37

38

43

56.5

Unit Dimension

(D*W*H)mm

582×260×572 (including wheel height 642)

600×300×660

(including wheel height 740)

Packing (D*W*H)mm

680*360*810 (0.2CBM)

720*420*920 (0.28CBM)

Note: “S”   refers to “Standard model”,”L” refers to “Long-run model”

All specifi  cations subject to change without further notice; customized specifications are acceptable
