Product Details:
Payment & Shipping Terms:
|
| High Light: | Online Double Conversion UPS,DSP UPS,Long Backup UPS |
||
|---|---|---|---|

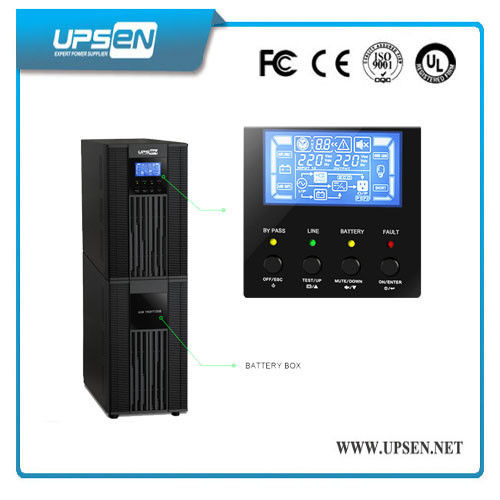

Online double conversion UPS with warranty for 3 years
Model:High Frequency Online UPS Green Star Series 10K-20Kva (3ph in / 1ph out)
Quick Read
1: High efficiency 93%
2: UPS with RS232/DB-9 Communication port
3: UPS with Economic operating mode (ECO)
4: UPS with stable perfromance and low fault rate less than 1/1000
5: UPS with warranty for 3 years and 2% free PCB Boards
Key Features
1:True double-conversion online UPS
2:DSP technology guarantees high performance
3:Output power factor 0.8
4:High transfer efficiency, highest can reach 90%
5:Wide input voltage range (110-300 VAC)
6:Input over/under-voltage protection
7:Automatic bypass
8:Selectable output voltage, frequency parameter and bypass function on the display and available to work with generators.
9:Fault isolation
10: Active input power factor correction 0.99
11:with temperature control function, which can save energy consumption.
12: RJ11, RJ45, SNMP/USB/RS-232 communications
Technical Specification
| GREEN STAR 6K/10K ONLINE UPS SPECIFICATION | |||
| MODEL | G6K (L) | G10K (L) | |
| PHASE | 1 phase in / 1 phase out | ||
| CAPACITY | 6000 VA / 4800 W | 10000 VA / 8000 W | |
| INPUT | |||
| Nominal Voltage | 208/220/230/240VAC | ||
| Voltage Range | Low Line Loss | 110 VAC ± 3% at 50% Load 176 VAC ± 3% at 100% Load | |
| Low Line Comeback | 120 VAC ± 3% at 50% Load 186 VAC ± 3% at 100% Load | ||
| High Line Loss | 300 VAC ± 3% | ||
| High Line Comeback | 290 VAC ± 3% | ||
| Frequency Range | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz | ||
| Power Factor | >= 0.99 @ 100% load | ||
| OUTPUT | |||
| Nominal Voltage | 208/220/230/240VAC | ||
| AC Voltage Regulation | ± 1% | ||
| Frequency Range (Synchronized Range) | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz | ||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | ||
| Current Crest Ratio | 3:1 (max.) | ||
| Harmonic Distortion | <= 3 % THD (Linear Load) <= 6 % THD (Non-linear Load) | ||
| Transfer Time | Bypass to Inverter (Line mode) | Zero | |
| Inverter to Bypass (Line mode) | Zero | ||
| Waveform (Batt. Mode) | Pure Sinewave | ||
| EFFICIENCY | |||
| Line Mode | 89% | 90% | |
| Battery Mode | 88% | 89% | |
| BATTERY | |||
| Standard Model | Battery Type | 12 V / 7 AH | 12 V / 9 AH |
| Numbers | 16 | 16 | |
| Typical Recharge Time | 9 hours recover to 90% capacity | ||
| Charging Current | Default:1.0 A ± 10%, Max.:2.0A ± 10% | Default:1.0 A ± 10%, Max.:2.0A ± 10% | |
| Float Charging Voltage | 218.4 VDC ± 1% | ||
| Long-run Model | Battery Type | Depending on applications | |
| Numbers | 16-20** (adjustable) | ||
| Charging Current | Default:4.0 A ± 10%, Max.:6.0A ± 10% | Default:4.0 A ± 10%, Max.:6.0A ± 10% | |
| Float Charging Voltage | 273 VDC ± 1% (based on 20 pcs batteries) | ||
| INDICATORS | |||
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions | ||
| ALARM | |||
| Battery Mode | Sounding every 4 seconds | ||
| Overload | Sounding twice every second | ||
| Fault | Continuously sounding | ||
| PHYSICAL | |||
| Standard Model | Dimension, D X W X H (mm) | 369 x 190 x 688 | 442 x 190 x 688 |
| Net Weight (kgs) | 60 | 75 | |
| Long-run Model | Dimension, D X W X H (mm) | 369 x 190 x 318 | 442 x 190 x 318 |
| Net Weight (kgs) | 21 | 23 | |
| ENVIRONMENT | |||
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) | ||
| Noise Level | Less than 55dBA @ 1 Meter | Less than 58dBA @ 1 Meter | |
| MANAGEMENT | |||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC | ||
| Optional SNMP | Power management from SNMP manager and web browser | ||
| *Derate capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 208VAC. | |||
| *If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated | |||
| one percent per 100m. | |||
| *Product specifications are subject to change without further notice | |||
* Long-run model is only available in 200/208/220/230/240VAC systems.
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
