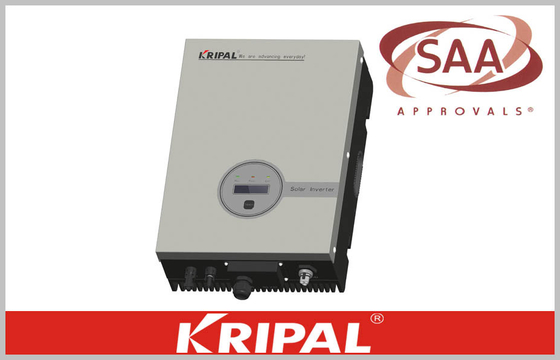

Grid Tie Power Inverter 1.7K 2.3K 3K Solar PV Inverter AC DC SAA

Grid Tie Power Inverter 1.7K 2.3K 3K Solar PV Inverter AC DC SAA
Grid Tie Power Inverter 1.7K 2.3K 3K Solar PV Inverter AC DC SAA

Large Image :  Grid Tie Power Inverter 1.7K 2.3K 3K Solar PV Inverter AC DC SAA

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE, SAA
Model Number: KSG-3K-NW
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Detailed Product Description
Type: On Grid Wave: Pure Sine
KW: 1.7K/2.3K/3K MPPT Efficiency: 99.9%
Euro Efficiency: 96.3% Power Factor: 1
High Light:

Solar Power Inverter

,

Solar Panel Inverters



Grid Tie Power Inverter 1.7K 2.3K 3K Solar PV Inverter AC DC SAA





KRIPAL has the Utility Model Patent, Design Patent and Ownership of Software Copyright for on-grid solar inverter




Grid tie solar PV inverter is one of the crucial parts in the PV system to feed the electricity to the public grid.

 Thanks to its new technology and novel algorithm, KSG series grid tie inverter is one of the most efficient and

 reliable grid tie inverters in the world.


Description:

1. The CPU intelligent program, not only enhances its working efficiency and reduces the interference of the

 electromagnetism, but also improves its output precision.
2. The photovoltaic inverter has soft start function. Even if with heavy load, it will not harm this product and the

appliances, which largely enhance its loading capacity.
3. The solar Inverter has high-voltage protection, low-voltage protection, over-temperature protection, over-load

 protection, short circuit protection, anti-solar protection  and other  auto  protection function, which guarantee the its quality and function.
4. The PV Inverter have sound and lack voltage alarm indication, charge indicator, charge fully indicator and

temperature control and making cold fan control.
5. The intelligent positive and negative pulse charge not only could protect and repair the storage battery but

charge more quickly and fully. In doing so, it can extend the life of the power inverter.
6. AC output voltage display function, very obviously and conveniently.
7. The Inverter has a small size, light weight, no noise and no pollution with a pleasurable outlook and many
colors for choosing.
8. This grid-tie Inverter is not only your ideal choice but also lash-up power in your life and work.


Specifications:

Project

KSG-3K6-NW

KSG-4K6-NW

KSG-5K2-NW

DC input

Max. DC power(W)

3600

4600

5200

Max. DC voltage(V)



550



Max. DC current(A)

18

23

26

MPPT voltage range

200-500

200-500

200-500

Shutdown / Start voltage

70/100

AC output

Rated AC Power(W)

3100

4000

4600

Max. AC power(W)

3400

4400

5000

Max. AC current(A)

16

22

24

Rated AC frequency range

230(180-270)

Power factor

1

THD under rated power

< 3%

Efficiency

Max. efficiency

97.40%

97.60%

97.60%

Euro efficiency(360VDC)

96.50%

97.10%

96.80%

MPPT adaptation efficiency

99.90%

General data

Dimension(L*W*D)(mm)

348*530*185

Weight

19

19.3

19.5

Mounting information

Wall bracket

Operating temperature range

-27- +60

IP protection degree

IP65

Isolation type

without transformer

Cooling concept

Natural

compulsory

Natural

Noise

< 30

< 40

< 40

Display

16*2 LCD

Data Communication interfaces

RS485/RS232

Warranty

5 Years



Competitive Advantage:

A. Hi efficient MPPT design, excellent inverter efficiency
B. High protection degreed: IP65
C. Efficient design of low-frequency isolation transformer
D. Wide input voltage range and MPPT voltage
E. High reliability due to compete protection function
F. Easy operation, installation and maintenance
G. Advanced anti-island technology


Efficiency:
Based on the efficient MPPT design, Excellent inverter efficiency, provide the greatest energy conversion.


Control:
the output is in sine wave with the same frequency and phase of grid,and the waveform deriation ratio is less than 3 percent.


Monitor:
All inverters can be monitored through the remote monit-oring system in real time.


Flexibility:
grid-connected, mounted indoors or outdoors. the broad product range allows for a tailored system design.


Easy installation:
run with different power inverters and determined the phase of power grid wiring automatically,Comply with the connection requirements of power grid in defferent country by simple settings.
