1000VDC 200Watts Polycrystalline Solar Panels Grade A Solar Cell And Safety Class II

1000VDC 200Watts Polycrystalline Solar Panels Grade A Solar Cell And Safety Class II
1000VDC 200Watts Polycrystalline Solar Panels Grade A Solar Cell And Safety Class II

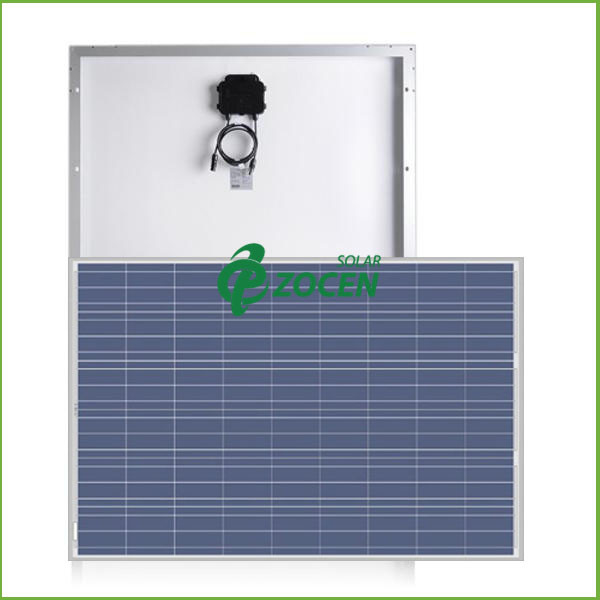

Large Image :  1000VDC 200Watts Polycrystalline Solar Panels Grade A Solar Cell And Safety Class II

Product Details:
Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCP6-54P-200W
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 24 pieces per pallet
Delivery Time: 5-10 days
Payment Terms: Ex works
Supply Ability: 30000pcs / month
Detailed Product Description
High Light:

polycrystalline solar module

,

polycrystalline silicon solar panel

1000VDC 200Watts Polycrystalline Solar Panels Grade A Solar Cell And Safety Class II









1> Quick Details

  • Item: 200W polycrystalline solar panel
  • Model: ZCP6-54P-200W
  • Solar Cell: 54pcs Grade A polycrystalline solar cell
  • Chubb Insurance: Product Liability Insurance (PCO) and Errors or Omissions Liability Insurance (E&O)
  • Safety Grade: Class II
  • Warranty: 10 years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25 years.
  • Panels meet highest international standards ISO9001 and ISO14001 and are certified with TUV, IEC61215, IEC61730, CE, CQC, CEC, MCS, BV



2>  Features:

  • Tempered glass to help reduce risk of damage.
  • Junction box with reliable bypass diodes.
  • Aluminium Frame
  • Operating temperature -30 to 85 degrees Celsius.
  • Anti- reflective coating to improve light absorption.
  • No extra freight charges apply
  • Anti-PID
  • Fire test certification
  • Ammonia corrosion certification
  • Salt mist corrosion certification



3> 215W Polycrystalline Solar Panel Electrical Characteristics

Maximum Power(Pmax)
200W
Power Tolerance
0~+3%
Open Circuit Voltage(Voc)
32.90V
Short Circuit Current(Isc)

8.35A

Maximum Power Voltage(Vmp)
26.20V
Maximum Power Voltage(Imp)
7.65A
Module Efficiency
13.60%
Max. System Voltage
1000VDC
Solar Cells

Polycrystalline156*156mm(6 inch)

Cells series
54PCS(6*9)
Bypass Diodes
6pcs 12A
Temperature Coefficients of Pmax
-0.47%/°C
Temperature Coefficients of Voc
-0.33%/°C
Temperature Coefficients of Isc
0.05%/°C
NOTC-Nominal Operating Cell Tepm.
45℃(±2°C)
STC Condition
1000W/m2, AM1.5, 25°C





4> 200W Polycrystalline Solar Panel Mechanical Characteristics

Solar Cells
54(6×9) polycrystalline cells156mm
Front Cover
3.2mmthick low iron tempered glass
Back Cover
TPT(Tediar-PET-Tediar)
Encapsulant
EVA(Ethylene vinyl acetate)
Frame
Anodized aluminum alloy, double wall
Diodes
6 Bypass diodes serviceable
Junction Box
IP65 rated, TUV certification
Connector
MC4 or compatible connector
Cables
Length:1000mm,/Section:4.0mm2
Dimension
1482*992*40(mm)
Weight
18KGS
Max Load
5400Pa





5> 200W Polycrystalline Solar Panel Packing configuration

Container
40“HQ
Module dimension
1482*992*40mm
Pieces per pallet
24 4
Pallets per container
30 15
Pieces per container
780





6> Quality Control

  • Rigorous quality control meeting the highest international standards
  • High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon
  • ISO 9001:2008 ,ISO 14001:2004 and OHSAS18001
  • IEC61215,IEC61730,Safety Class II,conformity to CE
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
  • CHUBB insurance company to guarantee the quality
  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Panel packaging optimized to protect product during transportation and minimize on-site waste.



7> Demanded by

  • Solar power station
  • Rural electrification, Small home power systems
  • Power supply for traffic, security, gas industry
  • 12V and 24V battery charging systems
  • Other industrial and commercial applications
