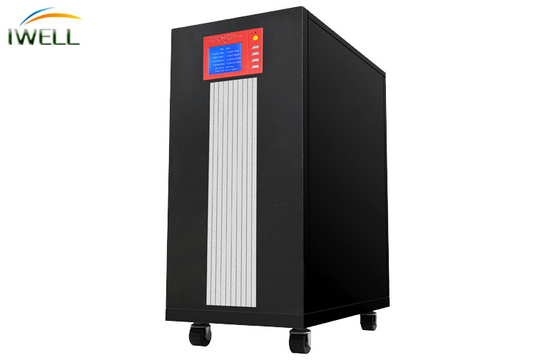

380Vac / 400Vac Double Conversion Low Frequency Online UPS Three Phase

380Vac / 400Vac Double Conversion Low Frequency Online UPS Three Phase
380Vac / 400Vac Double Conversion Low Frequency Online UPS Three Phase 380Vac / 400Vac Double Conversion Low Frequency Online UPS Three Phase 380Vac / 400Vac Double Conversion Low Frequency Online UPS Three Phase

Large Image :  380Vac / 400Vac Double Conversion Low Frequency Online UPS Three Phase

Product Details:
Place of Origin: China
Brand Name: IWELL
Certification: CE/FCC/ISO9001
Model Number: I33E10K, I33E20K, I33E30K, I33E40K
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: shipping carton
Delivery Time: 7-10 working days
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Detailed Product Description
Phase: Three Phase Wave: Pure Sine Wave
Power Factor: 0.8 Transfer Time: 0ms
Input/Output Voltage: 380Vac/400Vac Transformer: Isolated Transformer
Capacity: 10Kva,20Kva,30Kva, 40Kva Frequency: 50/60Hz
Battery: Lead Acid Battery Application: Industrial Equipment
High Light:

Uninterrupted Power Supply

,

industrial ups systems



380Vac / 400Vac Double Conversion Low Frequency  Three Phase Online UPS





Feature



1. DSP System, IGBT Technology
2. Environment Friendly
3. Active input power factor correction (PFC)
4. Wide range of input voltage and frequency
5. Zero power switch delay
6. Active Load Management
7. Sufficient Expansion Slots
8. The load power factor is 0.8
9. Generator Supportable
10. Large-screen LCD
11. wide in-put voltage range
12. advanced true double conversion On-line technology
13. deal for Data Centers in network and Industrial applications
14. perfect for the most demanding and delicate of applications





Application filed



1. Computers
2. Home Appliance, such as Fans and lights
3. Office, like computers with Printers
4. Aeronaoutics & Astronautics
5. Electronic & Telecom
6. Army Technology
7. Securities System
8. Sensitive Electronic Equipment
9. Wind Power System
10. Production Equipment
11. Military
12. Medical Systems
13. Network
14. Instrumentation
15. Servers and so on





I33E SERIES 10-30Kva  (3 phase in 3 phase out)

MODEL

I33E10K

I33E15K

I33E20K

I33E30K

Input Mains

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage & Range(V)

380V±25%

Frequency & Range(Hz)

46Hz-54Hz

Bypass Input

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage & Range(V)

380V±25%

Frequency & Range(Hz)

46Hz-54Hz

Output

Rated Power

10KVA/8KW

15KVA/12KW

20KVA/16KW

30KVA/24KW

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage & Stability

380V±2%

THDV

≤3%

Linear Load

≤10%

Non-linear Load

Output Power factor

0.8(Lag)

Tracking Fruquency & Range(Hz)

46Hz~64Hz

Fruquency & Stability(Battery Inverter)

(50+0.1)Hz/60+0.1)Hz

Overload Capability

Less than 105%±5% for overload alarm;

105%±5%~125%±5% for 2 minutes;

125%±5%~150%±5% for 30 second;

More than 150%±5% for 0.5 second;

Converting time(Normal Mode)

<1mS

Converting time(ECO Mode)

<25mS

System

System Efficiency(Linear Load)

≥80%

≥83%

≥85%

≥88%

System Efficiency(ECO Mode)

≥98%

Display

LCD+LED

EMS/EMI

Transmission

EN50091-2

Radiation

EN50091-2 CLASS-A

Harmonic Current

IEC1000-3-4

Resisting Interference

IEC 61000-4-2.3.4..6.8.9.11 Level III, IEC61000-4-5 Level IV

Safety Requirements

CCEE

Noise Level(1M)

≤55dB

Isolate Impedance(Ω)

>2M(500VDC)

Surge Current Protection

IEC60664-1 IV

Protecting level

1P21

Environment

Operating Temperature

0°C - 40°C

Elevation

<1000m

Storing Temperature

-15°C - 45°C

Operation Humidity

20% - 95%

Battery

192VDC(12V x 16)

384VDC(12V x 32)

Dimension(Width x height x length)mm

1045 x 455 x 830

Packing Size (Width x height x length)mm

525 x 1250 x 925



I33E SERIES 30-80Kva  (3 phase in 3 phase out)

MODEL (3 Phase Input/3 Phase Output)

I33E30K

I33E40K

I33E60K

I33E80K

Input Mains

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage & Range(V)

380V±25%

Frequency & Range(Hz)

46Hz-54Hz

Bypass Input

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage & Range(V)

380V±25%

Frequency & Range(Hz)

46Hz-54Hz

Output

Rated Power

30KVA/24KW

40KVA/32KW

60KVA/48KW

80KVA/64KW

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage & Stability

380V±2%

THDV

Linear Load

≤3%

Non-linear Load

≤8%

Output Power factor

0.8(Lag)

Tracking Fruquency & Range(Hz)

46Hz~64Hz

Fruquency & Stability(Battery Inverter)

(50+0.1)Hz/60+0.1)Hz

Overload Capability

Less than 105%±5% for overload alarm;

105%±5%~125%±5% for 2 minutes;

125%±5%~150%±5% for 30 second;

More than 150%±5% for 0.5 second;

Converting time(Normal Mode)

<1mS

Converting time(ECO Mode)

<25mS

System

System Efficiency(Linear Load)

≥88%

≥89%

≥90%

System Efficiency(ECO Mode)

≥96%

Display

LCD+LED

EMS/EMI

Transmission

EN50091-2

Radiation

EN50091-2 CLASS-A

Harmonic Current

IEC1000-3-4

Resisting Interference

IEC 61000-4-2.3.4..6.8.9.11 Level III, IEC61000-4-5 Level IV

Safety Requirements

GB4943-2001/IEC62040-1

Noise Level(1M)

≤55dB

Isolate Impedance(Ω)

>2M(500VDC)

Surge Current Protection

IEC60664-1 IV

Environment

Operating Temperature

0°C - 40°C

Elevation

<1000m

Storing Temperature

-15°C - 45°C

Operation Humidity

20% - 95%

Battery

384VDC



I33E SERIES 100- 200Kva  (3 phase in 3 phase out)

MODEL

I33E100K

I33E120K

I33E160K

I33E200K

InputMains

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage& Range(V)

380V±25%

Frequency& Range(Hz)

46Hz-54Hz, 56Hz-64Hz

Bypass Input

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage& Range(V)

380V±25%

Frequency& Range(Hz)

46Hz-54Hz, 56Hz-64Hz

Output

Rated Power

100KVA

120KVA

160KVA

200KVA

80KW

96KW

128KW

160KW

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage& Stability

380V±2%

THDV

Linear Load

≤3%

Non-linear Load

≤8%

Output Power factor

0.8(Lag)

Tracking Fruquency & Range(Hz)

46Hz-54Hz, 56Hz-64Hz

Fruquency & Stability

(50±0.1)Hz, (60±0.1)Hz

Overload

Less than 105%±5% for overload alarm;
105%±5%~125%±5% for 2 minutes;
125%±5%~150%±5% for 30 second;
More than 150%±5% for 0.5 second;

Capability

Converting time (Normal Mode)

<1mS

Converting time (ECO Mode)

<25mS

System

System Efficiency  (Linear Load)

≥90%

Display

LCD+LED

EMS
/EMI

Transmission

IEC EN62040-02

Radiation

Resisting

IEC 61000-4-2.4.5 Level IV, IEC61000-4-3 Level III

Interference

Safety Requirements

GB4943-2001/IEC62040-1

Noise Level (1M)

≤70dB

Isolate Impedance (Ω)

>2M(500VDC)

Surge Current  Protection

IEC60664-1 IV

Environment

Operating Temperature

0℃ - 40℃

Elevation

<1000m

Storing

(-15℃ - 45℃)

Temperature

Operation

20% - 95%

Humidity

Battery

384VDC

UPS Size(W x H x D)mm

850x1600x800

1300x1900x900

Package Size(WxHxD)mm

920x1777x870

1380x2055x986
