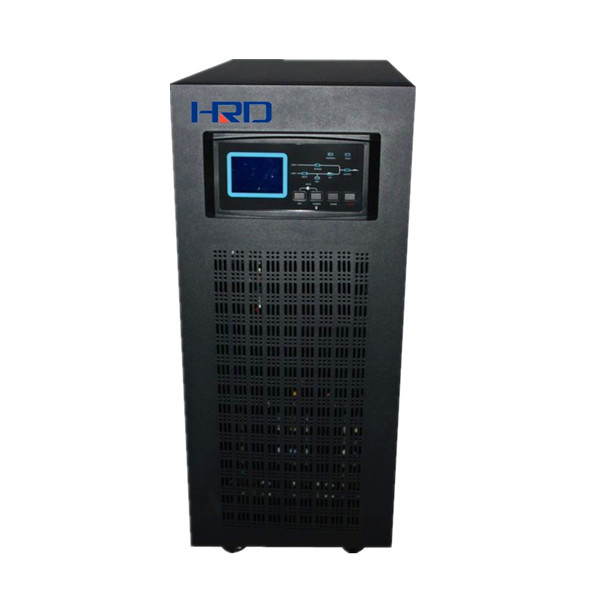

Power Safe Series Online Low Frequency UPS 4-40KVA

Model

PS04

PS06

PS08

PS10

3PS10KL

3PS15KL

3PS20KL

3PS30KL

3PS40KL

Rating capacity

4KVA

6KVA

8KVA

10KVA

10KVA

15KVA

20KVA

30KVA

40KVA

Phase

1:1

3:1

input

P.F

>0.98

>0.95

Rating voltage

220/230/240VAC

380/400/415VAC

Voltage range

Half load110-285V,full load 160-285v

380/400/415VAC±25%

Rating frequency

50Hz/60Hz

Frequency range

40-70Hz

THDi

<5%

<30%

Soft start

0 to 100% ,3 to 5 seconds

Charge

Float charge

220VDC

400Vdc

Current

5.5A (extendable)

1-30A(settable )

Protection

Charge voltage, over current protection, short circuit protection

Battery

Model

Lead acid maintenance  free battery

Rating voltage

192/240Vdc  external

 (or inbuilt 7-9ah)

348Vdc(external),

O/P

P.F.

0.8(lagging)

Phase

L+N+G

3wires+N+G

Rating voltage

220/230/240Vac

Rating frequency

50Hz/60Hz(Auto-sensing)

Frequency

50/60+/-5Hz or 50/60Hz ± 0.1Hz (Line mode)
50/60Hz ± 0.1Hz ( Battery mode)

Voltage

<±1.5%(static)

Crest factor

3:1

Wave distortion

Liner load<3%;Nonlinear load<5%

Dynamic load voltage instant distortion

Liner load<±5%(from 0-50%-100%)

Dynamic response recover time

<40ms

0verload capacity

105%～125％10min;125%～150% 1min;

>150%10ms

Transfer time

0mS(AC-Battery);<4ms(bypass-inverter)

System

display

LED+LCD

Efficiency

100% linear >89%

Operate temp

0～40℃

Humidity

0～90% (non-condensing)

Cooling

Intelligent fan cooling

Noise dB

<55 (≤1M)

<60(1M)

Physics

configuration

Tower,IP21

Weight (Kg)

60

68

100

128

150

218

258

320

350

Dimension (W×H×D)mm

210×586×563

300×865×580

460×950×710

470×1050×840
