Product Details:
Payment & Shipping Terms:
|
| Product Name: | Dried Fruit Food Packing Machine | Application: | Dried Fruit |
|---|---|---|---|
| Driven Type: | Electric And Pneumatic | Control Way: | Mitsubishi PLC |
| Made Of: | SUS 304 | Feature: | Weightier To Measure |
| Measurement Range: | 1000 Grams | Operating Language: | English And Chinese |
| Bag Shape: | Pillow Shape | Capacity: | 30-45 Bags Per Minute |
| High Light: | food product packaging machine,commercial food packaging equipment |
||

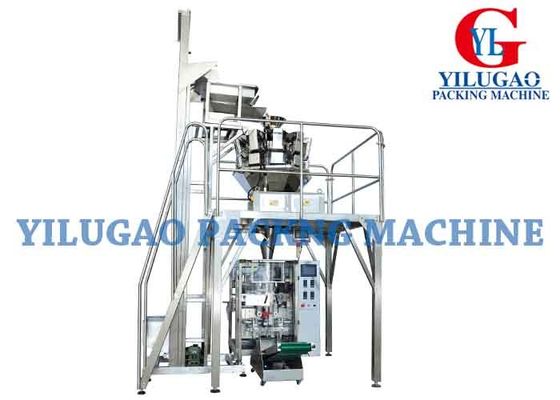

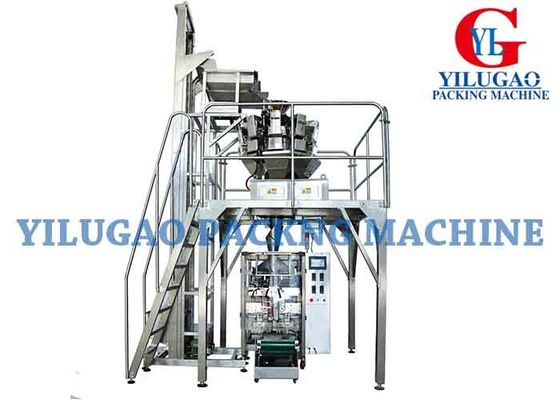

Dried Fruit Food Packing Machine
I.: Main feature:
This model adopts advanced Mitsubishi PLC control system and easy to maintain and operate. It can automatically finish the process, such as filling, measurement, bag making, sealing, cutting, date coding, counting.
II.: Specifications:
|
Packaging type |
Plastic pillow shape bag |
|
Driven Type |
Electric and pneumatic |
|
Measurement accuracy |
<= +- 1% |
|
Lanes quantity |
Only one |
|
Machine made of |
SUS 304 (for parts contacted material) |
|
Packaging material |
Laminated roll film |
|
Electric voltage |
380V/50HZ/3 Phases |
|
Measurement device |
10-head combination weightier |
|
Date coding |
Ribbon printer(for chosen) |
III.: Description:
1. Sealing type: back sealing packing method/ pillow shape.
2. Operation: packing running data and adjustment are directly displayed on the display. The user can directly operate it on the displayer.
3. Function: making bag, metering, filling, sealing, cutting, counting and printing batch number.
4. Body material: 304 stainless steel mainly.

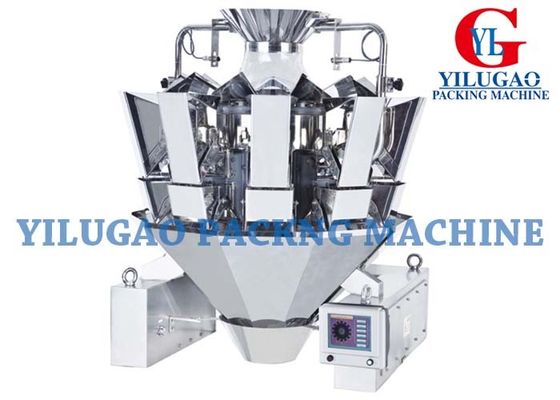

5. Filling type: 10-head combination weightier.
6. This machine can finish measuring, pulling, feeding, forming, cutting automatically.
7. Chinese-English operating screen display, easy operation and maintenance.
8. Mitsubishi PLC control system insure steady working conditions, and available to adjust any parameter without stopping the machine.
9. Adopt step motor to pull film, more accurate.
10. Independent temperature control system, precision±1 degree.
11. Independent control of horizontal / longitudinal temperature, to ensure a good fit of various kinds of complex film.
12. Automatic alarm protects system, to save the waste into minimum limited.
13. For the weightier, high-accuracy, high speed; choose the best fit though the computer.
14. For the weightier, high-accuracy digital weighed sensor to ensure instantaneous counting.
15. For the weightier, waterproof and dustproof function to keep clean.
16. For the weightier, automatic slight adjustment of hopper door to avoid crash and seize.
17. For the weightier, automatic counting system to record total production, percent of pass, single bag error.
IV.: Applications:
|
Applicable product |
dried fruit, kinds of granulated food and so on. |
|
Applicable field |
Food, daily consumption, medicine, chemicals… |
V.:Information we need:
To make an exact quotation for the granule products, it would be better if you could provide us information with following:
1. What kind of product you want to pack?
2. How many grams in one bag?
4. What is the bag size?
5. What kind of sealing form/bag shape?
6. Special requirement details are highly appreciated.
