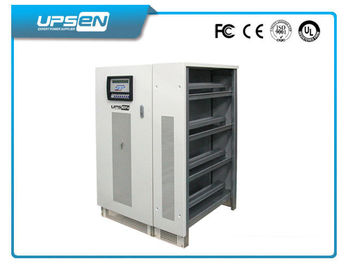

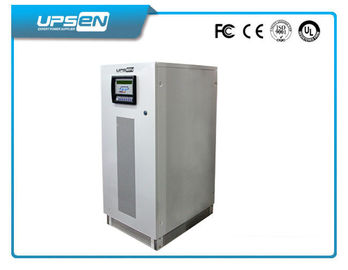

10Kva / 8Kw - 200Kva / 16Kkw Online Double Conversion UPS With Isolation Transformer
Model: Low Frequency Online UPS High Efficiency Strar Series HE33 10K-200K(3Ph in/3Ph out)
Low Frequency Online UPS Overview
1: UPS with DSP and IGBT Tech
2: Low Frequency UPS with Manual Maintenance Bypass
3: N+X parallel redundancy function for UPS
4: 3 Phase AC Input and output
5: Large LCD Display for UPS status
Key Features
● DSP control
● Double CPU control
● Modularize
● Advanced battery management
● N+X parallel redundancy
● Strong shock resistance ability
● EPO function
● Battery can be sharing
● Up to 8 units in parallel
● Compatible with generator
● Manual maintenance bypass
● Wide input voltage range
● High output power factor
● Strong environmental adaptability
● Full protection against over-discharge, overcharge, over load
● Adaptive system frequency and phase sequence
● Especially for banks, telecom, government, transportation, manufacturing, education, sensitive devices, etc.
Application
Large-medium computer data center, industrial process and other mission-critical equipment
Technical Specification
| High Efficiency Strar Series HE33 10K-200K |
| Model |
HE33 Series UPS |
| Capacity (VA) |
10K |
15K |
20K |
30K |
40K |
60K |
80K |
100K |
120K |
160K |
200K |
| Noninal output capacity |
8KW |
12KW |
16KW |
24KW |
32KW |
48KW |
64KW |
80KW |
96KW |
128KW |
160KW |
| Operate type |
Double conversion online type |
| Input |
Nominal voltage |
220V/380, 230/400, 240/415V |
| Voltage Tolerance |
380/400/415V±25% |
| Frequency |
50Hz/60Hz±5% |
|
Permitted Frequency
Tolerance
|
±2% (selectable from ±1% to 5% from the front panel) |
| Soft start |
0-100% in 30" (selectable) |
| Input power factor |
0.95(with input filter) |
| Standard features |
Back Feed protection separable bypass line |
| |
Phase |
Three phase +N+G |
| Output |
Voltage |
220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) |
| Frequency |
50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode) |
| Static stability |
±5% in 19ms |
| Distortion |
Linear load <3%, non linear load<5% |
| Power factor |
0.8 |
| Output wave |
Pure sine wave |
| Crest factor |
3:01 |
| Battery voltage |
Standard battery voltage |
384V |
432V |
480V |
| Floating charge |
432V |
486V |
540 |
| Terminal voltage |
336V |
378V |
420V |
| Charge current |
1A-50A (Can calculate and set according to battery configuration software) |
|
Maximum Discharge
Current
|
28 |
42 |
56 |
85 |
113 |
169 |
225 |
282 |
338 |
381 |
507 |
| Main Function |
Active voltage change |
0-100%±5% |
| Instant recover time |
<10ms |
| Imbalance voltage |
<±5%,<±1%( Balance load voltage) |
| Overload capacity |
125%→10min,150%→1min |
| Static switch |
Automatic |
| Protection |
UPS over current, short circuit, battery low voltage, over heat |
| Cold method |
Compel aeration ( temperature control mode) |
| Noise |
60-65dB |
| Display |
LED,LCD display |
| Remote signalling |
Voltage-free contacts |
| Remote commands |
EPO and bypass |
|
Communication Port
(Optional)
|
double RS232 + remote contacts + 2 communication interface slots |
| Alarm |
Alarm with buzzer and indicators |
| Environment |
Temperature: 0-40C Humidity: 0-90% |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
