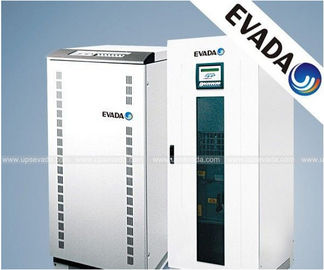

Custom Three Phase Online UPS / 3 phase UPS Low Frequency for Network or Highway lighting

Custom Three Phase Online UPS / 3 phase UPS Low Frequency for Network or Highway lighting
Custom Three Phase Online UPS / 3 phase UPS Low Frequency for Network or Highway lighting

Large Image :  Custom Three Phase Online UPS / 3 phase UPS Low Frequency for Network or Highway lighting

Product Details:
Place of Origin: Fujian,China
Brand Name: EVADA
Certification: CE,FCC,ISO9001
Model Number: HP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: carton packing, wooden packing
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000pcs/month
Detailed Product Description
High Light:

Three Phase UPS

,

uninterruptible power supply





Custom Online UPS / 3 Phase UPS Low Frequency For Network Or Highway Lighting





Quick details:



    Name: three inout and three output power frequency online UPS of HP series 10KVA~400KVA
    Brand: EVADA
    Phase:  three Phase





Description:



Online three input and three output power frequency UPS of HP series, whose unit capacity from 10KVA to 400KVA, is high performance sine wave uninterruptible power systems,which was designed for the key applications such as data processing center , the host system , manufacturing and telecommunications equipment, medical equipment. Its high availability and high reliability provide important protection for large key application systems. The series of UPS applied double conversion pure online IGBT technology and high-speed DSP digital processor and ensure the sine wave output of stable voltage and frequency.



Online three input and three output power frequency UPS of HP series applied advanced digital parallel controlled technology, can accommodate up to 8 machines running, and can provide clients options, such as harmonic suppression filters, isolation transformers and SNMP adapter and others.





Applications:



Highway lighting, billing, small and medium-scale network system room, billing centers, calling centers, business services groups, industrial process control applications, small and medium-scale office automation, computer equipments, precision equipments, medical equipments, etc.





Specifications:



model

HP

1000

HP

1500

HP20

00

HP30

00

HP

4000

HP60

00

HP

8000

HP

10000

HP

12000

HP

16000

HP20

000

capability

10KVA

15KVA

20KVA

30KVA

40KVA

60KVA

80 KVA

100 KVA

120 KVA

160 KVA

200 KVA

system

Power

factor of input

COSΦ:

100~70%

Overall

efficiency

92~94%(load 100%)

 Remote

 signal

Three contact signals (low

power, battery discharge,bypass/fault);

output12Vdc 80mA

Remote

control

EPO and bypass

Computer

monitoring

port

RS232

Operating

temperature

0±40℃

Maximum

 relative

humidity

95%(Non-condensing)

cooling

Smart wind forced ventilation(Fan speed varies with load))

Safety

standards

Safety standards:GB4943; Electromagnetic compatibility:

GB7260.2,GB/T 17626.2~5

Size

W*D*H(mm)

555×

720×1200

800×

740×1400

1200×

740×1400

1420

×860×1600

weight

(without

battery)Kg

200

220

260

300

360

480

550

900

1020

1220

1550

Rectified input

(standard UPS)

Rated

voltage

380V 3 phase

Voltage

Range

±20%

rated

 frequency

50/60Hz Automatically identify

Frequency

 Range

45~65

Maximum input

power(A)

18

28

37

55

72

103

130

175

220

280

350

battery

Rated voltage

384VDC

432VDC

480VDC

Charge current settings

0.1A×C10

Inverter output

Inverter output(V)

380(3 phase +N)

Rated Current(A)

14

22

29

43

58

87

115

148

186

235

296

Phase voltage

settings

200~244V(Control Pane)

Peak

(Lpeak/Lrms)

3:01

waveform

Sine wave

The distortion

 of Linear

 load voltage

<2%

The distortion of

 nonlinear

load voltage

waveform

<5%

Stability of

steady-state

voltage

±1%

Response of

Transient

voltage

±5% in 10ms

overload

600’/10’/1’(110/125/150% rated current)

Efficiency of

inverter

94%(load 100%)

96%(load 100%)

bypass

Rated voltage(V)

380(3 phase +N)

 Range of input

voltage

±15%(can adjust from control pane ±10%,±25%)

  rated

frequency(Hz)

50/60

range

of frequency

±2%(can adjust from control pane ±5%)

Conversion

 time of

inverter/bypass

<1ms

overload

 capability

10’/1’/18”(150/175/200% rated current)







model

HP25000

HP30000

HP35000

HP40000

capability

250 KVA

300 KVA

350 KVA

400 KVA

system

Power factor of output COSΦ:

100~70%

Overall efficiency

94%(load100%)

Remote signal

Three contact signals

(low power, battery discharge,bypass/fault);output12Vdc 80mA

Remote control

EPO and bypass

Computer monitoring port

RS232

Operating temperature

0±40℃

Maximum relative humidity

95%(Non-condensing)

cooling

Smart wind forced ventilation(Fan speed varies with load)

Safety standards

Safety standards:GB4943; Electromagnetic compatibility:GB7260.2,

GB/T 17626.2~5

  Size W*D*H(mm)

1600*800*1800

2200*1000*2000

weight(without battery)Kg

1950

2250

2650

3150

Rectified input(Twelve - pulse rectifier)

Rated voltage

380V 3 phase

Voltage Range

±20%

rated frequency

50/60Hz Automatically identify

range of frequency

45~65

 Maximum  input

 power(A)

450

540

630

720

battery

Rated voltage

480VDC

576VDC

Charge current

setting

0.1A×C10

Inverter output

 rated voltage(V)

380(3 phase +N)

rated current(A)

378

454

530

606

Phase voltage settings

200~244V(Control Panel)

peak (Lpeak/Lrms)

3:1

waveform

Sine wave

The distortion of linear

load voltage

<2%

The distortion of nonlinear

load voltage

<5%

Stability of steady-state

 voltage

±1%

Response of Transient

voltage

±5% in 10ms

overload

600’/10’/1’(110/125/150% rated current)

Efficiency of inverter

95%(load 100%)

96%(load 100%)

bypass

Rated voltage(V)

380(3 phase +N)

Range of input voltage

±15%( can adjust from control panel ±10%,±25%)

Rated frequency(Hz)

50/60

range of frequency

±2%(can adjust from control panel ±5%)

Conversion time of

 inverter/bypass

<1ms

Overload capability

10’/1’/18”(150/175/200% rated current )







Competitive advantages:





1. advanced 6th IGBT technology

2. Advanced battery management

3. Comprehensive and reliable protection measures against all type of power problems

4. Self test while start of the UPS

5. Advanced Current Control

6. Humanized information processing technology

7. Intelligent local and remote monitor capability with RS232 port
