Product Details:
Payment & Shipping Terms:
|
Nominal Voltage: | 380/400/415VAC 3-phase | Voltage Tolerance: | 400V + 20%/ -25% |
---|---|---|---|
Frequency: | 45 ÷ 65 Hz | Soft Start: | 0 ÷ 100% In 30’’ (selectable) |
Highlight: | uninterruptible power system |

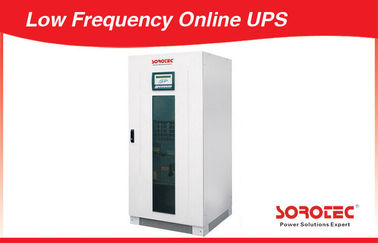

3Phase Low Frequency Online UPS With Isolation Transformer Inside
Key Features:
1. Advanced operation mode
2. DSP control
3. Double CPU control
4. Modularize
5. Manual maintenance bypass
6. Wide input voltage range
7. High output power factor
8. Strong environmental adaptability
9. Advanced battery management
10. N+X parallel redundancy
11. Compatible with generator
12. Strong shock resistance ability
13. EPO function like apc ups
14. Full protection against over-discharge, overcharge, over load.
15. Battery can be sharing
16. Up to 8 units in parallel
Application:
large-medium computer data center, industrial process and other mission-critical equipment
Technical Specifications of Online UPS GP9332C 10-200KVA :
Model |
GP9332C 10-200KVA |
|||||||||
Rated Power (KVA) |
10KVA |
15KVA |
20KVA |
30KVA |
40KVA |
60KVA |
80KVA |
100KVA |
120KVA |
|
Active Power (KW) |
8KW |
12KW |
16KW |
24KW |
32KW |
48KW |
64KW |
80KW |
90KW |
|
Input |
||||||||||
Nominal Voltage |
380/400/415VAC 3-phase |
|||||||||
Voltage tolerance |
400V + 20%/ -25% |
|||||||||
Frequency |
45 ÷ 65 Hz |
|||||||||
Soft Start |
0 ÷ 100% in 30’’ (selectable) |
|||||||||
Permitted frequency tolerance |
± 2% (selectable from ± 1% to ± 5% from the front panel) |
|||||||||
Standard features |
Back Feed protection; separable bypass line |
|||||||||
Battery |
||||||||||
Type |
Lead, flooded and VRLA AGM / GEL; NiCd |
|||||||||
AC ripple |
< 1% |
|||||||||
Temperature compensation |
-0.5V × °C |
|||||||||
Typical charging current |
0.2 × C10 |
|||||||||
Output |
||||||||||
Number of phase |
3 + N |
|||||||||
Nominal voltage |
380/400/415VAC 3-phase +N |
|||||||||
Static stability |
± 1% |
|||||||||
Dynamic stability |
± 5% in 10ms |
|||||||||
Voltage distortion |
<1% with linear load ; < 3% with no-Linear load |
|||||||||
Crest factor (lpeak/1rms) |
3:1 |
|||||||||
Frequency stability on battery mode |
0.05% |
|||||||||
Frequency |
50 or 60Hz (selectable) |
|||||||||
Overload |
110% for 60’ ; 125% for 10’; 150% for 1’ |
|||||||||
Environment |
||||||||||
Remote signaling |
Voltage-free contacts |
|||||||||
Remote commands |
EPO and bypass |
|||||||||
Communication |
Double RS232 + remote contacts +2 communication interface slots |
|||||||||
Operating Temperature |
0 °C / + 40 °C |
|||||||||
Relative humidity |
< 95% non condensing |
|||||||||
Colour |
Light grey RAL 7035 |
|||||||||
Noise |
54 |
60 |
62 |
63 ÷ 68 dBA at 1m |
||||||
Protection rating |
IP20 |
|||||||||
Efficiency Smart Mode |
Up to 98% |
|||||||||
Compliance |
European Directives: LV 2006/95/CE; EMC 2004/108/EC; Saftety IEC EN 62040-1;EMC IEC EN 62040-2 C2 |
|||||||||
Classification according to IEC 62040-3 |
(Voltage Frequency Independent) VFI –SS - 111 |
|||||||||
Physical parameters |
||||||||||
Weight (kg) without batteries |
210 |
220 |
230 |
280 |
330 |
450 |
600 |
640 |
650 |
|
Dimension (h×w×d) (mm) |
1400 × 555 × 740 |
1400 × 800 × 740 |
1900 × 800 × 800 |
