high frequency pcb/high frequency online ups pcb/high frequency inverter pcb

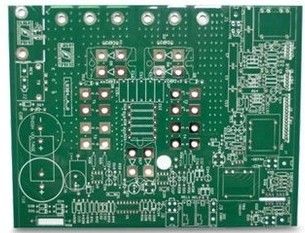

Large Image : high frequency pcb/high frequency online ups pcb/high frequency inverter pcb

Product Details:

Place of Origin:	China
Brand Name:	Meidear
Certification:	UL,IPC Standard
Model Number:	Meidear-032
Layer:	1-10
Material Type:	FR4,CEM-1,CEM-3,High TG,Alu,FPC etc.
CCopper Thickness:	0.5OZ-9OZ
Board Thickness:	0.3mm-4.5mm
Surface Finish:	HASL,HASL-LF,Immersion Gold,Immersin Tin,Plated Gold,Immersion Silver,OSP etc.
Profiling:	Punching,Routing,V-cut,Beveling
Special Requirments:	Burried and blind vias+controlled impedance+BGA
Tolerance:	Shape tolerance is +/-0.13mm,Hole tolerance for PTH is +/-0.076mm,NPTH is +/-0.05mm
Max. Size:	580*635mm
Min. Hole:	3mil,0.075mm
Min, Line Width:	3mil,0.075mm
Min. Line Space:	3mil,0.075mm

Payment & Shipping Terms:

Minimum Order Quantity:	1Pcs
Price:	Negotiable
Packaging Details:	Inner Vacuum Package+dryer;Outer Carton Package
Delivery Time:	5WD Around
Payment Terms:	T/T,West Union,Paypal
Supply Ability:	10000 Square Meter/Month

Contact Now

Detailed Product Description

Highlight:	High frequency pcb

high frequency pcb/high frequency online ups pcb/high frequency inverter pcb :

Material:FR4,1.6mm

Copper Thickness:1OZ(35um)

Surface Finish:HASL

Soldermask:Green

Legend:White

Min.Line Width:0.25mm

Min. Line Space:0.2mm

Min hole/pad:0.3mm

Also provides OEM service to all kinds of printed circuit boards,PCBA as well as electronic encased products.
