Product Details:
Payment & Shipping Terms:
|
| Product Name: | P6.00mm Led Display Cabinet 576X576 Aluninum Die Casting Cabinet | Pixel Pitch: | 6.0mm |
|---|---|---|---|
| Size Of Panel: | 288x288 | Brightness: | 2200 |
| Usage: | Advertising | Pixel Density: | 25600 |
| Weight: | 8.5 KG For Each Cabinet | ||
| High Light: | High Brightness Led Display,Led Display Module |
||

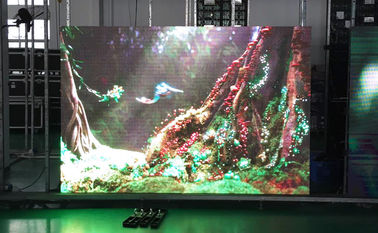

Aluninum Die Casting P6 LED Display Cabinet Low Maintanence for Railway Station
Description
1) High Quality Aluminum Die Casting Cabinet
2) Super Sharp High Brigthness Output
3) High Refresh Rate
4) Low Maintanence
5) Rental Indoor Led Display Cabinet
specifications
1. Indoor led Display technical parameter
|
Pixel Density(pixel/㎡) |
25600 |
|
White Balance Brightness (cd/㎡) |
≥5000(adjustable) |
|
Max Power Consumption |
300W/cabinet |
|
Average Power Consumption |
150W/cabinet |
|
Color Temperature |
3200-9300(adjustable) |
|
View Angle |
Horizontal 110°；Vertical 110° |
|
Display Work Method |
1/10 scan |
|
Digital Processing |
14 bit |
|
Gray Scale |
65536 levels per color |
|
Input Signal |
Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc |
|
Waterproof |
Yes |
|
Working Temperature(ºC) |
-20～+45 |
|
Humidity(RH) |
10% - 80% |
|
Stored Temperature (ºC) |
-30～+60 |
|
Lifetime (50%Brightness)(Hours) |
≥100,000 |
|
Input Voltage(VAC) |
AC 220(or 110V) |
|
Input Power Frequency(Hertz) |
50 to 60 |
|
Data Connection |
Super CAT6 Cable or Fiber |
|
Operating System |
Windows(98/2000/XP/Vista) |
|
Blind Spot Rate |
＜0.00001 |
|
Control Distance |
CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
|
Panel Input Format (With Video Processor) |
VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
|
Earth Leakage Current(mA) |
＜2 |
|
Pixel Configuration |
SMD3535 |
Pixel Pitch | 6.25 mm |
| Module Resolution |
40 x 40 |
Module Size(W*H) |
250mm x 250mm |
|
Weigth Per Module |
0.65kg |
Max Power Consumption |
50w |
3. Indoor LED Display Cabinet
|
Cabinet Size(W*H) |
500mm × 500mm |
Module Qty |
4 pcs |
|
Cabinet Resolution |
80 x 80 |
Cabinet Area |
0.25㎡ |
|
Weight Of One Cabinet |
8.5 kg |
Cabinet Pixel |
25600 |
|
Cabinet Flatness |
＜0.2/㎡ |
Cabinet Material |
Die Casting Cabinet |
Applications
The LED display is widely used in public places, advertising, city road network, city parking lot, railway station and metro as well as other transportation guidance systems. and some hall.
competitive advantage
1. 24/7 online support service.
2. Every LED Product Is a Good Quality .
3. Every LED Product Will Have Better Price.
4. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
5. Two Years Maintenance Service With Free.
