| •19'inch, rack mount, 3/4U design 6kva to 10kva |
| •True online high frequency double-conversion |
| •Advanced DSP controlled ,excellent performance with super high quality |
| •Output Power Factor 0.9 |
| •Wide input frequency range (40-70Hz) |
| •Wide input voltage range |
| •50Hz/60Hz frequency converter mode |
| •Eco mode operation for energy saving (Optional) |
| 192Vdc and 240Vdc convertible easily |
| •Emergency power off function (EPO) |
| History event record function,100 events |
| •Cold start and AC start function |
| •Automatic 4 levels speed fan control according to load and temperature |
| •Advanced N+1 redundancy parallel technology(Max.6units) |
| •Support any kinds of Generator |
| • |
|
|
|
|
|

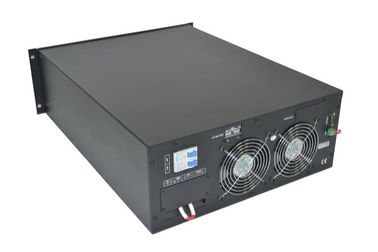

| PC Plus RACK MOUNT 6K/10K ONLINE HF UPS |
| |
|
|
|
|
|
| MODEL |
PCPR 06S |
PCPR 06L |
PCPR 10S |
PCPR 10L |
| PHASE |
1 phase in / 1 phase out |
| CAPACITY |
6Kva / 5.4Kw |
10Kva/ 9Kw |
| INPUT |
| Voltage Range |
Low Line Transfer |
176 VAC ± 3% @ 100% load
130 VAC ± 3% @ 50% load |
| Low Line Comeback |
188 VAC ± 3% @ 100% load
142 VAC ± 3% @ 50% load |
| High Line Transfer |
286 VAC ± 3% |
| High Line Comeback |
270 VAC ± 3% |
| Frequency Range |
|
40-70Hz
following range 46~54 Hz @ 50Hz ,56~64 Hz @60Hz |
| Phase |
Single phase with ground |
| Power Factor |
> 0.99 @ 100%load |
| OUTPUT |
| Output Voltage |
208/220/230/240 VAC |
| AC Voltage Regulation |
± 1% |
| Frequency Range (Synchronized Range) |
46~54 Hz @ 50 Hz / 56~64 Hz @ 60 Hz |
| Frequency Range (Batt. Mode) |
50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio |
3:1 (max.) |
| Harmonic Distortion |
≤ 3 % THD (Linear Load) , ≤ 6 % THD (Non-linear Load) |
| Transfer Time |
AC Mode to Batt. Mode |
Zero |
| Inverter to Bypass |
Zero |
| Waveform (Batt. Mode) |
Pure Sinewave |
| EFFICIENCY |
| AC Mode |
92% |
| Battery Mode |
91% |
| BATTERY |
| Standard model |
Battery Type |
lead-acid battery maintanence free |
| Numbers |
16/20Pcs |
| Typical Recharge Time |
3 hours recover to 90% capacity |
4 hours recover to 90% capacity |
| Charging Current (max.) |
1A ±10% |
4A±10% |
1A ±10% |
4A ±10% |
| Charging Voltage |
220/273 VDC ± 1% |
| Long-run Model |
Battery cabinet |
16/20pcs 7ah |
without batt. |
16/20pcs9ah |
without batt. |
| INDICATORS |
| LCD Panel |
UPS status, Load level, Battery level, Input/Output voltage,
output current,Bus voltage, Temp, and warning
and fault code and events |
| ALARM |
| Battery Mode |
Sounding every 4 seconds( can mute) |
| Low Battery |
Sounding every second |
| Overload |
Sounding every second |
| Fault |
Continuously sounding |
| PHYSICAL |
| Standard Model |
Dimension,
D X W X H (mm) |
UPS Unit : 580 X 438 X 176 [4U]
Battery Pack : 580 X 438 X 176 [4U] |
UPS unit: 580 X 438 X 176[4U] |
UPS Unit: 668 X 438 X 176 [4U]
Battery Pack : 580 X 438 X 176 [4U] |
UPS unit: 668 X 438 X 175[4U] |
| Net Weight (kgs) |
UPS Unit : 22 kgs
Battery Pack : 62kgs |
22kgs |
UPS Unit : 25 kgs
Battery Pack :75 kgs |
25kgs |
| ENVIRONMENT |
| Operation Humidity |
20-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level |
Less than 55dBA @ 1 Meter |
Less than 58dBA @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC |
| Optional SNMP |
Power management from SNMP manager and web browser |
| * L means long-run model,S means standard model |
|
|
|
| |
|
|
|
