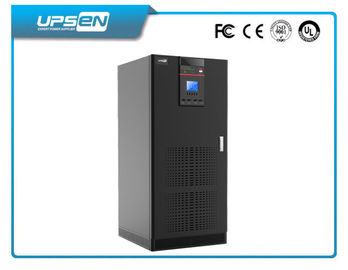

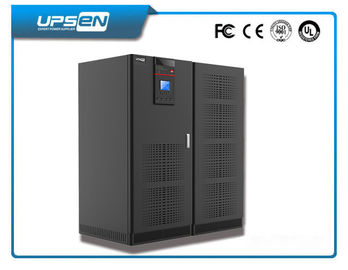

Large 50HZ / 60HZ 120KVA / 108KW Industrial UPS Power Supply With 6 Inch LCD Screen
Low Frequency Online UPS Low Frequency Strar Series LF33 100K-800K(3Ph in/3Ph out)
UPS Quick Overview
1: UPS with N+ X parallel function
2: UPS with 6th generation DSP and IGBT Tech
3: Low Frequency UPS with 3 Phase Input / Output, 380Vac 400Vac 415Vac or 208Vac 220Vac
4: Low Frequency UPS with capacity 100Kva - 400Kva with 0.9 output power factor
5: UPS with large LCD Display
Key Features
●0.9 output power factor,
●UP to 6 units in parallel
●6-inch extra large LCD that display 12 language( English/Russian/Spanish/French…)
●The efficiency of the machine is more than 94%, and reach 98% in ECO mode.
●6th generation DSP control
●Intelligent battery management
●Layered independently-sealed ventilation channel and redundant fan, embedded make it highly efficient to dissipate heat.
●Extra strong capability to withstand output overload and short circuit,ensuring the system stability and systemsafety under extreme conditions
●Extra wide input voltage and frequency range make it adapt to severe power grid environment
●Standard input/output filter i mproves the system EMC performance
●Intelligent battery management maintains battery automatically to prolong the battery life
Application
Mainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product lines and large automation production and its control system. According to the special needs of users was improved, and used in large sports venues, conference room, theater and highway and railway tunnels metal halide lamp lighting system.
Technical Specification
| Low Frequency Strar Series LF33 100K-400Kva |
| Model |
LF33 Series |
| Rectifier Type |
6p |
12p |
6p |
12p |
6p |
12p |
6p |
12p |
6p |
12p |
| Rated Nominal |
120KVA/108KW |
160KVA/144KVA |
200KVA/180KW |
300KVA/270KW |
400KVA/360KW |
| Rated input voltage |
380/400/415VAC 3-phase 4-wire |
| Rated frequency |
50/60HZ |
| Input parameters |
| Input voltage range |
±25% |
| Input frequency range |
45Hz~65Hz |
| Input soft start function |
0-100% 5-300settable |
| Input power factor |
more than 0.98(If harmonic filter is added) |
| Input harmonic current (THDi) |
less than 4.5%(If harmonic filter is added) |
| Bypass |
| Bypass voltage range |
-20%~+15% |
| Bypass frequency range |
50/60HZ±10% |
| Output parameters |
| Inverter output voltage |
380/400/415VAC 3-phase 4-wire |
| Voltage stability |
±1%(Steady status),±3%(Transient status) |
| Frequency |
50/60Hz |
| Mains power synchronization window |
±5% |
| Actually measured frequency accuracy (internal clock) |
50/60Hz±0.01Hz |
| Output power factor |
0.9(Output 90kW per 100kVA) |
| Transient response time |
less than 5ms |
| Inverter overload capability |
At 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s |
| Short circuit current from inverter |
3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds |
| Maximum Bypass capability |
1000% for 100ms |
| Phase shift |
With 100% balanced load |
less than1° |
| Characteristic |
With 100% imbalance load |
less than1° |
| Total harmonic |
100% linear load |
less than1% |
| Distortion(THDv) |
100% non-linear load |
less than3% |
| System efficiency (full load) |
Up to 94% (inverter efficiency is up to 98%) |
| Rectifier output parameters |
| Charger output voltage stability |
1% |
| DC ripple voltage |
≤1% |
| Operating environment |
| Operating temperature range |
0~40°C |
| Storage temperature |
-25~70°C(Without battery) |
| Relative humidity |
0~95% No condensation |
| Maximum operating height |
≤Elevation 1000m, for elevation above 1000m, derate by 1% for every increase of 100m |
| Noise (1m) |
58-68dB |
| Protection level |
IP20 |
| Standard |
Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design and Test IEC62040-3 |
| Physical parameters |
| Weight (kg) |
980 |
1420 |
1200 |
1750 |
1350 |
2000 |
1600 |
2200 |
2100 |
2750 |
| Width(mm) |
900 |
1250 |
1250 |
1640 |
1250 |
1640 |
1640 |
2280 |
2280 |
2280 |
| Depth (mm) |
855 |
855 |
855 |
855 |
855 |
855 |
855 |
855 |
855 |
855 |
| Height (mm) |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
| *Specifications change without prior notice |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
