LCD Display Online 1000Va 2000Va 3000Va Rack Mountable UPS with 220Vac 50Hz

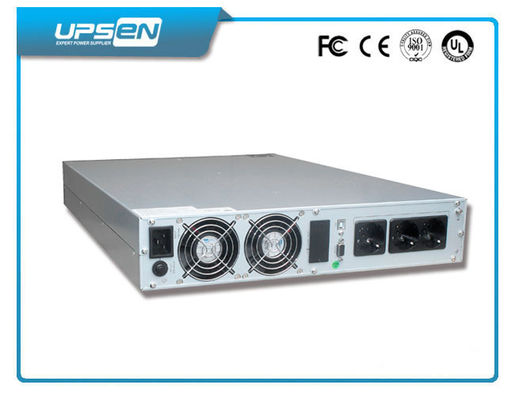

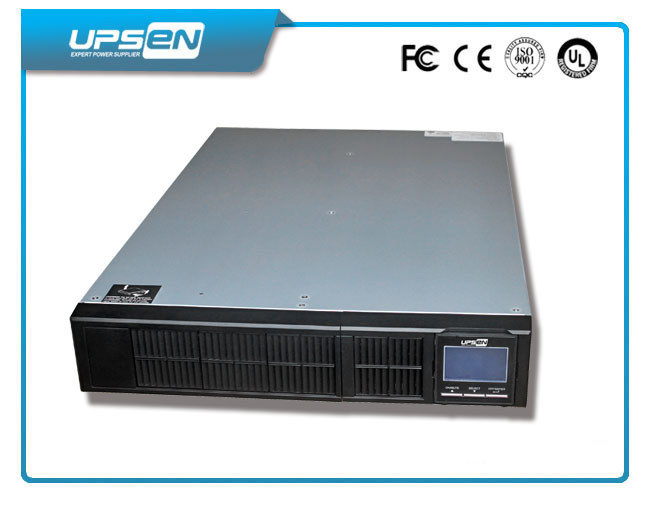

Large Image : LCD Display Online 1000Va 2000Va 3000Va Rack Mountable UPS with 220Vac 50Hz

Product Details:

Place of Origin:	China
Brand Name:	UPSEN
Certification:	CE, ISO, RoHS
Model Number:	Rack Mount Star Series 1-10Kva

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	Cartons & Wooden Pallet
Delivery Time:	7-15 Days
Payment Terms:	T/T, LC, WU, Money Gram etc
Supply Ability:	50,000pcs/Month

Contact Now

Detailed Product Description

Type:	Rack Mount Online	Output Power Factor:	0.8
Phase:	Single Phase	Protection:	Over Load/Current/Voltage, Short Circuit Etc
Display:	Digital LCD Display	H.S. Code:	8504402000
High Light:	uninterruptible power supply rack mount , energy saving UPS

LCD Display Online 1000Va 2000Va 3000Va Rack Mountable UPS with 220Vac 50Hz

Model: High Frequency Online UPS Rack Mount Star Series RM 1K-10KVA(1Ph in/1Ph out)

Quick Read

1: Rack Mounted UPS with full protection Protection against over voltage, over load, over current, over charge etc.

2: UPS with Network / Fax/ Modem surge protection

3: Smart RS232, USB, RJ11, RJ45 communication with monitoring software

4: 19 Inch 2U 3U Height design

5: UPS Power with DSP and IGBT Tech

6: Rack Mountable UPS with Pure sine wave output waveform

Key Features:

1: True online double conversion technology with advanced Microprocessor Control
2: PWM Technology with IGBT
3: LED/LCD Indicators display Detailed Real-Time UPS Status and parameters.
4: Set Output Voltage, Frequency parameter and bypass function on the display.
5: Advanced MCU microprocessor control technology, ensure long life reliability.
6: Wide input voltage range, Zero transfer time
7: Rack mount 19”design to save space
8: Excellent Protection against over voltage, over load, over current, over charge and so on.
9: Input L and N lines reverse wiring detection, Auto start when AC back.
10: DC start function, Input PFC revise function.
11: Humanization bypass output, can be adjustable.
12: Smart RS232 communication with monitoring software
13: Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
14: Strong antijamming capability
15: Available to work with generators.
16: Lightning, surge, short circuit, Network/fax/modem surge protection

Applications

RM Series 1KVA~10KVA High Frequency Rack Mount Online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.

Technical Specification

Rack Mount Star Series RM1K-10K
Model		RM1K	RM2K	RM3K	RM1KL	RM2KL	RM3KL	RM6KL	RM10KL
Input	Phase	Single Phase with Ground
	Nominal Voltage	110/115//120Vac or 220/230/240Vac						220/230/240Vac
	Voltage Range	60-138VAC or 115 ~ 300VAC						176 ~ 276VAC
	Frequency Range	46 ~ 54Hz(default), user adjustable within 40~60Hz						46 ~ 54Hz
	Power Factor	0.97						0.98
	Connection	IEC320-10A inlet		IEC320-16A inlet	IEC320-10A inlet		IEC320-16A inlet	Terminal Block
Output	Phase	Single Phase
	Voltage	110/115/120Vac or 220/230/240VAC ± 2%						110/115/120Vac or 220/230/240VAC± 1%
	Frequency	46~54Hz or 50Hz ± 0.2Hz (Line mode)						46~54Hz (Line mode)
		50Hz ± 0.2Hz ( Battery mode)						50Hz ± 0.05Hz ( Battery mode)
	Waveform	Pure Sine Wave
	Power Factor	0.7/0.8 Optional
	Overload Capability	108%~150% for 30 sec., 150% for 300 ms						105%~130% for 10 min., 130% for 1 min.
	Current Crest Ratio	3:1
	Connections	IEC320 -10A * 4		IEC320-10A and Terminal Block	IEC320 -10A * 4		IEC320-10A and Terminal Block	IEC320-10A * 4 and Terminal Block
Bypass	Automatic Transfer	on overload and UPS failure
	Before UPS Power-on	Default “NO”, user adjustable to “YES”						Yes
	Voltage Range	80~264VAC (Default), user adjustable within 80~286VAC						176 ~ 261VAC
Transfer Time		0 ms; less than 4 ms from inverter to bypass and vice versa						Zero
LED /LCD indicators		Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
Audible Alarm		Bypass, On battery mode, Battery low, Overload, Fault
Communications		RS-232 Serial Interface
		Intelligent Slot;
		OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)
Network Surge Protection		RJ45 I/O port available for network or Fax/Modem
Environmental	Operating Temperature	0 ~ 40°C
	Operating Humidity	20 ~ 90% non-condensing
Main Unit	Net Weight (Kg)	16.3	10.3	11.2	9.1	11.5	12.3	18.3	20.3
	Dimensions (W x D x H) mm	482 x 420 x 88 (2U)	482 x 420 x 88 (2U) or (3U Internal Batteries)		482 x 420 x 88 (2U)			482.6 x 600 x 130 (3U)
Battery Pack	Type	Internal Batteries	External Battery Pack
	Nominal DC Voltage	24/36VDC	48/72VDC	72/96VDC	24/36VDC	48/72VDC	72/96VDC	192/240VDC
	Battery Numbers & Capacity	2/3Pcs *12V7.2Ah	4/6Pcs *12V7.2Ah	6/8Pcs *12V7.2Ah	Depending on the capacity of external battery packs
	Backup Time (Full load)	5 min	7min (with 1 BP)	5 min (with 1 BP)

	Recharge Time	5hrs to 90%	5hrs to 90%	5hrs to 90%
	Charging Current (Max.)	1.0A	1.0A	1.0A	8A±1A			4.2A
	Charging Voltage	41.1Vdc±0.6V	110Vdc±0.4V		41.1Vdc±0.6V	110Vdc±0.4V		274Vdc±1%V
	Net Weight (Kg)	---	25.3	25.3	---	---	---	---
	Dimensions (W x D x H) mm	---	482 x 420 x88 (2U)	482 x 420 x88 (2U)	---	---	---	---

Competitive Advantages:

1:Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3:Good after-sales service, we will be full responsible for any faults caused by our side
4:Professional experience in power field more than 10 years
5:Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products
