Product Details:
Payment & Shipping Terms:
|
Nominal Voltage: | 380VAC Three Phase Four Wires +G | Nominal Frequency: | 50/60HZ |
---|---|---|---|
Voltage Range: | 380VAC±25% Three Phase 4 Wires +G | Frequency Range: | 50/60HZ±10% |
Soft Start: | 0-100% 5sec | Power Factor: | 0.8((lagging) |
Frequency Precision: | 50/60Hz±0.05Hz(battery Powered) | ||
Highlight: | Pure Sine Wave UPS |

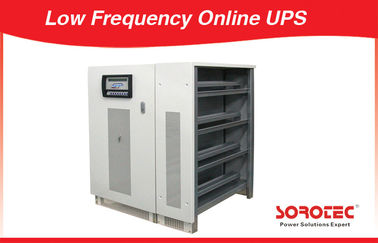

Low Frequency Online UPS with Touch Screen Function 10-200KVA:
Key Features:
1.Three phase in/three phase out, supporting 380/400/415VAC, 50/60Hz power supply system.
2.Pure online double conversion structure, can provide best quality power supply, suitable for variety kinds of load, high overload capacity.
3.Wide input voltage range, suitable for harsh power environment
4.Intelligent battery management, can extend battery life.
5.Large LCD display, friendly man-machine interface.
6.touch screen optional
Applications:
Medium-sized room IDC data exchange center, Medium-scale network management system, Billing Center, Banking / Securities Settlement Center, Industrial process control applications, the field of traffic control, etc.
GP9330C series Technical Specifications:
Model |
GP9332C 10-200KVA |
||||||||||||
10 KVA |
15 KVA |
20 KVA |
30 KVA |
40 KVA |
60 KVA |
80 KVA |
100KVA |
120KVA |
160KVA |
200KVA |
|||
Capacity |
10KVA /8KW |
15KVA /12KW |
20KVA /16KW |
30KVA /24KW |
40KVA /32KW |
60KVA /48KW |
80KVA /64KW |
100KVA /80KW |
120KVA /96KW |
160KVA /128KW |
200KVA /160KW |
||
Nominal Voltage |
380VAC Three phase four wires +G |
||||||||||||
Nominal Frequency |
50/60HZ |
||||||||||||
AC Input |
|||||||||||||
Voltage Range |
380VAC±25% Three phase 4 wires +G |
||||||||||||
Frequency range |
50/60HZ±5% |
||||||||||||
soft start |
0-100% 5sec |
||||||||||||
Power factor |
>0.92(with input filter) |
||||||||||||
Bypass Input |
|||||||||||||
voltage range |
380VAC±25% Three phase 4 wires +G |
||||||||||||
Frequency range |
50/60HZ±10% |
||||||||||||
Inverter bypass |
(overload)0ms |
||||||||||||
|
|
||||||||||||
Output |
|||||||||||||
Voltage Precision |
380V±1% (steady load), 380V±3%(Load Fluctation)Three phase four wires +G |
||||||||||||
Frequency Precision |
50/60Hz±0.05Hz(battery powered) |
||||||||||||
Power factor |
0.8((lagging) |
||||||||||||
Wave Distortion |
linear load<3%, non-linear load <5% |
||||||||||||
Steady-state response time |
<10ms |
||||||||||||
Overload capability |
110% Normal Running ; 125% for 10 min ;150% for 1 min |
||||||||||||
Static switch |
automatism |
||||||||||||
Battery |
|||||||||||||
Nominal battery voltage |
360V |
||||||||||||
Float Charging voltage |
405V |
||||||||||||
Cut-off voltage |
315V |
||||||||||||
Maximum discharge current |
28A |
42A |
56A |
85A |
113A |
169A |
225A |
282A |
338A |
381A |
507A |
||
Charge current |
1A-50A(According to the configuration of battery capacity which can be set) |
||||||||||||
Other |
|||||||||||||
Display |
LED/LCD display |
||||||||||||
Alarm |
Sound and light alarm |
||||||||||||
Protection |
UPS over current , short circuit , battery under voltage , over temperature |
||||||||||||
Working environment |
|
||||||||||||
Acoustic noise |
60-65dB |
||||||||||||
Operating environment |
Temperature:0-40℃ Humidity :10%-90%(Non-condensing) |
||||||||||||
Case color |
Gray(Optional) |
||||||||||||
Physical Characteristics |
|||||||||||||
Weight(KG) |
N.W |
200 |
224.7 |
224.7 |
354.8 |
412.3 |
513.9 |
700 |
860 |
900 |
1250 |
1380 |
|
G.W |
226.8 |
251.5 |
251.5 |
389.5 |
447.5 |
552.3 |
740 |
900 |
960 |
1310 |
1440 |
||
Dimensions: ( W x D x H )mm |
450×720×1120 |
710×720×1450 |
710×830 ×1500 |
1100×860×1680 |
1500×1120×1800 |
Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2 GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943
Note: Product specifications are subject to change without further notice
