Surge Protection Rack Mount Online Ups

Surge Protection Rack Mount Online Ups
Surge Protection Rack Mount Online Ups Surge Protection Rack Mount Online Ups Surge Protection Rack Mount Online Ups Surge Protection Rack Mount Online Ups Surge Protection Rack Mount Online Ups

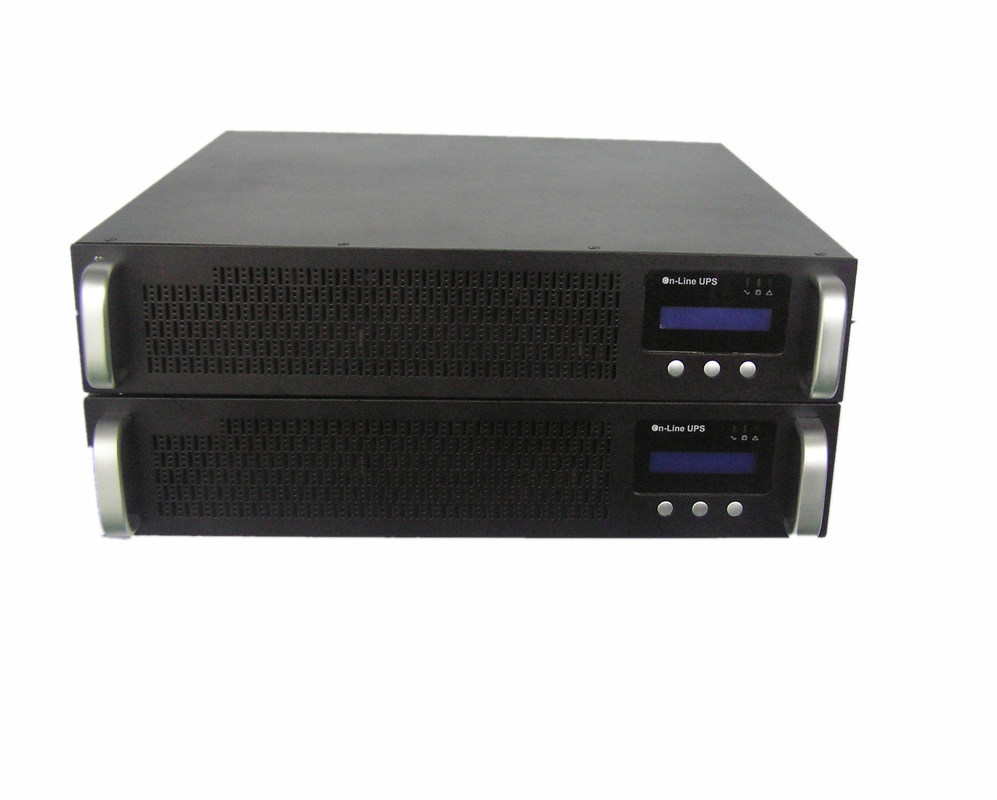

Large Image :  Surge Protection Rack Mount Online Ups

Product Details:
Place of Origin: Shenzhen China
Brand Name: HRD/OEM/ODM
Certification: CE,ISO9001:2000
Model Number: PMR1000-3000
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: 125-800usd/pcs;
Packaging Details: Standard for Export
Delivery Time: 15-20days after down payment
Payment Terms: TT or LC at sight
Supply Ability: 300pcs/day
Price Term: Fobshenzhen
Detailed Product Description
High Light:

uninterruptible power system

,

rack ups systems

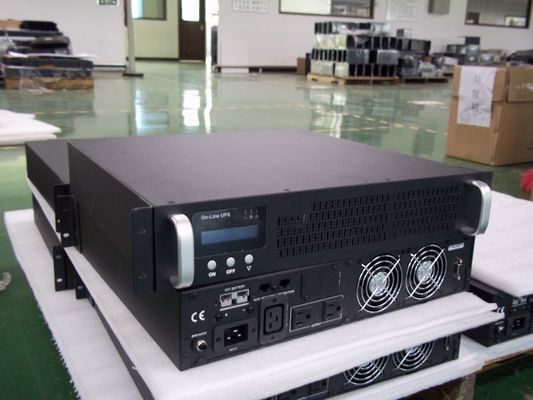

Surge Protection Rack Mount Online Ups



Quick Detail:



1)Capacity:1-6KVA

2)protection:Lightening and Surge protection

3) Features:  DSP technology, load power factor 0.9,Genset compatible



Introduction:Power Master Series Rack mount  Online HF UPS1-6kva, is of fully of advanced DSP  Online HF UPS.

It has high adaptability , performance , compact design and less batteries to reduce your space and installation cost.

Perfect Application:

Network, data centre, servers and workstations, control system, communication system and office etc.



Main Features:

  1. High Frequency and double conversion
  2. Fully digitized control
  3. Self-diagnosis system at ups start
  4. Output power factor: 0.8(0.9 optional)

5) Wide input range
6) DC Voltage flexible

7) Smart RS232(SNMP card optional)

8) Cold start

9) Lightening and Surge protection 1050J

10)EMI/RFI noise filter

11) Compact Design

12) Environment protection



Technical Specification:



Model

PMR1000

PMR2000

PMR3000

PMR5000

PMR6000

Capacity

1KVA/0.8kW

2KVA/1.6kW

3KVA/2.4kW

5KVA/4.0kW

6KVA/4.2kW

Phase

Single, 2 wire+Ground

AC Input



P.F

Above 0.98

THDi

< 5%

voltage range

110-285Vac(50%LOAD), 160-285Vac(FULL LOAD)

Or 80-150Vac(1-3KVA)

frequency range

40-70HZ

By-pass

110VAC—285VAC

Or 80-150Vac(1-3KVA)

Frequency following

50/60Hz+/-5Hz (auto- sensing)

Output



P.F

0.8

0.7/0.8

Voltage

220/230/240 Vac +/-1%

Or110/120/127Vac+/-1%(1-3Kva)

Frequency

50/60+/-5Hz or 50/60Hz ± 0.1Hz (Line mode)
50/60Hz ± 0.1Hz ( Battery mode)

crest factor

3:1

Wave distortion

Linear load <3%, Nonlinear load <5%

Over load ability

30s when overload is 108%~150%
200ms when overload above150%

Transfer time

0ms

AC abnormal

Alarm every 4 seconds

Battery low voltage

Keep alarm every 1 second

Overload

Keep alarm every 0.5 second

Display

High Definition LED and LCD, clear & friendly display interface

Efficiency

Above 87%

Protections

Output: Short circuit, Overload, low voltage,

Input: Instant high voltage protection

Others:over-temperature protection,   Battery low, charger PCB,

Communication

RS232(Standard), RS485 and SNMP card(optional)

Working Temp.

0~40℃

Relative humidity

0~90%( No coagulation)

Cooling

Intelligent speed-control Fan

Input & output

Socket(Optional)

Terminals

 Battery

Type

Internal Batteries

External Battery Pack

DC Voltage

36Vdc

72Vdc

120Vdc

Backup Time (Full load)

5 min

9 min

(with 1BP)

5 min
(with 1 BP)

4 min
(with 1 BP)

Net Weight(Kg)

----

26

38

Dimension

---

440* 440 *87mm(2U)

440* 440 *130mm(3U)

Main Unit

Net Weight(kg)

15

12

12

16

Dimension

440* 440 *87mm(2U)

440* 440 *130mm(3U)

Packing Dimension(D*W*H)

570*570*185mm

  570*570*235mm



Note:”L” means long time model &“S” means standard model with inbuilt battery.
