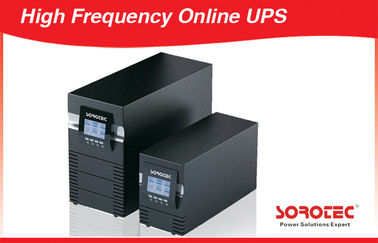

1, 2, 3 KVA 220V - 240V AC High Frequency Online UPS with RS232, SNMP, USB / 8A 50 - 60 Hz

Certification
China CHINA UPS Electronics Co., Ltd. certification
China CHINA UPS Electronics Co., Ltd. certification
The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Albert

This is a fantastic sourcing platform, considerate service and good quality product.

—— philip

You always can give me the best plan ,and it lets my customer feel great,i hope we can have another chance to cooperation.

—— Tim

I'm Online Chat Now

1, 2, 3 KVA 220V - 240V AC High Frequency Online UPS with RS232, SNMP, USB / 8A 50 - 60 Hz

1, 2, 3 KVA 220V - 240V AC High Frequency Online UPS with RS232, SNMP, USB / 8A 50 - 60 Hz
1, 2, 3 KVA 220V - 240V AC High Frequency Online UPS with RS232, SNMP, USB / 8A 50 - 60 Hz 1, 2, 3 KVA 220V - 240V AC High Frequency Online UPS with RS232, SNMP, USB / 8A 50 - 60 Hz

Large Image :  1, 2, 3 KVA 220V - 240V AC High Frequency Online UPS with RS232, SNMP, USB / 8A 50 - 60 Hz

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: HP9116C Series 1 - 3KVA
Payment & Shipping Terms:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Detailed Product Description
Rated Voltage: 220/230/240VAC Rated Frequency: 50/60 Hz
Voltage Range: 115~295VAC(±3VAC) Frequency Range: 50HZ:(46~54HZ);60HZ;(56HZ~64HZ)
Power Factor: >0.98 Voltage Regulation: 220/230/240X (1±2%)VAC
Frequency Regulation: 50/60Hz ±0.05Hz Power Factor: 0.7/0.8(Optional) Standard 0.7
Voltage Distortion: Linear Load<3% Non-linear Load<6% Operation Temperature: 0~40℃
High Light:

Three Phase UPS

,

uninterruptible power supply

1, 2, 3 KVA 220V - 240V AC High Frequency Online UPS with RS232, SNMP, USB / 8A 50 - 60 Hz



Key Features:
1.Large blue black light LCD for detailed real-time UPS status display.


2.Pure high frequency online UPS with voltage regulator circuit, which can provide a perfect power protection when UPS working in a poor surroundings.


3.Large blue black light LCD for detailed real-time UPS status display.


4.Comprehensive Electrical isolation and bypass protection.


5.Input PF correction, reduce the harm of harmonic wave to the power grid, it’s convenient to connect mini type generator.


6.Automatic alarm; Self-testing function.


7.Wide Input voltage range.
  Input N/L Inspection function and date line protection.


8.DC start when power off, convenient and reliable; Restart automatically when Electricity is restored.

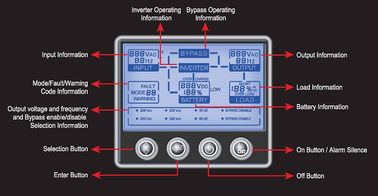

Trendy & Elegant LCD Design for real-time UPS system information:
1, 2, 3 KVA 220V - 240V AC High Frequency Online UPS with RS232, SNMP, USB / 8A 50 - 60 Hz 0




Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…




Technical Specifications of Power Supply UPS HP9116C 1-3KVA


Model

HP9116C  1-3KVA

1KT

1KT-XL

2KT

2KT-XL

3KT

3KT-XL

Rated Power

1KVA/700 W

2KVA/1400 W

3KVA/2100 W

Rated Voltage

220/230/240VAC

Rated Frequency

50/60 Hz

Input

Voltage Range

115~295VAC(±3VAC)

Frequency Range

50HZ:(46~54HZ);60HZ;(56HZ~64HZ)

Power Factor

>0.98

Output

Voltage Regulation

220/230/240X (1±2%)VAC

Frequency Regulation

50/60Hz ±0.05Hz

Power factor

0.7/0.8(Optional) Standard 0.7

Voltage distortion

Linear load<3%    Non-linear load<6%

Overload
Capability

 110%~150% for 30s change to bypass model, Recover

after load normal

Current Crest Ratio

3:1 max.

Transfer time

0ms(AC mode →Battery mode)

Battery

DC Voltage

36VDC

96VDC

96VDC

Recharge Time

7hrs to 90% of capacity after full load discharge

Recharge Current

1A

4A/8A(Optional)

1A

4A/8A(Optional)

1A

4A/8A(Optional)

Display

LCD

Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.

Communication

Interface

Smart RS232, SNMP (Optional) , USB(Optional)

Environment

Operation Temperature

0~40℃

Humidity

0~95% non-condensing

Storage Temperature

-25℃~55℃

Sea level elevation

<1500 m

Noise Level(1m)

<45dB

<50dB

<50dB

Physical Characteristic

Weight(KG)

N.W.

14

7

31

13.5

31.5

14

G.W.

16

9

33

16

33.5

16.5

Dimensions:  ( W x D x H )mm

400X145X220

460 X192

X340

460 X192

X340

Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2  GB/17626.2~5/IEC61000-4-2~5     SAFETY:GB4943
Note: Product specifications are subject to change without further notice
