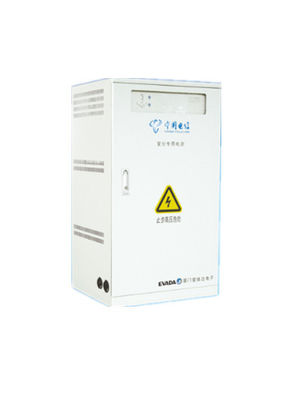

Intelligent AC to DC Integrated Power Supply Online UPS High Frequency and Single Phase

Intelligent AC to DC Integrated Power Supply Online UPS High Frequency and Single Phase
Intelligent AC to DC Integrated Power Supply Online UPS High Frequency and Single Phase

Large Image :  Intelligent AC to DC Integrated Power Supply Online UPS High Frequency and Single Phase

Product Details:
Place of Origin: Fujian,China
Brand Name: Evada
Certification: CE,FCC,ISO9001
Model Number: HW10TN-A HW20TN-A
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Price: Negotiable
Packaging Details: carton packing, wooden packing
Delivery Time: 10 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000pcs/month
Detailed Product Description
High Light:

Single Phase UPS

,

uninterruptible power supply



Intelligent AC To DC ATM UPS Integrated Power Supply Online UPS Single Phase





Applications:



Intelligent AC-DC power supply with integrated advanced digital technology, set exchange regulator, DC current limiting, peak surge absorption, comprehensive automatic protection functions, intelligent remote monitoring as a whole, is a new generation of intelligent environmentally friendly power systems, AC-DC isolated power supply can be divided into outputs, in line with distributed communication base station system integrated AC-DC power supply requirements.





Features:



1. Good Environmental adaptability

Wide input voltage range 168V ~ 275V, avoid the battery supply power frequently, extend battery life and reduce battery costs.

2. Function of output is Stable and reliable,output branch can be configured flexibly

(1). AC output: AC220V 50HZ sine wave output

(2). DC output: 10A/48V, protection function with current limiting and under-voltage.

3. Perfect protection

With battery voltage, overload, output short circuit, over-temperature protection.

The protection with surge suppression, noise abatement and so on,

reducing the equipment is damaged.

4. Function with unattended

When leaving the mains power system failure occurs for a long time due to battery undervoltage protection automatically when utility power is restored after a normal boot and automatically charge the battery, which will effectively protect the battery and prolong battery life, and can be backup time of battery in short time.

5. DC start function

You can start to use when no mains input,with DC function to start when it become cold, to better meet the user's emergency use.

6. Under battery protection

According to the user's needs, set up under the protection of the battery before leave for factory.

7. Intelligent monitoring and management capabilities

Standard RS232 interface, through monitoring software, you can directly debugging online and monitoring the operation of the power system, simplifying network management, and improve system reliability.

SNMP can be used as a stand-alone network node, with the Ministry of Information Industry of the three remote capabilities to provide data backup and power protection for networks.





Specifications:



Model

HW10TN-A

HW20TN-A

Rated Capacity

Volt-ampere(VA)

1000VA

2000VA

output

DC

Voltage

220VAC±2%(Battery Status)

Frequency

50Hz±0.1 Hz(Battery Status)

Waveform

Pure Sinewave

Waveform distortion

Less than 3%(

under Linear load enough)

Power Factor

0.7

AC

Voltage

48V

Electric current

10A

Battery

The nominal voltage

48V

Efficiency

DC TO AC

>80%

Noise

About 1 meter

Full load of not more than 50Db(A)

Alarm device



LEDs and buzzer alarm mode

DC startion



yes

Software set

on / off

Auto Start-up

yes

Protection

Overload

Battery Model:Load≥150% Maintain two seconds;

Load≥100%maintain sixty seconds

Short circuit protection

Power supply system Shutdown,Protection

static bypass switch

EMC

Match GB 9254

Battery discharge

protection

Battery discharge automatically turns off, the inverter output

static bypass switch

Communication

RS232/LAN interface

Low Voltage, remote control and real-time monitoring of power

supply system shutdown Communications

Environment

Temperature

0~40℃

Mechanical

Appearance

Humidity

0~95%(Non-condensing)

Module size(W×D×H)(mm)

Frame:465×386×138

Frame:475×415×138
