High Power Low Frequency Online UPS IP20 DSP Control For Industrial

High Power Low Frequency Online UPS IP20 DSP Control For Industrial
High Power Low Frequency Online UPS IP20 DSP Control For Industrial

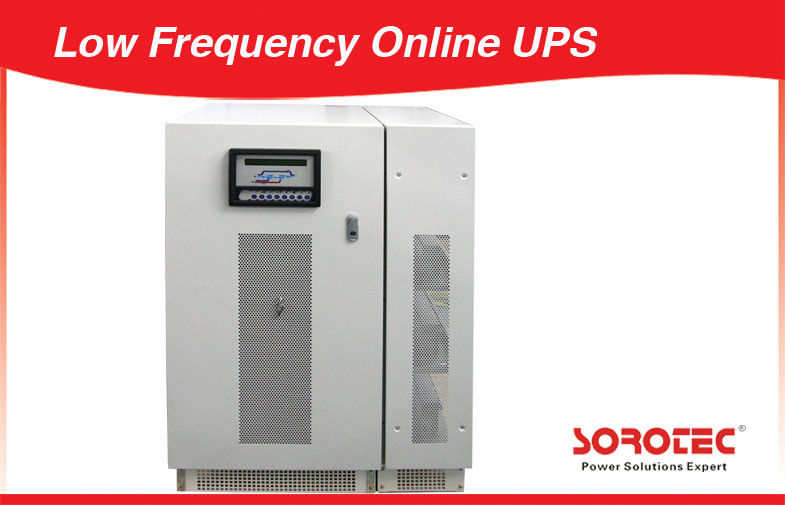

Large Image :  High Power Low Frequency Online UPS IP20 DSP Control For Industrial

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: GP9332C 10-200KVA
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Detailed Product Description
Model: GP9332C 10-120KVA Nominal Voltage: 380/400/415VAC
Frequency: 50 Or 60Hz Colour: Light Grey RAL 7035
Nominal Voltage: 380/400/415VAC 3-phase Voltage Tolerance: 400V + 20%/ -25%
Frequency: 45 ÷ 65 Hz Soft Start: 0 ÷ 100% In 30’’ (selectable)
AC Ripple: < 1% Temperature Compensation: -0.5V × °C
Typical Charging Current: 0.2 × C10 Number Of Phase: 3 + N
Nominal Voltage: 380/400/415VAC 3-phase +N
High Light:

Pure Sine Wave UPS

,

uninterruptible power system

High Power Low Frequency Online UPS IP20 DSP Control For Industrial



Key Features:

1. Advanced operation mode



2. DSP control



3. Double CPU control



4. Modularize



5. Manual maintenance bypass



6. Wide input voltage range



7. High output power factor



8. Strong environmental adaptability



9. Advanced battery management



10. N+X parallel redundancy



11. Compatible with generator



12. Strong shock resistance ability



13. EPO function like apc ups



14. Full protection against over-discharge, overcharge, over load.



15. Battery can be sharing



16. Up to 8 units in parallel







Application:

large-medium computer data center, industrial process and other mission-critical equipment
Technical Specifications of Online UPS GP9332C 10-120KVA



Technical Specifications:

Model

GP9332C 10-120KVA

Rated Power (KVA)

10KVA

15KVA

20KVA

30KVA

40KVA

60KVA

80KVA

100KVA

120KVA

Active Power (KW)

8KW

12KW

16KW

24KW

32KW

48KW

64KW

80KW

90KW

Input

Nominal Voltage

380/400/415VAC 3-phase

Voltage tolerance

400V + 20%/ -25%

Frequency

45 ÷ 65 Hz

Soft Start

0 ÷ 100% in 30’’ (selectable)

Permitted frequency tolerance

± 2% (selectable from ± 1% to ± 5% from the front panel)

Standard features

Back Feed protection; separable bypass line

Battery

Type

Lead, flooded and VRLA AGM / GEL; NiCd

AC ripple

< 1%

Temperature compensation

-0.5V × °C

Typical charging current

0.2 × C10

Output

Number of phase

3 + N

Nominal voltage

380/400/415VAC 3-phase +N

Static stability

± 1%

Dynamic stability

± 5% in 10ms

Voltage distortion

<1% with linear load ; < 3% with no-Linear load

Crest factor (lpeak/1rms)

3:1

Frequency stability on battery mode

0.05%

Frequency

50 or 60Hz (selectable)

Overload

110% for 60’ ; 125% for 10’; 150% for 1’

Environment

Remote signaling

Voltage-free contacts

Remote commands

EPO and bypass

Communication

Double RS232 + remote contacts +2 communication interface slots

Operating Temperature

0 °C / + 40 °C

Relative humidity

< 95% non condensing

Colour

Light grey RAL 7035

Noise

54

60

62

63 ÷ 68 dBA at 1m

Protection rating

IP20

Efficiency Smart Mode

Up to 98%

Compliance

European Directives: LV 2006/95/CE; EMC 2004/108/EC; Saftety IEC EN 62040-1;EMC IEC EN 62040-2 C2

Classification according to IEC 62040-3

(Voltage Frequency Independent) VFI –SS - 111

Physical parameters

Weight (kg) without batteries

210

220

230

280

330

450

600

640

650

Dimension (h×w×d) (mm)

1400 × 555 × 740

1400 × 800 × 740

1900 × 800 × 800
