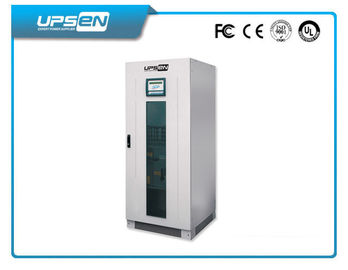

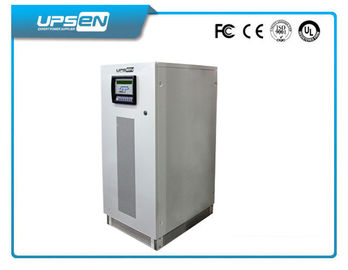

380V / 400V / 415V Low Frequency Online UPS 10KVA with LED / LCD Display

380V / 400V / 415V Low Frequency Online UPS 10KVA with LED / LCD Display
380V / 400V / 415V Low Frequency Online UPS 10KVA with LED / LCD Display 380V / 400V / 415V Low Frequency Online UPS 10KVA with LED / LCD Display

Large Image :  380V / 400V / 415V Low Frequency Online UPS 10KVA with LED / LCD Display

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: High Efficiency Star Series 10-200Kva
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Online Output Power Factor: 0.8
Phase: Three Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

high efficiency UPS

,

220V ups Power Supply



380V / 400V / 415V Low Frequency Online UPS 10KVA with LED / LCD Display

Model: Low Frequency Online UPS High Efficiency Strar Series HE33 10K-200K(3Ph in/3Ph out)





Low Frequency UPS Quick Overview



1: UPS with both LED and LCD Display
2: UPS with Three Phase 380/400/415Vac or 190/208/220Vac Input/Output
3: UPS with SNMP Card for UPS management and remotely monitoring

4: Input harmonic filter
5: Advanced digital circuit UPS Power system
6: EPO function for UPS





Key Features

1. Advanced digital circuit system

2. Intelligent management of batteries status

3. Intelligent inspect and monitor UPS systems every second

4. Intelligent communication tool remote control

5. The sixth generation IGBT inverter technology

6. High definition screen information management technology, humanity LCD display with Chinese and English, can show

    directly UPS status and operation, data records in table format, and events records, also can change language by main

    menu.

7. LED status shows operate steps and status directly.

8. HE33 Series UPS use touch screen with excellent ageing resistance function and case dealed with fluorin and carbon

    technology, lead it is environmental and durable; the UPS adopts knock-down modular design, ensure it easy to

    maintain and save resources much; It is with new advanced turbofan which can release heat well and save energy; It

    also use non-circumfluence controlled circuit, can save electric much; HE33 Series UPS adopts green commute and           inverter technology, ensure to provide clear energy for users; Its advanced digital circuit technology let whole UPS with

    80% more life than before.

9. Excellent load characters can fulfill with suddenly change load from 0 to 100%, and no need to invert to bypass, ensure

    output stable and reliable.

10. well-equipped protection function, including alarm function and excellent input and output Undervoltage overflow

      protection, input surge protection, phase failure protection, battery overcharge and over discharge protection, output

      overload short circuit protection, over heat protection and so on.

11. High quality active features, adopts instantaneous control method and virtual value response control and so on. This

      function realizes high active adjust and decrease output voltage degree of distortion.

12. Three phase can equal stable voltage and control separately, in order to control instantaneous overload degree of

      equal, realize output imbalance 100% load.

13. Optional input harmonic filter or Twelve-pulse rectifier, can restrain input harmonic pollution efficiently, improve UPS

      input power factor, and minish input harmonic current.

14. Optional battery inspection module, can test specification of every battery, and show on display. If battery faulty, will

      alarm immediately and notice administrators.

15. Special set: can set UPS work status according to requirements of electric. User can choose from UPS operate mode,

      ECO save energy operate mode and EPS operate mode.





Application

Middle and large data center, Telecom, Finance, Traffic, Defense, Medical, Education, Energy, Manufacture,

Industry, etc.





Technical Specification



High Efficiency Strar Series HE33 10K-200K
Model HE33 Series UPS
Capacity (VA) 10K 15K 20K 30K 40K 60K 80K 100K 120K 160K 200K
Noninal output capacity 8KW 12KW 16KW 24KW 32KW 48KW 64KW 80KW 96KW 128KW 160KW
Operate type Double conversion online type
Input Nominal voltage 220V/380, 230/400, 240/415V
Voltage Tolerance 380/400/415V±25%
Frequency 50Hz/60Hz±5%

Permitted Frequency

 Tolerance

±2% (selectable from ±1% to 5% from the front panel)
Soft start 0-100% in 30" (selectable)
Input power factor 0.95(with input filter)
Standard features Back Feed protection separable bypass line
  Phase Three phase +N+G
Output Voltage 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load)
Frequency 50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode)
Static stability ±5% in 19ms
Distortion Linear load <3%, non linear load<5%
Power factor 0.8
Output wave Pure sine wave
Crest factor 3:01
Battery voltage Standard battery voltage 384V 432V 480V
Floating charge 432V 486V 540
Terminal voltage 336V 378V 420V
Charge current 1A-50A (Can calculate and set according to battery configuration software)

Maximum Discharge

 Current

28 42 56 85 113 169 225 282 338 381 507
Main Function Active voltage change 0-100%±5%
Instant recover time <10ms
Imbalance voltage <±5%,<±1%( Balance load voltage)
Overload capacity 125%→10min,150%→1min
Static switch Automatic
Protection UPS over current, short circuit, battery low voltage, over heat
Cold method Compel aeration ( temperature control mode)
Noise 60-65dB
Display LED,LCD display
Remote signalling Voltage-free contacts
Remote commands EPO and bypass

Communication Port

(Optional)

double RS232 + remote contacts + 2 communication interface slots
Alarm Alarm with buzzer and indicators
Environment Temperature: 0-40C  Humidity: 0-90%





Competitive Advantages:


1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products
