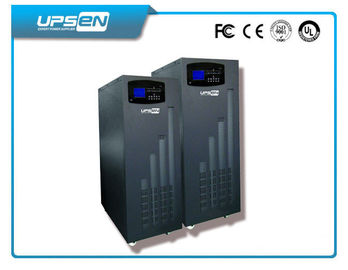

High Efficiency IGBT PWM 220V Single Phase UPS Systems 4.8KW / 6Kva Online UPS

High Efficiency IGBT PWM 220V Single Phase UPS Systems 4.8KW / 6Kva Online UPS
High Efficiency IGBT PWM 220V Single Phase UPS Systems 4.8KW / 6Kva Online UPS

Large Image :  High Efficiency IGBT PWM 220V Single Phase UPS Systems 4.8KW / 6Kva Online UPS

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: High Efficiency Star Series 10-40Kva
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Online Output Power Factor: 0.8
Phase: 1ph In/ 1ph Out Or 3ph In/1ph Out Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

industrial uninterrupted power supply

,

high efficiency UPS



High Efficiency IGBT PWM 220V Single Phase UPS Systems 4.8KW / 6Kva Online UPS

Model: Low Frequency Online UPS High Efficiency Star Series

             HE11 6-20KVA(1Ph in/1Ph out); HE31 10-40KVA(3Ph in/1Ph out)





Key Features

● Low Frequency Model, Support 1ph in/ 1ph out or 3ph in/1ph out AC Voltage, 50/60Hz power system.
● Pure-online double conversion technology, to provide the best quality of power supply.
● High level battery reliability. Automatic battery test
Battery care, Battery life span can be increased approximately by 20% more
Back feed protection: to avoid energy feeding back into the mains supply
. Bypass may be deactivated to allow operation as a frequency converter (at 50 or 60 Hz), or as stabiliser
Easy to maintain (front access)
Reliable, filtered, stabilised and regulated sine wave output (double on-line concersion technology VFI according to               EN50091-3 specifications) with filters for atmospheric disturbance suppression
High reliability: IGBT technology, full microprocessor control with no-break static and manual bypass
High level diagnostics: event log with 128 messages, states, measurements and alarms-available from the built-in               LCD in several languages
The UPS may be configured with the RS232 serial port (flash upgradable )





Application

Data management equipment and system
Automatic control systems
Hospital
Mini office system
Telecommunication systems
Bank

Industry





Technical Specification



High Efficiency Strar Series HE11 6K-15K, HE31 10-40K
Model  HE11 6-15KVA HE31 10-40KVA
 6KVA  8KVA 10KVA 15KVA 10KVA 15KVA 20KVA 30KVA 40KVA
Capacity  4.8KW  6.4KW 8KW 12KW 8KW 12KW 16KW 24KW 32KW
Rated voltage  220V single phase 380V three phase 4 wires+G
Rated frequency  50/60HZ
AC input
Voltage range  220V±25% single phase 380V±25% three phase 4 wires+G
Frequency range  50/60HZ±5%
Soft strat  0-100%   5sec
Power factor  >0.92(with input filter)
Bypass input
Voltage range  220V±25% singke phase 380V±25% three phase 4 wires+G
Frequency range  50/60HZ±10%
Inverter bypass  (overload)0ms
Output
Voltage accuracy  220V±1%(steady-state load),220V±3%(load fluctuations)
Frequency accuracy  50/60Hz±0.05Hz(battery power)
Power factor  0.8(lagging)
Distortion  <3%(linear load), <5%(non linear load)
Steady-state response time  <10ms
Overload capacity  110%load can run normally  125%10min  150%1min
Battery
Nominal voltage  192V 360V
Float voltage  216V 405V
Cut-off voltage  168V 315V
Charger current  1A-50A(According to the battery capacity can be set configuration)
Other
Display  LEDLCD
Alarm  Sound and light alarm
Protection  UPS over current,short circuit,under voltage,over temperature
Environment
Noise  60-65dB
Operating  Temperature0-40°C    Relative humidity 0-90%
Box color  Gray (optional)
Physical
 Wight  Net  122 125 143 175 182.5 235.5 285.5 354.8 354.8
 (KG)   Gross  142 147 163 199 225.5 268.5 325.2 389.5 389.5
Dimesions         W×D×H(mm) 210×600×560 305×586×850 350×675×920
*Specification is subject to change without prior notice.





Competitive Advantages:


1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products
