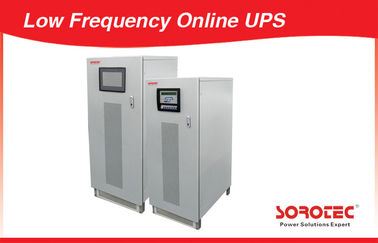

Low Frequency Online UPS GP9332C 10-120KVA (3Ph in/3Ph out)

Low Frequency Online UPS GP9332C 10-120KVA (3Ph in/3Ph out)
Low Frequency Online UPS GP9332C 10-120KVA (3Ph in/3Ph out)

Large Image :  Low Frequency Online UPS GP9332C 10-120KVA (3Ph in/3Ph out)

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: GP9332C 10 - 200KVA
Payment & Shipping Terms:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Detailed Product Description
Nominal Voltage: 380/400/415VAC 3-phase Voltage Tolerance: 400V + 20%/ -25%
Frequency: 45 ÷ 65 Hz Soft Start: 0 ÷ 100% In 30’’ (selectable)
Standard Features: Back Feed Protection; Separable Bypass Line Type: Lead, Flooded And VRLA AGM / GEL; NiCd
AC Ripple: < 1% Temperature Compensation: -0.5V × ℃
Typical Charging Current: 0.2 × C10 Nominal Voltage: 380/400/415VAC 3-phase +N
High Light:

uninterrupted power supplies

,

pure sine wave ups

Low Frequency Online UPS GP9332C 10-120KVA (3Ph in/3Ph out)



Key Features:
1. Advanced operation mode


2. DSP control


3. Double CPU control


4. Modularize


5. Battery can be sharing


6. Up to 8 units in parallel


7. Manual maintenance bypass


8. Wide input voltage range


7. High output power factor


9. Strong environmental adaptability


10. Advanced battery management


11. N+X parallel redundancy


12. Compatible with generator


13. Strong shock resistance ability


14. EPO function


15. Full protection against over-discharge, overcharge, over load.





LBS function:
LBS function supports the two independent input to improve the reliability of the system.




High reliability:
True on-line static bypass technology, to provide strong overload and fault protection device.
Internal manual maintenance bypass, further improve the reliability of continuous operation of the load.




Network management humanity:
Communicate with PC by RS232.
Use SNMP adapter, UPS can realize remote network management function.




Optimized battery performance:
Intelligent battery management function (ABM)
Automatically convert to constant-current constant-voltage charging technology.




Parallel Configuration of up to 8 units of Low Frequency Online UPS GP9332C 10-120KVA:
Can parallel 8 units UPS;
Parallel UPS units can share a battery pack;
Non-fixed master/slave parallel
Low Frequency Online UPS GP9332C 10-120KVA (3Ph in/3Ph out) 0



Application:
large-medium computer data center, industrial process and other mission-critical equipment


Technical Specifications of Online UPS GP9332C 10-120KVA


Model

GP9332C 10-200KVA

Rated Power (KVA)

10KVA

15KVA

20KVA

30KVA

40KVA

60KVA

80KVA

100KVA

120KVA

Active Power (KW)

8KW

12KW

16KW

24KW

32KW

48KW

64KW

80KW

90KW

Input

Nominal Voltage

380/400/415VAC 3-phase

Voltage tolerance

400V + 20%/ -25%

Frequency

45 ÷ 65 Hz

Soft Start

0 ÷ 100% in 30’’ (selectable)

Permitted frequency tolerance

± 2% (selectable from ± 1% to ± 5% from the front panel)

Standard features

Back Feed protection; separable bypass line

Battery

Type

Lead, flooded and VRLA  AGM / GEL; NiCd

AC ripple

< 1%

Temperature compensation

-0.5V × ℃

Typical charging current

0.2 × C10

Output

Number of phase

3 + N

Nominal voltage

380/400/415VAC 3-phase +N

Static stability

± 1%

Dynamic stability

± 5% in 10ms

Voltage distortion

<1% with linear load ; < 3% with no-Linear load

Crest factor (lpeak/1rms)

3:1

Frequency stability on battery mode

0.05%

Frequency

50 or 60Hz (selectable)

Overload

110% for 60’ ; 125% for 10’; 150% for 1’

Environment

Remote signaling

Voltage-free contacts

Remote commands

EPO and bypass

Communication

Double RS232 + remote contacts +2 communication interface slots

Operating Temperature

0 ℃ / + 40 ℃

Relative humidity

< 95% non condensing

Colour

Light grey RAL 7035

Noise

54

60

62

63 ÷ 68 dBA at 1m

Protection rating

IP20

Efficiency Smart Mode

Up to 98%

Compliance

European Directives: LV 2006/95/CE; EMC 2004/108/EC; Saftety IEC EN 62040-1;EMC IEC EN 62040-2 C2

Classification according to IEC 62040-3

(Voltage Frequency Independent) VFI –SS - 111

Physical parameters

Weight (kg)      without batteries

210

220

230

280

330

450

600

640

650

Dimension     (h×w×d) (mm)

1400 × 555

× 740

1400 × 800

× 740

1900 × 800

× 800

Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2  GB/17626.2~5/IEC61000-4-2~5     SAFETY:GB4943
Note: Product specifications are subject to change without further notice
